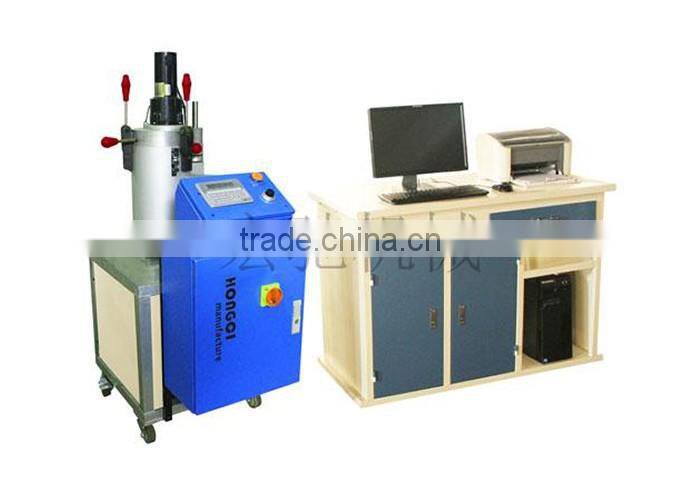

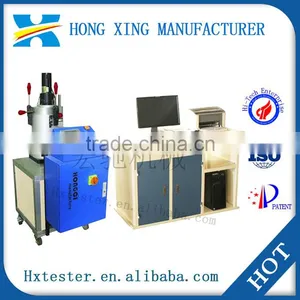

Asphalt mixture rotary compactor with SIEMENS control system
Product has obtained the national utility model patent, patent name: asphalt prototype, patent No.: ZL 2013208272804;
Equipment model | HCSY-3 |
| Voltage | 220VAC |
| Size | 500×750×1400cm |
| Height | 1.4m |
| Set pressure | 600Kpa(±18kpa) |
| Rotation angle | 0.5-1.5°adjustable |
| Die diameter | 150mm |
| Rotation number of each test | 1-300 |
| Rotation number ratio | 30rpm |
| Data acquisition | Sample height after each rotation |
The company developed the asphalt gyratory compactor, with has the advantages of simple structure, easy to move, high degree of automation, and is also provided with a beautiful interface, convenient control software, using the full set of control system of Siemens, Caixian touch microcomputer control, can be directly connected with the computer, data can be directly stored in the computer, the support Windows system can realize each highly compacted data automatic acquisition, and the density of the data is analyzed, it is convenient to save and print compaction test report. Users can also use the powerful function of Excel, the data for further analysis and processing. Compaction data acquisition can be in the beginning of the test, the test process, after the end of the test data collection, the software automatically will be compacted in the current test data acquisition. Using high precision sensor imported from Germany, designed for industrial applications, accurate and reliable. Can easily set the rotation and compaction pressure, rotation speed, rotation frequency and other test parameters, automatically perform the test to get the data, generate the document. The instrument adopts the high hardness stainless steel frame, the hydraulic lifting up material, the test sample is independent of the material mechanism. 80mm driving hydraulic cylinder, Taiwan seal seal, ensure that the oil cylinder of excellent operation, in full compliance with the national industry standard JTGE20-2011 the highway in the process of asphalt and asphalt mixture test rules "in the asphalt mixture material gyratory compaction specimen preparation method (SGC).
Similar Products
| | |
Our Catalogue
| Revolving drum | Pelletizer | Lime testing equipment | Drying Equipment |
| Crushing Equipment | Sampling and Sample Preparation Equipment | Sieving Equipment | Iron Ores Performance Testing Equipments |
| Coke, Coal, Carbon Testing Equipment | Steel Product Testing Equipment | Accessories |
If you have any interest in them, please contact us.
click here go to homepage
We have got ISO certificate for our main product to guarantee equipments quality, and we have a total of 34 national patents, including 5 invention patents, 28 utility model patents, 1 design patents
1.Shangyu Hongxing machinery equipment manufacturing Co.,Ltd,with more than 20 years history, we are one of the leading professional manufacturer of coal, coke, iron ore, steel testing equipment in China. We have got ISO certificate for our main product to guarantee equipments quality.
2.Our main products includes: iron ore testing equipment, coke testing equipment, steel testing equipment, drying equipment, crushing equipment , sampling and preparing equipment etc.
3.We have our own r&d team, according to the latest standards, through our own development software, realize the automation of equipment and computer control, to improve test efficiency and reduce human error.
4.Our advantages are providing professional testing process solution, complete set equipments and after-sale service for lab testing.
5.We are the iron ore and direct reduced iron standardization technical committee member units in China. Also, the national coal standardization technology committee member units in China.
6.main market is in Africa, southeast Asia, Asia, Middle East, etc.
We sincerely provide below services:
-Lab project processing consulting
-Do testing for coke, iron ore, steel processing in laboratory
-OEM is acceptable, Products can be customized according to customer requirements
-Help you to solve the problems during the equipment operation.
-Spare parts provided
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training workers.
