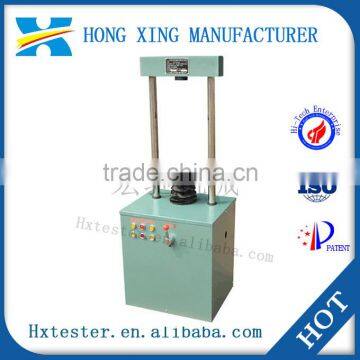

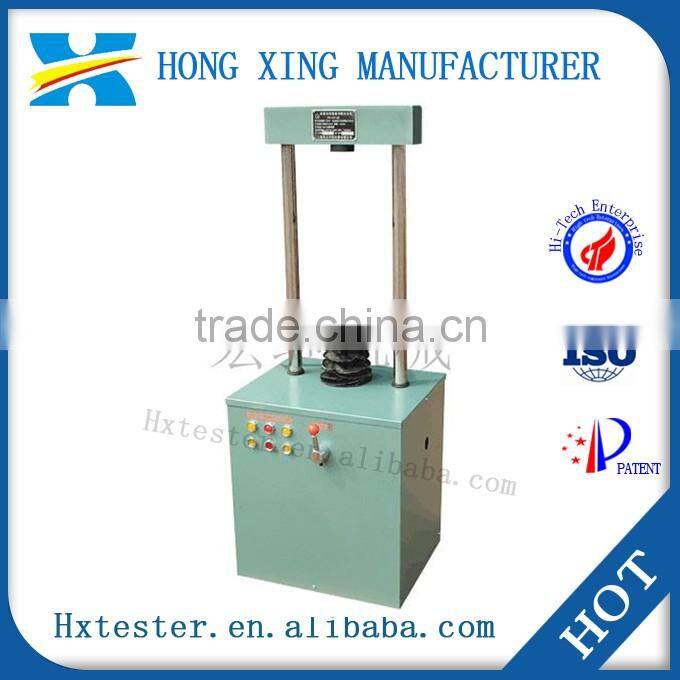

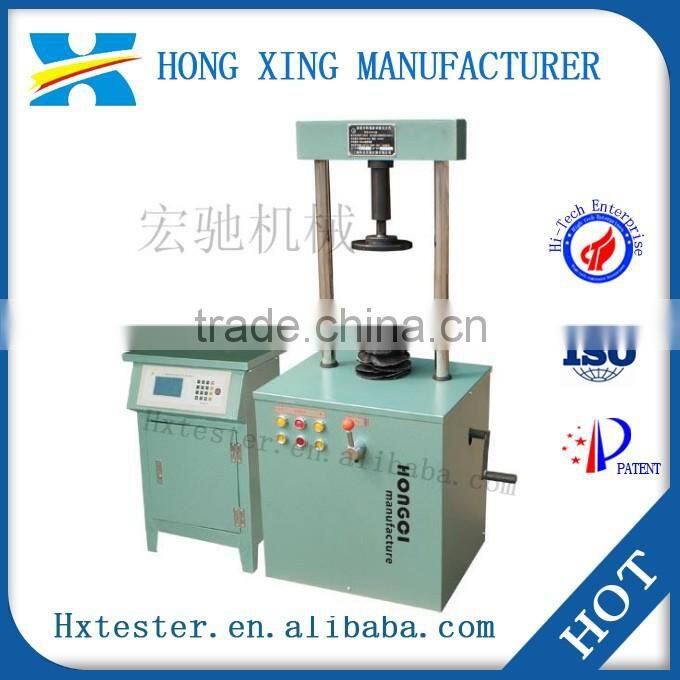

Pull test machine for laboratory, material strength tester tension test machine
Maximum rated load | 100KN |
Maximum moving distance of screw plate lifting | 200mm |
Motor speed | Fast 50mm/min, slow 1mm/min |
Manual speed | 1/6mm/ handle each circle |
Motor specifications | 550W, 380V, 1400 rev / min |
Overall size (L * w * h) | 508*430*1390mm |
Introduction
Pavement material strength tester host is a multifunctional highway subgrade, pavement materials testing instrument, using a variety of instruments and accessories to measure many kinds of binder stabilized soil test piece of unconfined compressive strength, indirect tensile strength, splitting test) was used to determine the soil and surface material bearing ratio, determination of asphalt mixture thermal stability and resistance to plastic flow performance, stability and flow value, but also need to apply the vertical load test for a variety of other.
The machine with the Ministry of communications of the people's Republic of China issued by the JTJ051-93 highway geotechnical test procedures and JTJ058-94 highway engineering set test procedures of technical material fully consistent with the requirements, and compact design, good rigidity, by mechanical transmission, reliable and durable, operation button can be motorized and manual dual-purpose, leveling the top tray automatic leveling up and down, limiting device, transmission screw rod outer part of a protective cover, in use without screw super prolapse and foreign bodies Casey screws patients.
