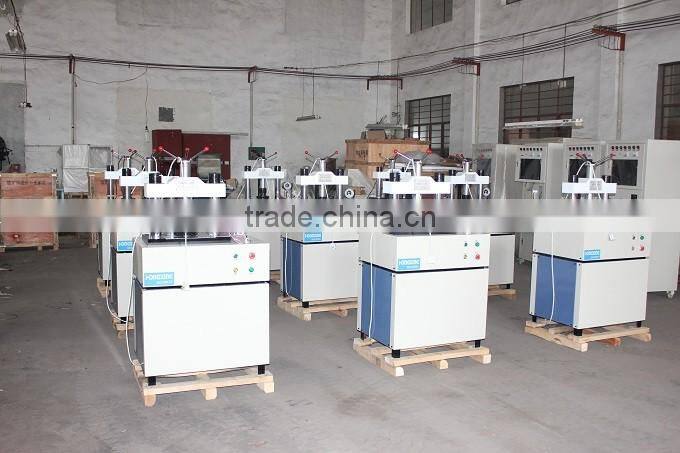

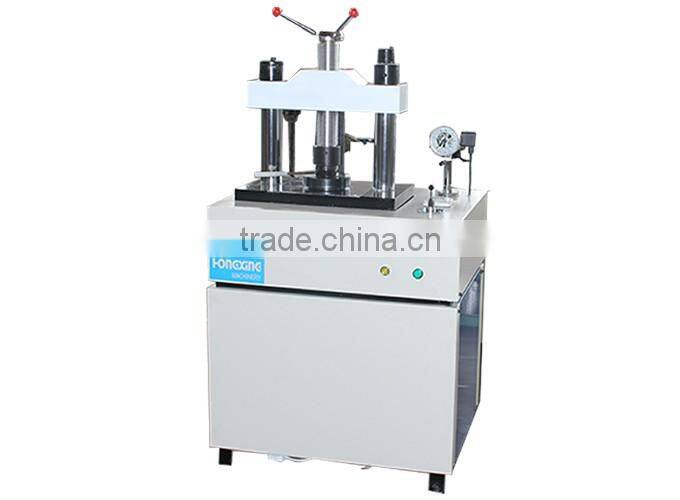

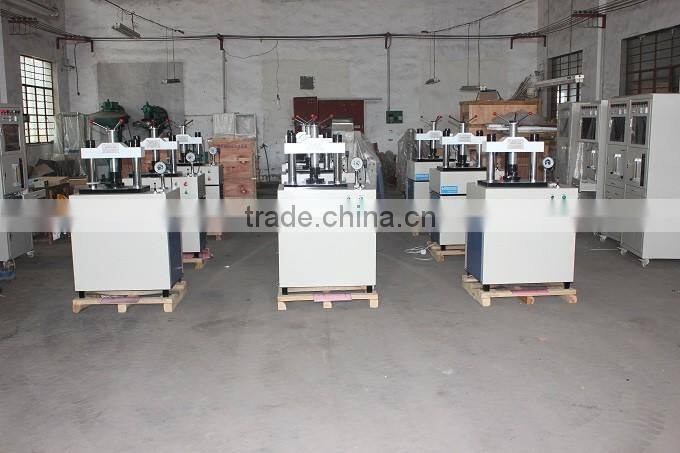

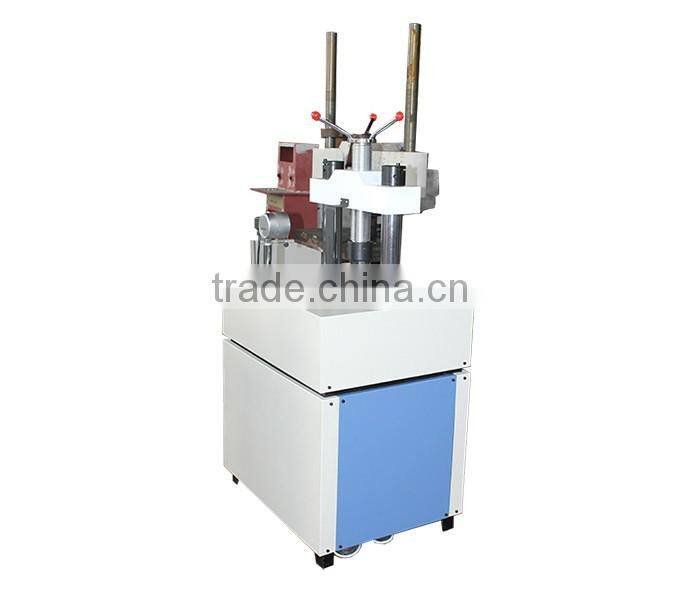

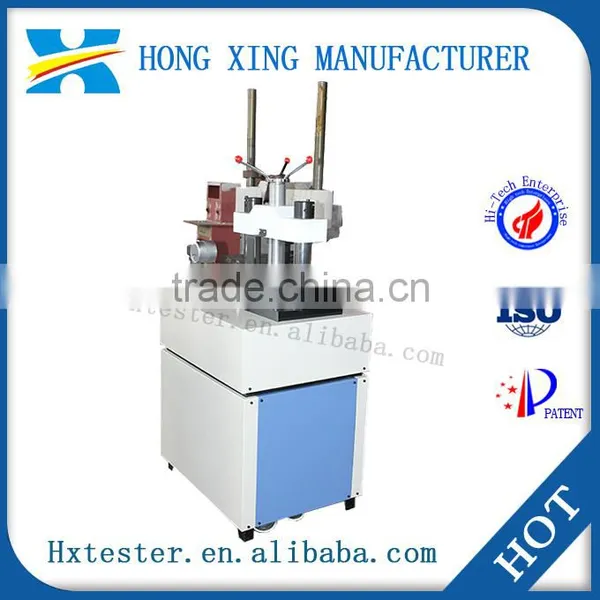

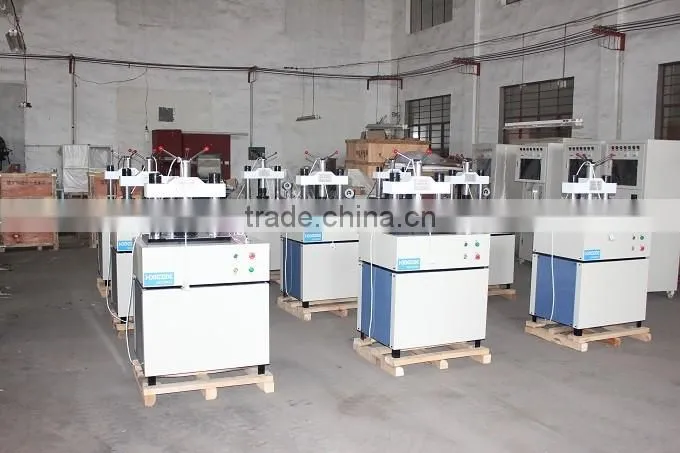

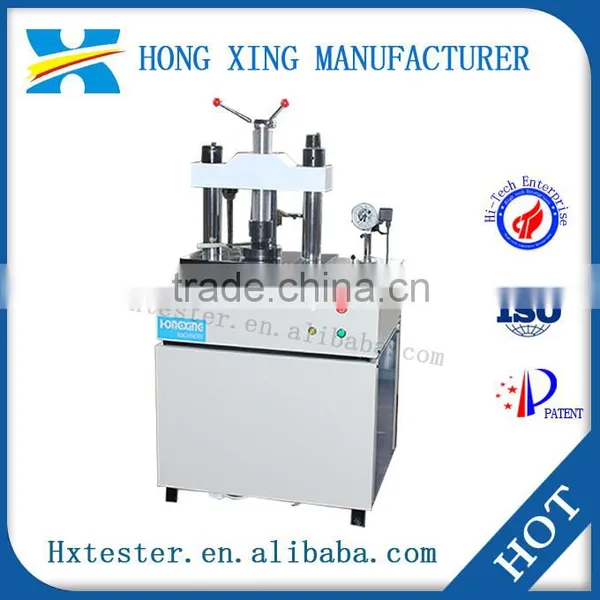

40T60T spectral analysis prototype tablet/press pressure/spectrum analyzer equipment
Maximum pressure: | 40 tons |
The holding time: | 0-999 seconds |
Range: | 100 mm (50 mm) |
The column opening: | 220 mm |
High machine dimension | 0.8 * 0.5 * 0.5 (m) |
Machine net weight about: | 380 kg |
Power supply | AC380V three-phase |
Power | 1.1 KW |
HXYYJ - 40 prototype is for metallurgy, nonferrous metals, mining, cement, ceramics, electronic materials and other fields for composition analysis to press the powder into the specimens, for X-ray spectrometers sample machine. Because the X-ray spectrum analyzer is very strict to the requirement of sample preparation, so you need to produce large and stable pressure, pressure prototype to ensure the normal work of the X-ray spectrum analyzer.HXYYJ - 40 prototype is the ideal equipment.
Working principle:
When activated, a relay ZJ2, C1. The solenoid valve drive circuit open Y1 motor drives the pump oil pressure is produced, because the electromagnetic valve Y1 is opened, the piston in the upward movement of the cylinder. When the punch on the piston rod to the vertex, the pressure control electric contact pressure gauge, relay ZJ3, the motor stops working. The time relay SJ1, this time for holding pressure. When the time relay to achieve the set time, the relay SJ2, ZJ4 solenoid valve Y2 opened, the cylinder piston down. The stroke of the piston falls by the time relay SJ2 set
