Home > Products > Measurement & Analysis Instruments > High Quality Electric Scale 40 Ton Weighing Scale
High Quality Electric Scale 40 Ton Weighing Scale
- 1000000 Piece / Pieces per Month
- Tianjin
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | Yongte | Model Number: | OCS |
Type: | Crane Scale | Power Supply: | Built-in Battery | Display Type: | LED |
Rated Load: | 10T | Accuracy: | 1g~10g |
Product Description
High Quality Electric Scale 40 Ton Weighing Scale
Capacity:2T,3T,5T,10T,15T,20T
Material:Stainless steel,Alloy steel
Specification
MODEL | Max. capacity(kg) | Min. weigh(kg) | Division(kg) | Total dispay counts(n) |
OCS-SL-2 | 2000 | 20 | 1 | 2000 |
OCS-SL-3 | 3000 | 20 | 1 | 3000 |
OCS-SL-5 | 5000 | 40 | 2 | 2500 |
OCS-SL-10 | 10000 | 100 | 5 | 3000 |
OCS-SL-15 | 15000 | 200 | 5 | 3000 |
OCS-SL-20 | 20000 | 200 | 10 | 2000 |
Standard | According to OIML class III |
Display | 30mm (1.2’’) 5digits LCD/LED |
Zero Range | 4% F.S. |
Tare Range | 100% F.S. |
Stable Time | ≤10seconds |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 125% F.S. |
Ultimate Load | 400% F.S. |
Battery Life | ≥50 hours |
Battery Type | Fully sealed Lead-Acid battery, 6V/4.5Ah |
Adapter | DC9V/1000mA |
Operating Humidity | ≤85% RH under 20℃ |
Remote Controller Distance | Min. 15m |
Battery of Remote Controller | AAA battery, 1.5V×2 |
MODEL | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W.(kg) |
---|---|---|---|---|---|---|---|
OCS-SL-2 | 95 | 260 | 33 | 195 | 135 | 430 | 10.5 |
OCS-SL-3 | 95 | 260 | 40 | 195 | 135 | 455 | 11.5 |
OCS-SL-5 | 120 | 325 | 50 | 240 | 165 | 535 | 17.5 |
OCS-SL-10 | 124 | 325 | 60 | 240 | 165 | 660 | 27.5 |
OCS-SL-15 | 225 | 345 | 70 | 240 | 165 | 855 | 49 |
OCS-SL-20 | 225 | 345 | 85 | 240 | 165 | 920 | 56 |

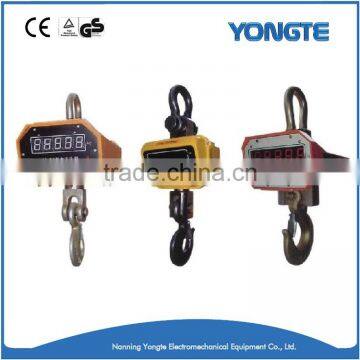

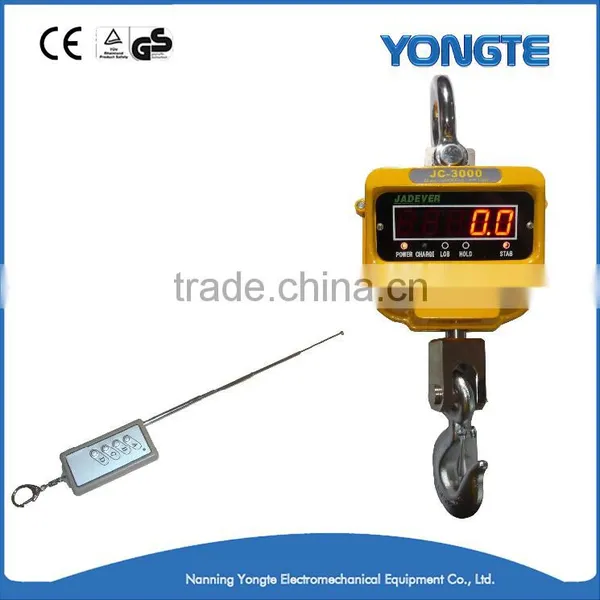

Product Picture
uSuperior quality
uCompetitive price
uExcellent service
uShort lead time
uMost of the items stock are available
Yongte is a company with superior quality, competitive price, excellent service. Founded in 2003, located in the capital of Guangxi Zhuang Autonomous Region--Green city Nanning. Our products include lashing equipment, material equipment, hardware and many others.The company's products serve a wide variety of commecial and industrial applications that require the safety and quality provided. We only offer the best products with best quality to customers.
1.What information should I let you know if I want to get a quotation?
1. Lifting capacity.
2. Size.
3. Would be better if you have drawings of your plant.
2.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place
the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
3.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most
convenient or cost effective for you .
4.Which payment terms will you receive ?
T/T, L/C, Western Union, Paypal
5.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.
All products will be well packed before shipping .
6.How long is the warranty ?
The whole machine of all our products have 12 months warranty , and we sure the
product will be free from maintenance within warranty period .Low charge for
continue maintenance when warranty is expired.
