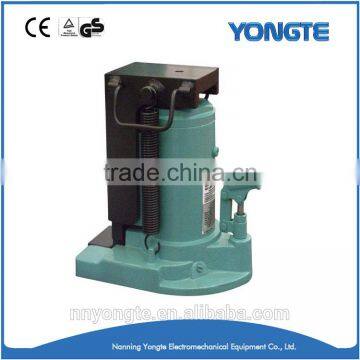

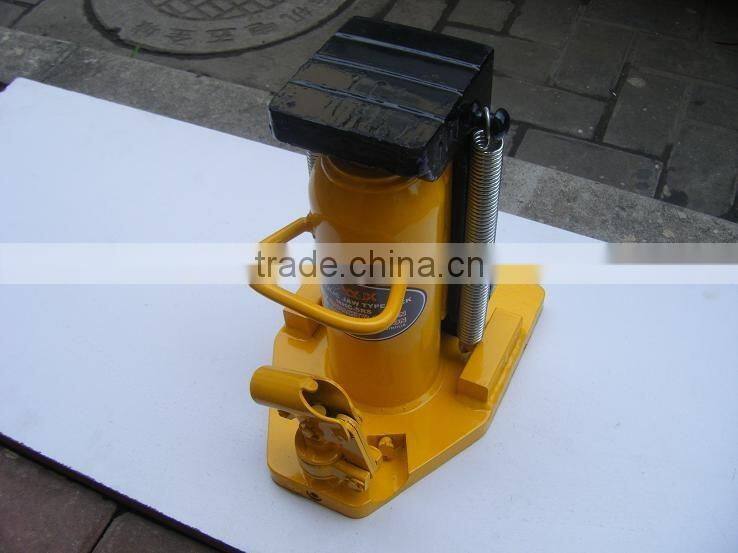

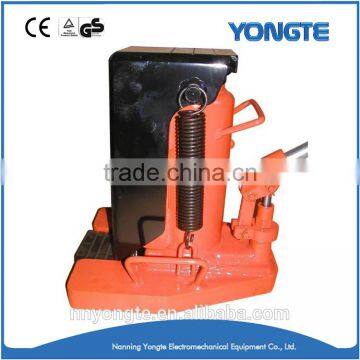

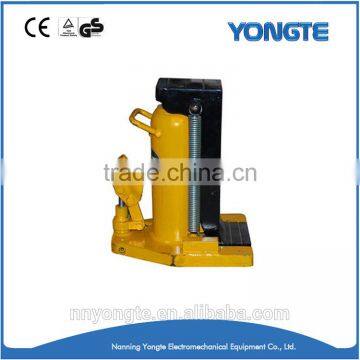

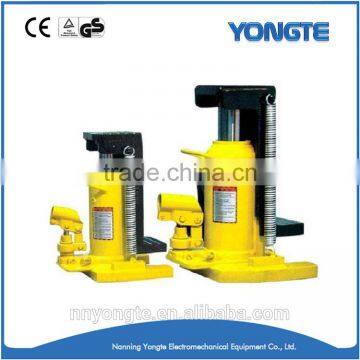

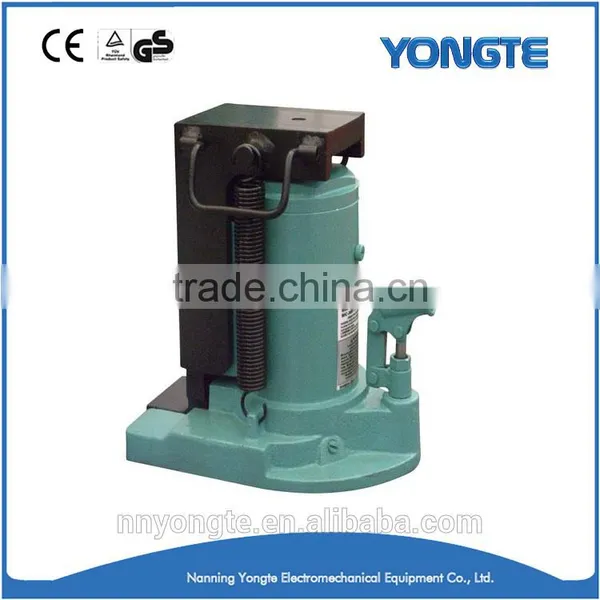

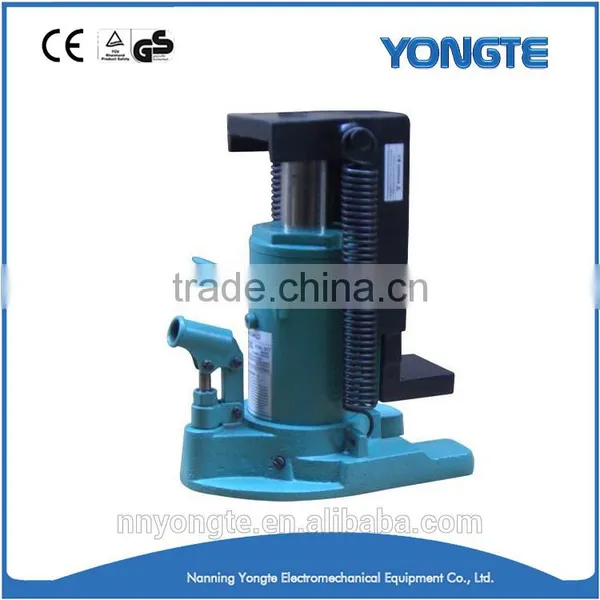

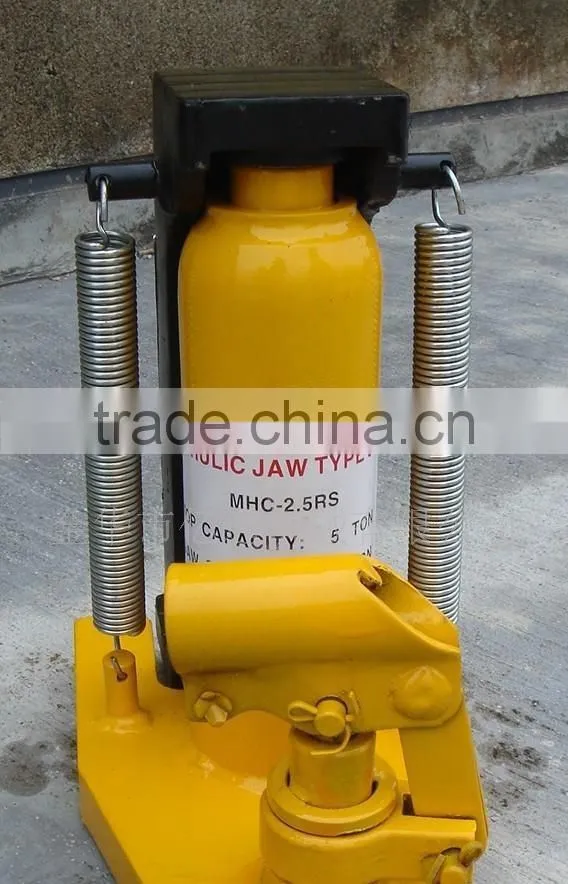

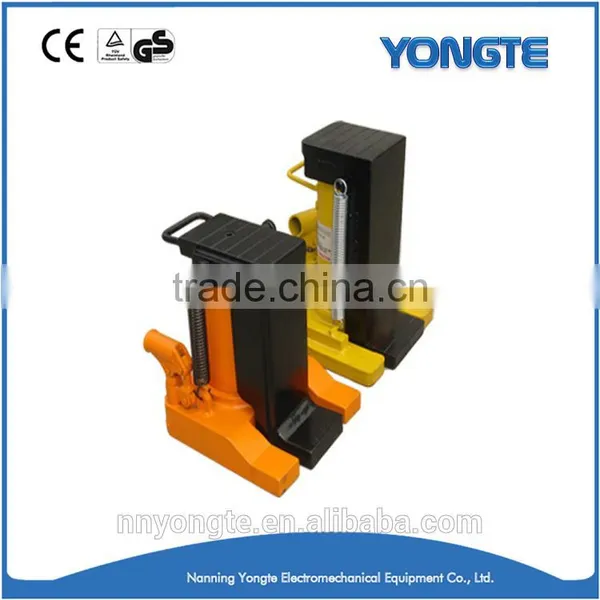

Small Manual Hydraulic Hand Industrial Toe Jack
Secifications
1. Designed for lifting loads with very low minimum clearances (foot)or high clearances(head).
2. Ideal for house moving,machinery installation and application at shipyard,bridge building or plant constuction sites.
3. Great companion tool for machinery type rollers.
4. Convenient 200 1/2 swivel socket for easy operation in any direction on 5 and 10 ton models.
5. Safety value for overload protection.
6. Features spring assisted return and over-travel protection on 5 or 10 ton models.
7. Ram is made of heart treated special steel to resist rust and assure strength.
8. Electrically welded base and cylinders to assure strength.
9. Not affected by temperature extremes.
10. Pump handle includes.
Technical Parameters
| Model | Rated Capacity | Min. Toe Height (mm) | LiftingStroke(mm) | Base Size(LXW)(mm) | Toe Size (LXW) | Overall Height (mm) | Net Weight (kg) |
| (TON) | mm | ||||||
| YT-2.5 | 2.5 | 25 | 110 | 203×140 | 48×64 | 234 | 14 |
| YT-5 | 5 | 25 | 137 | 250×194 | 60×99 | 280 | 23 |
| YT-10 | 10 | 25 | 136 | 281×210 | 62×115 | 320 | 34 |
| YT-15 | 15 | 35 | 136 | 297×248 | 64×128 | 350 | 50 |
| YT-25 | 25 | 40 | 136 | 330×280 | 64×128 | 354 | 72 |
uSuperior quality
uCompetitive price
uExcellent service
uShort lead time
uMost of the items stock are available
Packaging Details:
Inner color box, outer strong shipping carton
According to Customers Requirments
Shipping:
- TNT, UPS, DHL, FEDEX
- by air
- by sea
Nanning Yongte Electromechanical Equipment Co., Ltd. is a company with superior quality, competitive price, excellent service. Found in 2003, located in the capital of Guangxi Zhuang Autonomous Region--Green city Nanning. Our products include Machinery Industry, Hardware Industry, Tool Industry, Lifting Equipment, Lashing Equipment, Material Equipment and many others. The company's products serve a wide variety of commecial and industrial applications that require the safety and quality provided. We only offer the best products with best quality to customers.
1.What information should I let you know if I want to get a quotation?
1. Lifting capacity.
2. Size.
3. Power supply: Voltage.
4. Would be better if you have drawings of your plant.
2.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
3.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost
effective for you .
4.Which payment terms will you receive ?
T/T, Western Union, Paypal
5.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing. All
products will be well packed before shipping .
