Home > Products > 59 Pneumatic & Electrical Tools > High Effcient Electric Industrial Portable Ventilation Fans With Little Noise

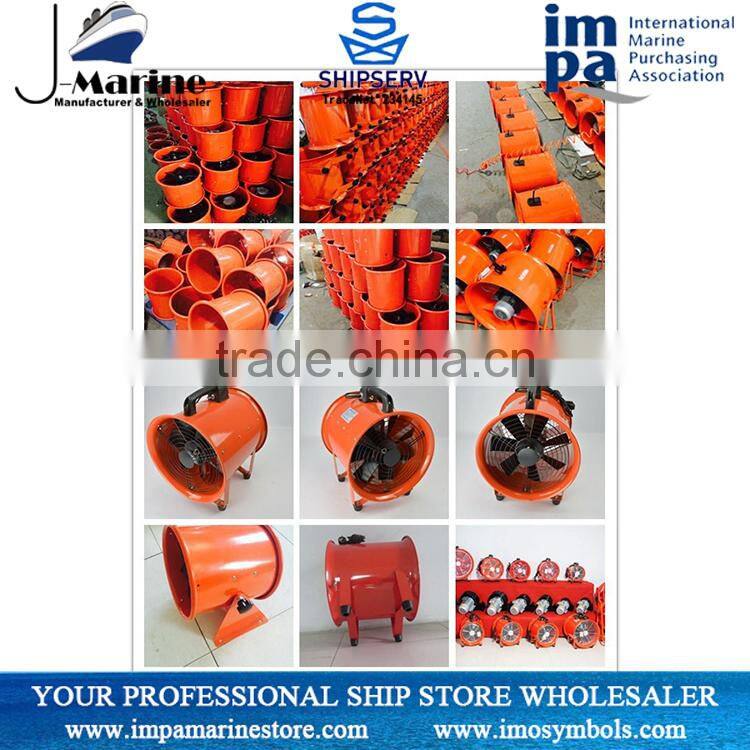

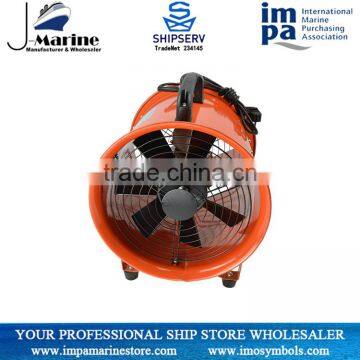

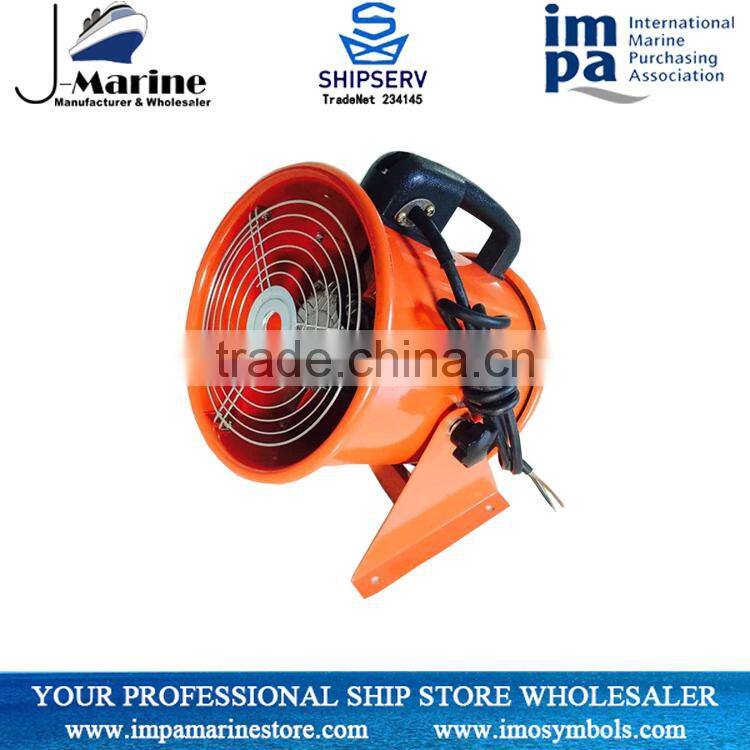

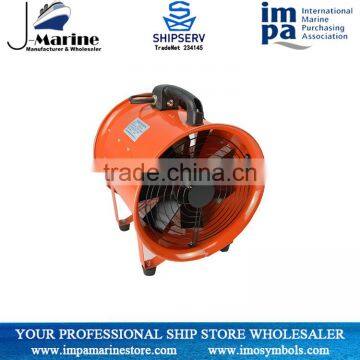

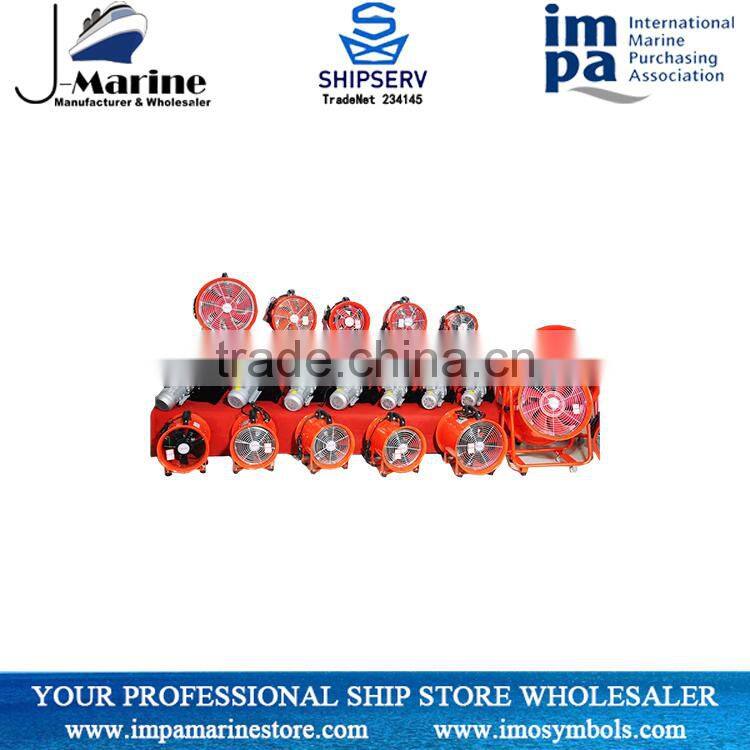

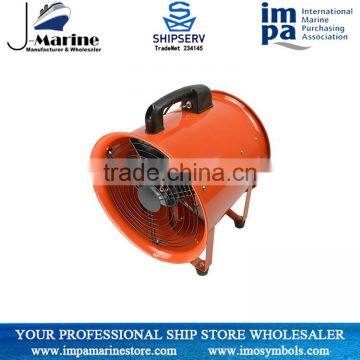

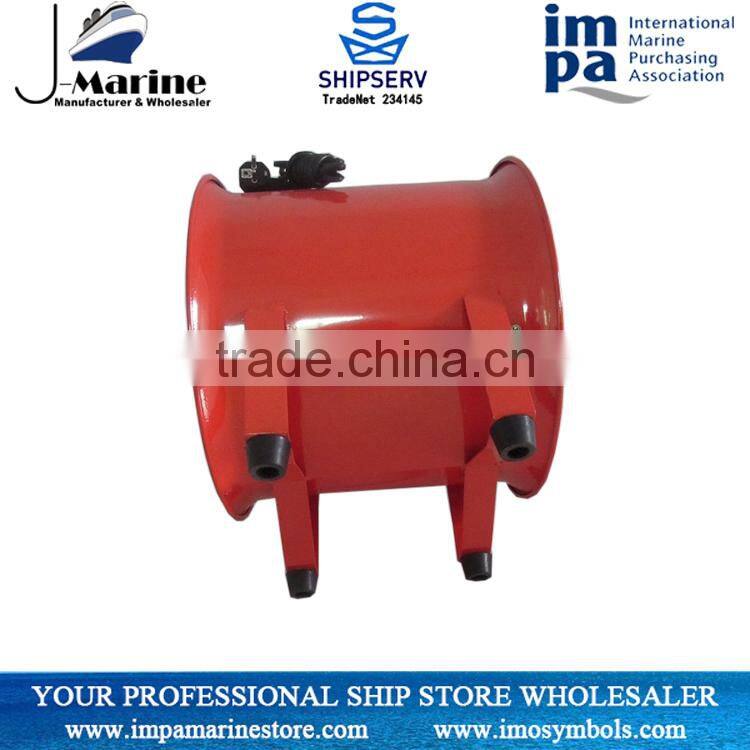

High Effcient Electric Industrial Portable Ventilation Fans With Little Noise
- Ningbo
- T/T L/C Credit Card
You May Like
-
Flexible Marine Wholesale Spiral Ventilation Tubes in PVC
-
Large Marine Use Electric Deck Scaler KC-120
-
Marine Electrical Scaling Machines and Accessories Of KC-50
-
pneumatic scaling Hammers for marine use
-
Marine Wholesale Water Driven Turbine Ventilation Fans In Industry
-
Industry Air Driven Pneuamtic Scaling machines KC-60 for sale
Product Details
| Electric Current Type | AC | Blade Material | Plastic | |
| Mounting | Free Standing | Place of Origin | Zhejiang, China | |
| Brand Name | JM | Model Number | 591401 | |
| Power | 96W-3.7KW | Voltage | 110v /220v | |
| Air Volume | 20m³/min-190m³/min | Certification | Other |
Product Description
Specifications
1>Highly efficient and portable.
2>Used for ship close space entry preventilation.
3>Portable ventilation fan
Highly efficient and portable. Used to ventilate hot air and harmful gases from a tank or work area,and supply fresh air and oxygen.the ideal bellmouth type casing is highly efficient,creates little noise and is easy to install in an air duct.Related air ducts are sold separately.
Electric Portable Ventilation Fan IMPA code:591401-09
| AC 110v ±10% |
| AC 220v±10% | |||
| CODE | Case dia | Phase | CODE | Case dia | Phase |
| 591401 | 142mm | single | 591406 | 200mm | single |
| 591402 | 200mm | single | 591407 | 280mm | single |
| 591403 | 280/300mm | single | 591408 | 400mm | triple |
| 591409 | 500mm | triple |
| Specifications | |||||
| casing dian | 142φ | 200φ | 280φ | 400φ | 500φ |
| Electric Source | 100V 1P | 100V 1P 200V 1P | 100V 1P 200V 1P | 200V 3P | 200V 3P |
| Air volume | 20m³/min | 20m³/min | 70m³/min | 110m³/min | 190m³/min |
| Pressure | 40mm Aq | 25mm Aq | 30mm Aq | 50mm Aq | 70mm Aq |
| R.P.M. | 2000 7000 | 3000 3600 | 3000 3600 | 3000 3600 | 3000 3600 |
| Output | 96W | 155W | 0.55KW | 1.5KW | 3.7KW |
| Weight | 2kgs | 9kgs | 18kgs | 35kgs | 64kgs |
| Standad Accessory | speed control switch | Motor breaker switch | Unfurnished | ||
| cabtyre cable 1mtr | Cabtyre Cable 3mtr | ||||
Packing: 1 set/ carton box or 1set/ wooden box, also can be packed as your requirements.
Delivery and Payment
Shipment | fedex,DHL,EMS,UPS |
Shipping Port | Ningbo/Shanghai |
Delivery | A Send by Courier Express—Swift delivery ( 4-7working days) |
| B Send by Air: Arrive at destination Airport ( need you to pick it up ) |
| C Ship by Sea : Low shipping cost and slow delivery ( Around 15- 30 days) |
Payment Terms | T/T,Western Union,L/C |
WHAT MAKES J-MARINE DIFFERENT THAN ANY OTHER COMPANY?
- 1. High quality products & service
- 2. Loyalty towards customers
- 3. One of the major suppliers in marine industry
CUSTOM ORDER? WE GOT IT!
If you want to discuss custom order, please contact our seller blow. We look forward to establish successful business relationships with new clients around the World.
J-Marine established in 2010, with office located in Hongxing Road NO.2, building 16, Jiangbei District,Ningbo city, Zhejiang Province, China. Commits to the business of marine store wholesale. Have been and always will be loyal to the customers who are service ship- chandler, located near port of Ningbo, hence provides us to deliver your order more effectively. Professional production: IMO symbols, safety & training poster, navigation equipment, recording paper, Merchant flag.
Contact Us
- Ningbo J-Marine Co., Ltd.
- Contact namejason chen Chat Now
- Phone86-574-87073861
- AddressNo.2 Hongxing road, jiangbei district, ningbo city, zhejiang province ,PR China., Ningbo, Zhejiang
