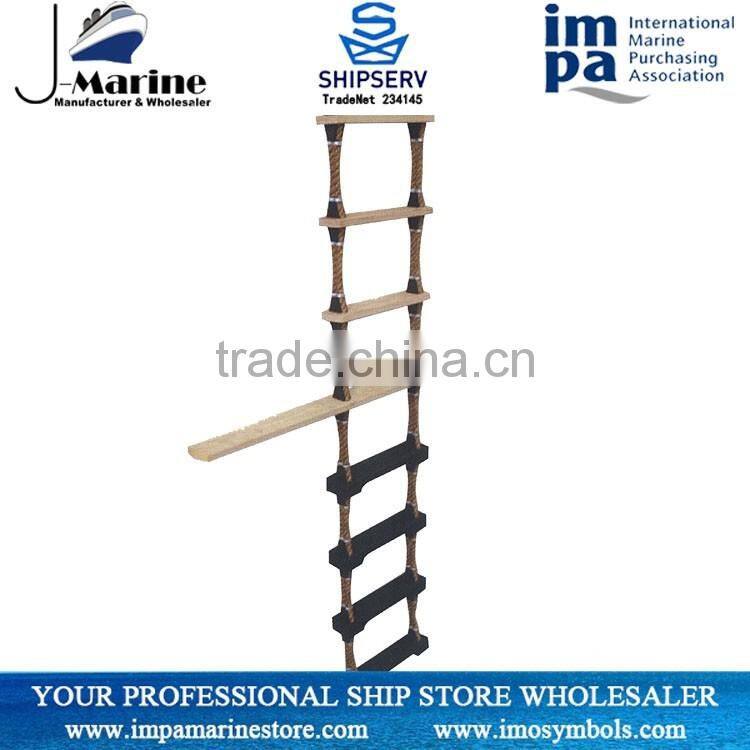

Solas Approved Wooden Ship Pilot Ladder
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JM or OEM | |
| Material | Other, wooden | Feature | Folding Ladders | |
| Type | Industrial Ladders | Structure | Ladder Stools |
Product Description
1. Equipped in the embarking place of the life raft and boat, for pilots to board and leave the vessels.
2. In accordance with the 2000 Amendments to SOLAS 1974 and LSA.

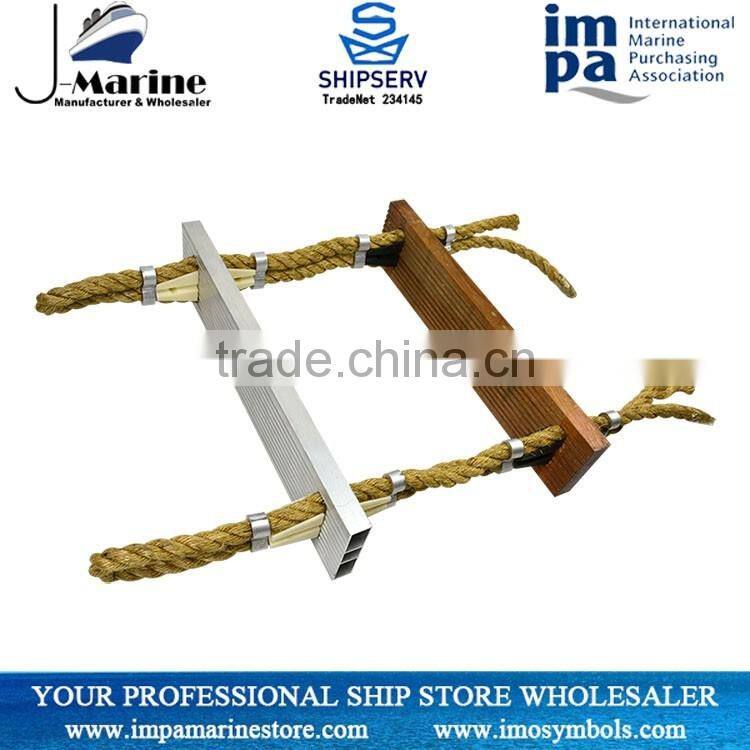

3.The lowest 4 steps are rubber plates with steel lining; The count- down fifth plate is spreader step, and there are 8 short boards between two neighboring spreader steps;
The distance between two neighboring steps :310 ± 5 mm.
4. Position of preventer steps correspond to the total number of pilot ladder step
Type A
| CODE | Length |
| 232001 | 6mtr |
| 232002 | 9mtr |
| 232005JM | 10mtr |
| 232003JM | 12mtr |
| 232004JM | 15mtr |
Type B
| CODE | Length |
| 232001B | 6mtr |
| 232002B | 9mtr |
| 232005BJM | 10mtr |
| 232003BJM | 12mtr |
| 232004BJM | 15mtr |
| No.of Steps | The position of Preventer Steps | No.of Steps | The position of Preventer Steps |
| 6 | 5 | 19 | 5,14 |
| 7 | 5 | 20 | 5,14 |
| 8 | 5 | 21 | 5,14 |
| 9 | 5 | 22 | 5,14 |
| 10 | 5 | 23 | 5,14,21 |
| 11 | 5 | 24 | 5,14,21 |
| 12 | 5 | 25 | 5,14,21 |
| 13 | 5 | 26 | 5,14,21 |
| 14 | 5,12 | 27 | 5,14,21 |
| 15 | 5,13 | 28 | 5,14,21 |
| 16 | 5,14 | 29 | 5,14,21 |
| 17 | 5,14 | 30 | 5,14,21 |
| 18 | 5,14 |
Packing: 1 set/ carton box or 1set/ wooden box, also can be packed as your requirements.
Delivery and Payment
Shipment | fedex,DHL,EMS,UPS |
Shipping Port | Ningbo/Shanghai |
Delivery | A Send by Courier Express—Swift delivery ( 4-7working days) |
| B Send by Air: Arrive at destination Airport ( need you to pick it up ) |
| C Ship by Sea : Low shipping cost and slow delivery ( Around 15- 30 days) |
Payment Terms | T/T,Western Union,L/C |
