Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HUTZ | Model Number: | BJ30W10 |
| Type: | Other, Bottle Jack, Bottle Jack | Certification: | CE + ASME | Min Height: | 280mm |
| Max Height: | 445mm | Capacity (Load): | 41-50T |
Product Description

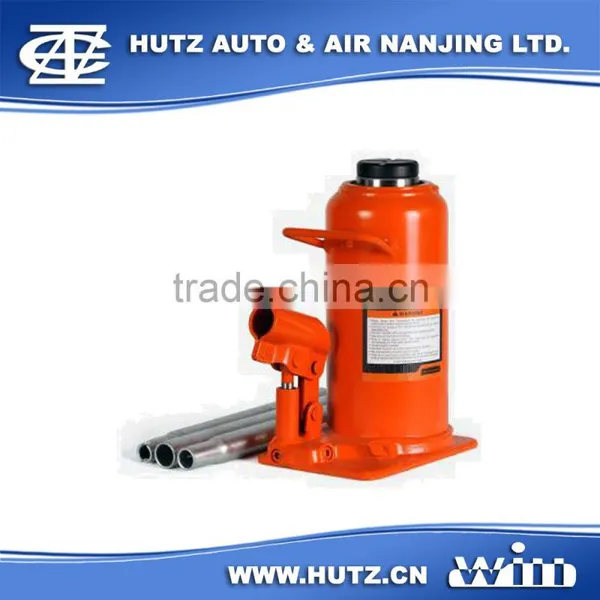

Bottle Jack - Welding Type - Industrial Jack
visit /hydraulic-bottle-jack-industrial.html for more information
visit for more information
contact sales(at) for more information
| Model | BJ02W10 | BJ03W10 | BJ05W10 | BJ08W10 |
| Capacity | 2 ton / ASME + CE | 3 ton / ASME + CE | 5 ton / ASME + CE | 8 ton / ASME + CE |
| Max. strength | 150% | 150% | 150% | 150% |
| Min. height | 180 mm | 190 mm | 200 mm | 200 mm |
| Max. height | 345 mm | 365 mm | 390 mm | 392 mm |
| Head screw | 50 mm | 60 mm | 70 mm | 70 mm |
| Base size | 118 x 78 mm | 125 x 85 mm | 142 x 92 mm | 157 x 98 mm |
| Base material | forging steel | forging steel | forging steel | forging steel |
| Piston and ram | chrome plated | chrome plated | chrome plated | chrome plated |
| Safety system | oil by pass | oil by pass | oil by pass | oil by pass |
| N.W. | 2.4 kg | 3 kg | 3.7 kg | 5.6 kg |
| Model | BJ12W10 | BJ12W10H | BJ20W10 | BJ20W10H |
| Capacity | 12 ton / ASME + CE | 12 ton / ASME + CE | 20 ton / ASME + CE | 20 ton / ASME + CE |
| Max. strength | 150% | 150% | 150% | 150% |
| Min. height | 178 mm | 240 mm | 183 mm | 270 mm |
| Max. height | 345 mm | 468 mm | 305 mm | 430 mm |
| Head screw | 75 mm | 80 mm | 40 mm | without |
| Base size | 173 x 119 mm | 173 x 119 mm | 193 x 144 mm | 193 x 144 mm |
| Base material | forging steel | forging steel | forging steel | forging steel |
| Piston and ram | chrome plated | chrome plated | chrome plated | chrome plated |
| Safety system | oil by pass | oil by pass | oil by pass | oil by pass |
| N.W. | 6.9 kg | 8 kg | 9.65 kg | 13 kg |
| Model | BJ30W10 | BJ50W10 |
| Capacity | 30 ton / ASME + CE | 50 ton / ASME + CE |
| Max. strength | 150% | 150% |
| Min. height | 280 mm | 300 mm |
| Max. height | 445 mm | 480 mm |
| Head screw | without | without |
| Base size | 202 x 150 mm | 218 x 176 mm |
| Base material | forging steel | forging steel |
| Piston and ram | chrome plated | chrome plated |
| Safety system | oil by pass | oil by pass |
| N.W. | 18.4 kg | 35.3 kg |
