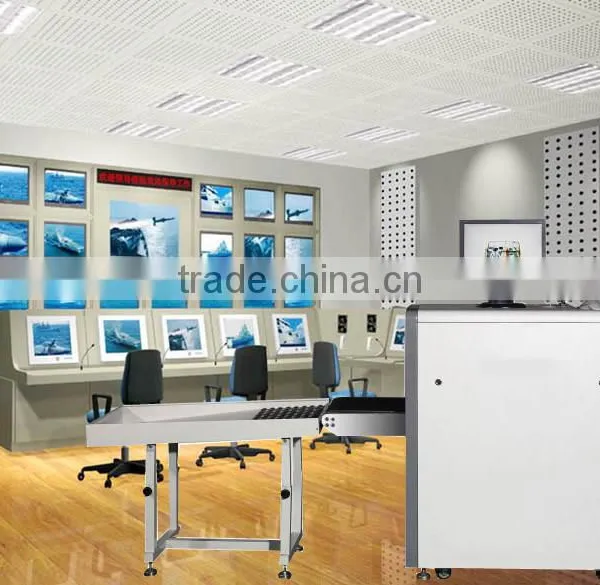

500 ( Width ) * 300 ( Height ) mm X Ray Baggage Scanner for Commercial Buildings
Competitive Advantage:
1. Integrated, cost Effective, Turn-Key Security
2. Fit for small Baggage and Parcel Security Inspection.
3. Increased detection capability
4. Friendly interface for ease-of-use
5. Reliable performance and uncompromising value
Applications:
01. Airports,
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing, shoes, bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location
Specifications:
Tunnel Size: |
500(W)*300(H)mm |
Conveyor Speed: |
0.22m/s |
Conveyor Max Load: |
100kgs |
Dose per Inspection: |
<2.9 μGy/h |
Resolution: |
<0.101mm Metal Wire |
Penetration: |
8mm Steel |
Film Safety: |
Guarantee ISO1600 Film |
X-ray Leakage: |
<0.05 μGy/h (at a distance of 5cm From external housing) |
Generate direct: |
Upward |
Generate angle: |
60 degree |
Anode Voltage: |
70Kv |
Anode power: |
0.4 to 0.5mA |
Cooling / Duty Cycle: |
Oil Cooling /100% |
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
Monitor: |
High Resolution Color, LCD Accord, 17 inch |
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
Image Grey Level: |
4096 |
Image Max Resolution: |
1024 * 1280 pixel |
Image Processing: |
24bit for processing real time |
Image storage: |
Storage 60000 pictures in real time |
Zones & Zoom: |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
Operation Power: |
220VAC(±10%)50±3Hz |
Power Consumption: |
1.0 KW (max), 0.3KW(working) |
Noise: |
<65db |
Standard package takes of the strong plywooden case for export by sea or by air
engineer can go overseas for big project design and guidance
The warranty can prolong depends of customer requirement
