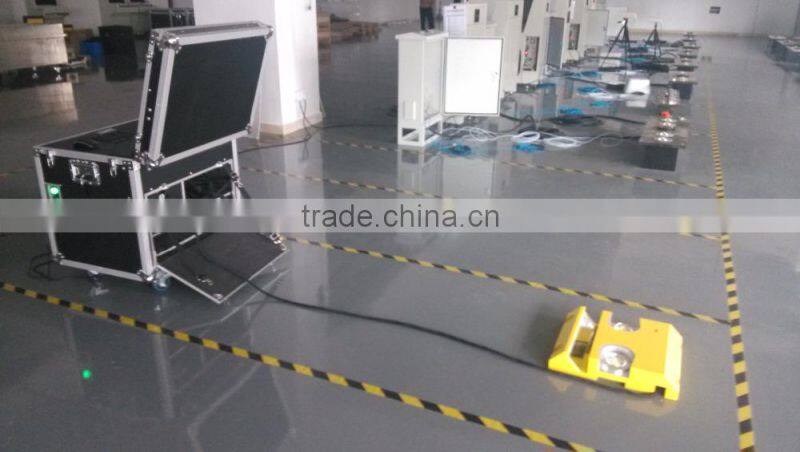

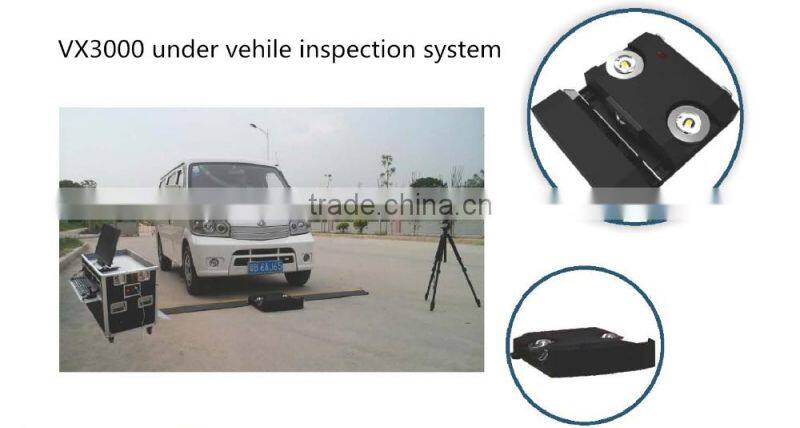

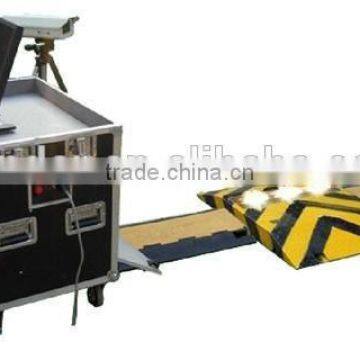

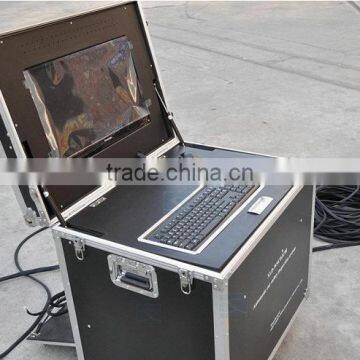

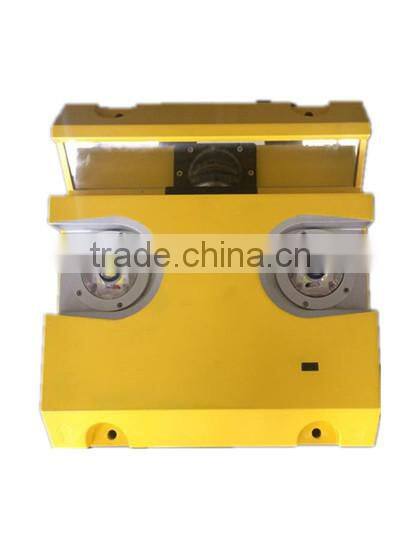

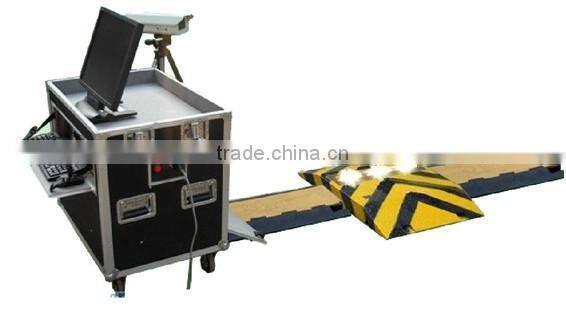

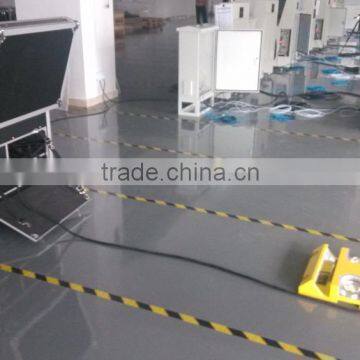

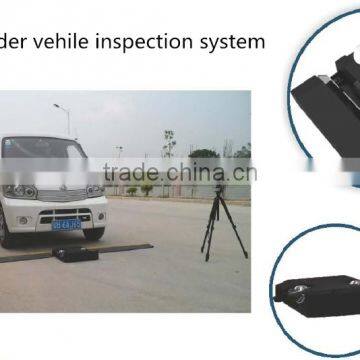

Help CenterPortable Under Vehicle Moveable Inspection System
Related Products
-
Under Vehicle Inspection SystemUS$ 1 - 15,000MOQ: 1 Set -
Reasonable Price Hand Held Security Detector , Under Car Inspection MirrorUS$ 30 - 50MOQ: 1 Set
-
High Safety Anti-terrorism UVSS Traffic Safety Under Car InspectionUS$ 1 - 15,000MOQ: 1 Set
-
UVSS/ UVIS Under Vehicle Surveillance System Car Bomb Detector for HotelUS$ 14,500 - 15,000MOQ: 1 Set
-
Portable Under Vehicle Inspection and Surveillance System (UVIS/UVSS)US$ 1 - 15,000MOQ: 1 Set
Features:
Auto digital line scan, high-resolution undercarriage imaging.
1.High automation, easy to be used.
2. Applicable to variety of vehicles, wide vision.
3.Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
4.Undercarriage image can be stored, retrieved, searched or compared with other images.
5.A variety of image processing methods: enlarge, stretching and cutting.
6. Multi entrance management model, management, and statistics of entering and exiting vehicles.
7. Flexible detection process can be made on site to satisfy the needs of various work conditions.
8.Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.
9.Image monitoring, video recording for different scenario.
Advantage :

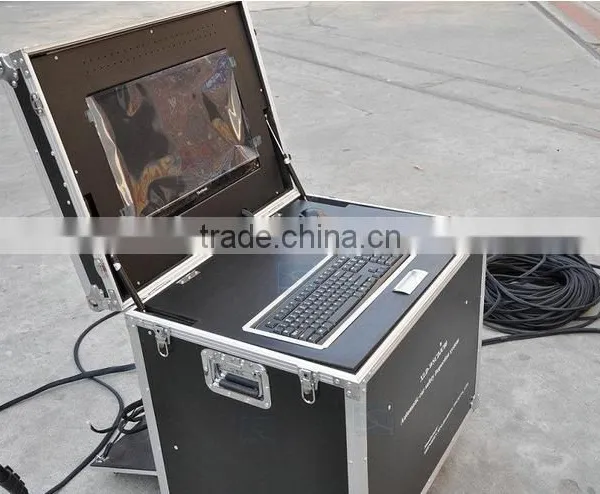

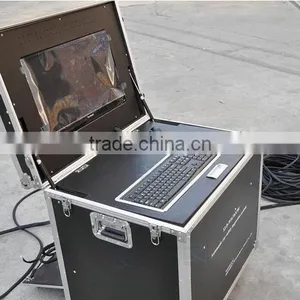

1.Portable under vehicle inspection system
2.Mobile equipment
3.Easy install and no maintain
4.High clear images displayed
Main Technical Indexes:
l Vertical resolution of the image: 2048 pixels
l Check the width viewing angle: not less than 4 meters
l Speed of vehicle: 1~65km/h
l Effective FOV: not less than 170°
l Auxiliary light: 100W
l Bearing weight: more than 30T
l Waterproof grade: IP68 meet the condition of working around the clock

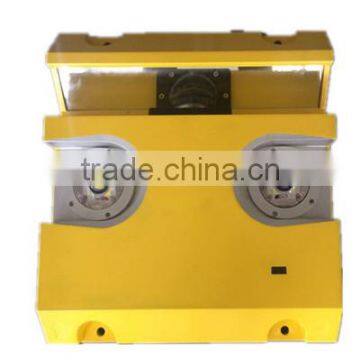

l Scanning device weight: 18KG
l Scanning device volume: 410mm×370mm×93mm
l Communication interface: RS232/RS422
l Operating Temperature: -10°C to 55°C
l Storage temperature: -40°C to +75°C
l Operating voltage: 110-240V AC, 50-60HZ
