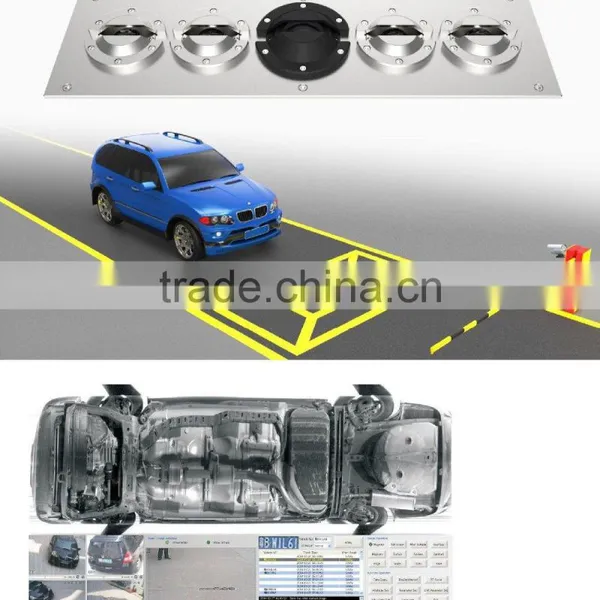

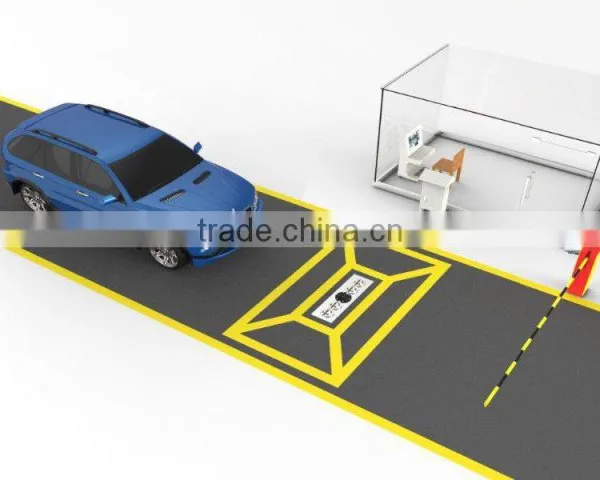

Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human
resources.
Features
Multi entrance management model, management, and statistics of entering and exiting vehicles
Auto digital line scan, high-resolution undercarriage imaging.
High automation, easy to be used
Applicable to variety of vehicles, wide vision.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images. Avariety of image processing methods: enlarge, stretching and cutting.
(Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.

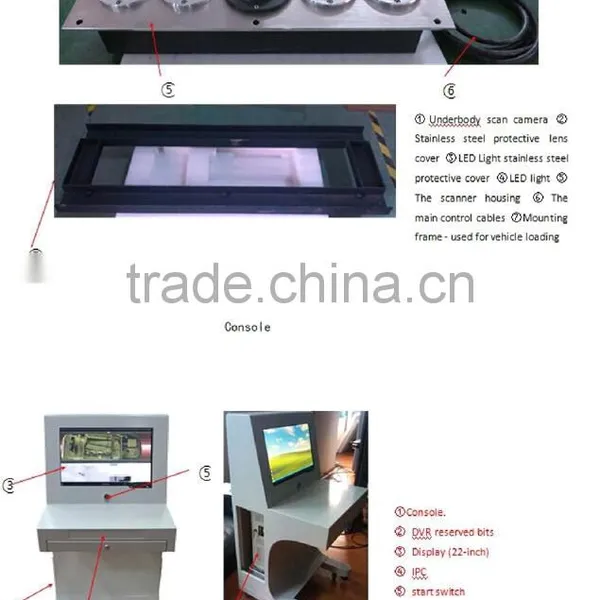

Embedded Screening Part
Camera: Sensor: line scans CCD, Resolution: 5000*2048 pixels, Power Supply: 24VDC, 3A
Illumination: LED, Power Supply: 24VDC,150W
Size: 1200mm x 350mm x 300mm
Operating Temperature Range: -20 degree to +60 degree
Controller
Input: 2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication port: RS485, Ethernet(Optional)
Operating Temperature: -10℃ to 55℃
System Host
Brand: Grantech (SYM76941VGGA)
CPU: Intel(R)Celeron(R)CPU
E3400 2.6GHz 2.59 GHz Memory:2G( optional 4G)
Graphics:512M
Hard Disk:SATA2 Hard Disk 500G
Dual LAN (At least one Intel Gigabit) USB2.0 (Up to 2 pieces)
Monitor: 22inch LCD, resolution up to 1920*1080
