Specifications

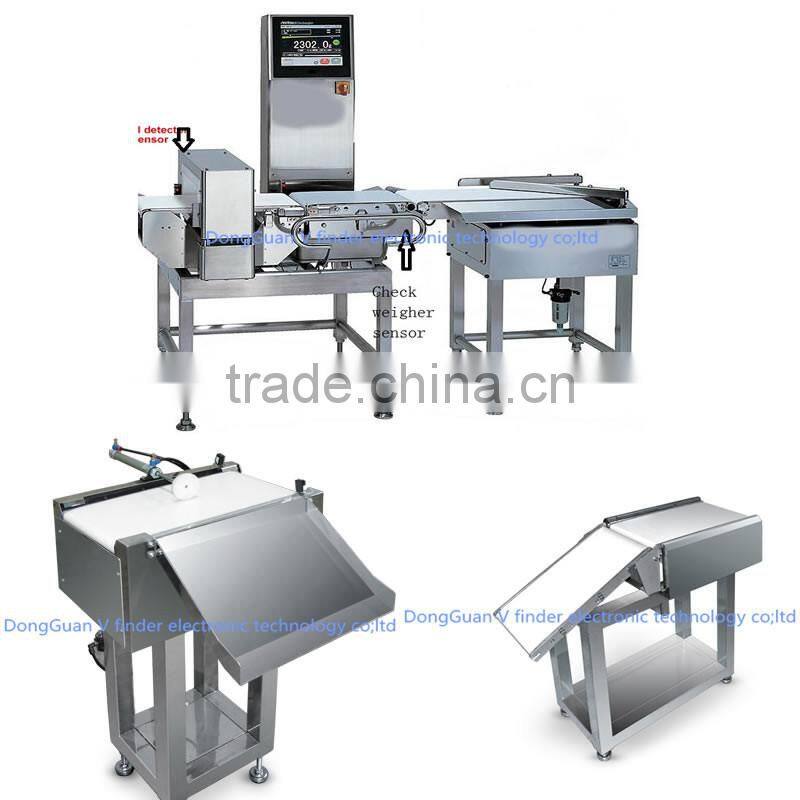

Two machine connect for one product lineCan achieve metal detector and check weigher same time
customized size accordingly
Information on the metal detector
Product advantages:
Can identify a variety of magnetic and non-magnetic metals (such as iron, stainless steel, aluminum, etc.)even if the metal embedded in the products.
Adopts the double circuit signal detection circuit, high sensitivity and strong anti-disturbance ability.
Has the double circuit signal demonstration function. When the metal good is passing, the signal light will demonstrate different induction according to the size of the metal.
Has the adjustment function of products effect, such as moist products, products including sugar or salt, they all can make the machine has the signal of metal, which is actually has no metal, so it gets wrong information from the products and affect the detection result. So use this machine with this function can reduce the products’ effect to get better detection result.
Can avoid missing detection. When several metal signals are passing, the machine will automatically record the signal amount, so it won’t have missing detection.
Control system: ADLINE microprocessor controller.
Conveyors: Joint-body PU (polyurethane) Conveyor.
Special transport mechanism designed the maximize sensitivity of metal detectors.
Flexible modular design can be customized according to different requirements.
Mirror stainless steel with open transport system. Easy to clean.
Conveyer belt adopts imported white ones safe to food.
Meet the requirements of IFS and HACCP certification. There are a variety of options excluded institutions depending on the application.
Technical parameters:
Model |
VGF series |
||||||||
Machine specification |
Normal machine |
Customized width |
|||||||
(mm)Detection Width |
400 |
400 customized |
|||||||
(mm)Detection Height |
100 |
120 |
150 |
200 |
250 |
300 |
350 |
400 |
|
Detection Sensitivity |
Fe(Φmm) |
≥0.6 |
≥0.8 |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
Non-Fe(Φmm) |
≥1.0 |
≥1.2 |
≥1.5 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
304Sus(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
|
|
316Sus(Φmm) |
≥1.2 |
≥1.5 |
≥2.0 |
≥2.5 |
≥3.0 |
≥3.5 |
≥4.0 |
≥4.5 |
Alarm and rejector system |
Automatic stop by alarm and sound or push rod or falling drop |
||||||||
Machine structure |
Full structure takes of stainless 304 |
||||||||
Machine size (mm) |
L1520mm×W830mm×H1000mm if customized it will according to customized size |
||||||||
Machine weight |
Around 250KG if customized the weight will different |
||||||||
Voltage and power |
220V 50Hz 90W |
||||||||
Load ability |
5-25KG conveyor belt running speed :25-30m/min or customized |
||||||||
Height from the earth |
650mm±50mm can customized |
||||||||
Normal size machine have stocks. Unnormal size machine have to customized | |||||||||
Information on check weigher
Checkweighers are systems used to assure compliance with label weight regulations and to minimize product giveaway. Our checkweighers will help you make sure items are not missing from packaging, reducing customer complaints, speeding up production and minimizing your giveaway.
Function and structure characteristics of check weigher
1. apply advanced digital signal processing and realize high speed and stable weighing.
2. with liquid crystal and tangibly screen, it is easy to operate.
3. self-diagnosis function, when Rom/Ram, A/D light electric tube.
Scope of application of check weigher
Use in detecting the single product weight and setting target value which is accordingly or not. And the
sorting device will eliminate the unstandard product.
Features:
Solid SUS304 stainless steel structure enable for good performance
Belt disassembling without tools, which is easier to clean
Rejecter system choose :automatic stop by sound and light .air blast. or penumatic push rod
emergency stop button for safety working condition
Parameter details :
Model |
VC-22 |
VC-30 |
Speed |
From 10 meters to 65 meters per minute can adjustment |
|
Mini scale |
0.1g |
|
Control sysem |
Full PLC control can conduct to any production line |
|
Weighting range |
10-1000g |
10-3000g |
Accuracy |
o.5g-1g |
1-1.5g |
Product size |
Length 300mm.width220mm |
length 300mm.width300mm |
Belt width |
220mm |
300mm |
Rejector system |
Automatic stop.air blast or penumatic push rod |
|
Power supply |
110V 220V or 380V customized |
|
Packing |
Takes of ploywooden case |
|
Customized |
Accept |
|
Both two machine can design in the width same speed
and customized then it can work together
