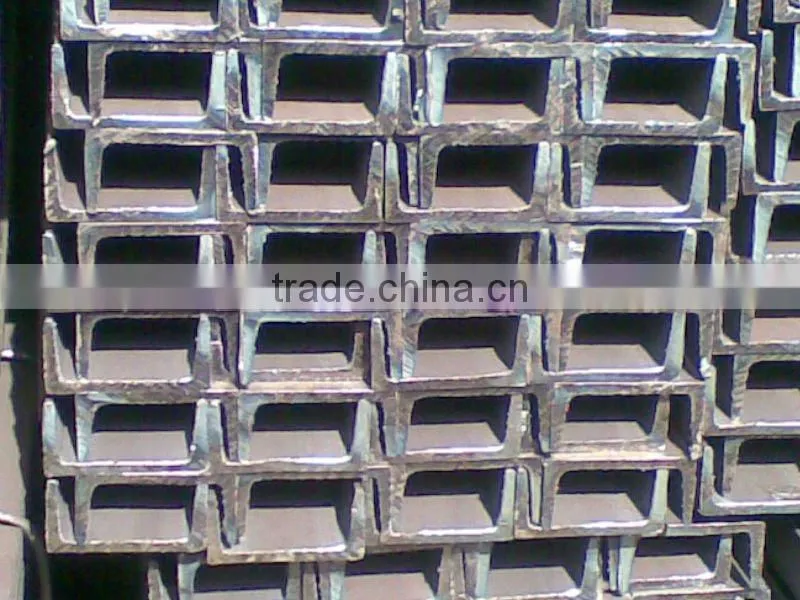

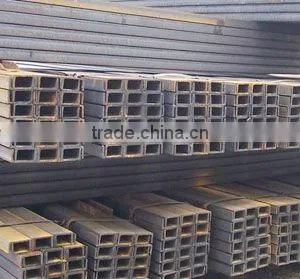

Channel Bar

Name: Channel Bar
Brand: EFYASTEEL
SKU: 143796850
Availability: InStock

US$ 400 - 1,000 MOQ: 5 Tons

Key Specifications

Standard:

GB, JIS

Dimensions:

8#~30#

Grade:

Q195~Q345

Efya International Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN CHINA

Delivery Detail:

Delivery time depends on order quantity.

Standard GB, JIS

Dimensions 8#~30#

Grade Q195~Q345

Place of Origin Tianjin, China

Brand Name EFYASTEEL

Model Number EFYASTEEL-002

Shape U Channel

Application Constructions

Perforated Or Not Is Perforated

Specifications

Channel bar
Material: Q195~Q345
Standard: GB, JIS, UPN, UPA
Size: 8#~20#
We provide high quality and low price channels.

Channel bar

details:

Products	Size	Thickness
Square steel pipe	10-400mm	0.3-16mm
Round steel pipe	10-325mm	0.3-16mm
Rectangular steel pipe	1020-200400mm	0.3-16mm
Galvanized steel pipe	10-400mm	0.3-16mm
Spiral steel pipe	219-1620mm	4.5-12mm
Seamless steel pipe	21-820mm	2.5-30mm
Angle bar	2#-20#	3-24mm
Flat bar	12-150mm	2-16mm
Channel steel	8#-30#	Flange thickness:7-13.5mm Web thickness:4.5-9.5mm
IPE	100-270mm	Web thickness:4.1-6.6mm Flange thickness:5.7-10.2mm
IPEAA	80-160mm	Web thickness:3.2-4.0mm Flange thickness:4.2-5.6mm
I BEAM	100-360mm	Web thickness:4.5-10.2mm Flange thickness:7.6-15.8mm
H BEAM	100-900mm	6mm,8mm,16mm,28mm and so on.
Cold rolled steel strip	32-685mm	0.3-2.0mm
PC Steel stand	8-18.5mm
PC Steel wire	4.8-9mm

Oval pipe	Size	Thickness
	11*22mm	0.6-1.2mm
	12*25mm	0.6-1.2mm
	15*30mm	0.6-1.5mm
	17*30mm	0.8-2.5mm
	25*40mm	0.7-1.7mm
	25*45mm	0.7-1.7mm
	30*60mm	0.9-1.7mm
	25*70mm	0.9-1.7mm
	28*70mm	0.9-1.7mm
	30*70mm	0.9-1.7mm
	30*80mm	0.9-1.7mm
	40-80mm	1.0-1.7mm
	40*90mm	1.0-1.7mm
	20*40mm	0.9-1.5mm
	25*70mm	0.9-1.5mm
D figure pipe	Size	Thickness
	40D	0.9-2.0mm
	36D	0.9-1.5mm
Hollow section	Size	Thickness
	L28,38,50	0.6-1.8mm
	L28,38,50	0.6-1.8mm
	Z28,38,50	0.6-1.8mm
Processing technique	Threading,Nacking,Coupling and so on.
Material:Q195,Q235,Q345,SS400,S235JR,X42,X46,X52,X60,X65.
Standard:BS1139,BS1387-BS1385,ASTMA53B,Sch10-40,ASTMA500,API5L,API5CT,DIN2440andEN10219
