Specifications

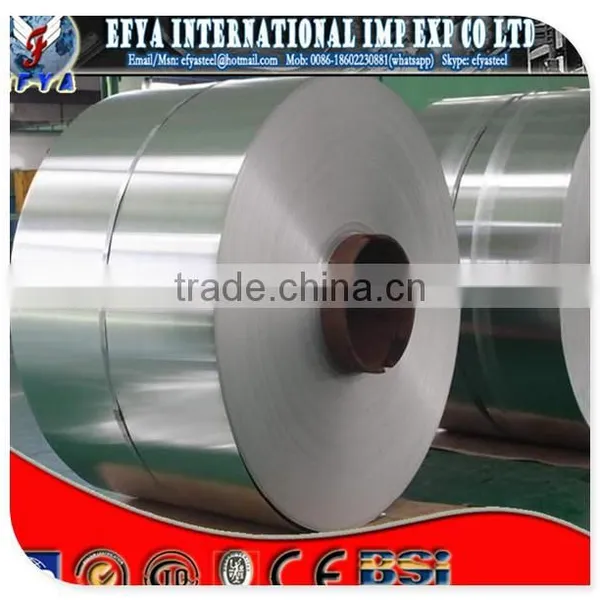

Tinplate coil and sheet1.Thickness: 0.13-0.6mm.
2.Width: 400-1600mm.
3.Steel Type: SPTE or MR.
4.Prime tinplate coil.
T2-T5 Hardness and Tinplate Sheet Type Tinplate in Sheets
1.Application:
Food packaging industry
Kinds of Containers,
Stamping products,
Non-food packaging material industry
All sorts of canned, sweets and snacks, tea, medicine, spray cans, bottle caps, containing gasElectrical
appliances, toys, igniting decorates project and other industrial fields.
Can be made into box, cans, barrel etc
2.Packaging coils for shipment:
1) Coils are wrapped with V.C.I.paper
2) Inside and outside edges are protected with steel corner strips.
3) Protective covers are tied.
4) Coils are wrapped with galvanized steel or painted CR steel.
TIPS:
Applications of Tinplate:
Tinplate in primarily used for packaging food stuffs and beverages, also used in containers for oils, grease, paints, polishes,
chemicals and many other products. Aerosol containers and caps and closures are also made from ETP.
3.Usage Precautions for ETP:
1.As ETP is covered by soft metallic tin coatings, due precautions should be taken not to cause scratches
by rough handling or vibration during transportation.
- 2. Paintability, printability, solderability, and mechanical properties of ETP tend to deteriorates as time
elapses after production. Use as soon as possible after delivery.
- 3. Although ETP has excellent corrosion resistance, it tends to rust in a humid atmosphere. Use as soon as
possible after unpacking.
- 4. Tin is dissolved by a strongly alkaline solution. when using ETP for making cans for alkaline contents,
paint the internal surface.
5.As contents that contain sulfur cause blackening of the ETP surface, paint the internal surface.
T2-T5 Hardness and Tinplate Sheet Type Tinplate in Sheets | |
Material |
MR, SPCC DR8 Q195L S08AL SPTE |
Specification |
thickness:0.13mm-0.6 mm(tolerance -/+0.01 mm) width: 400mm-1600 mm length: as customer's requirement |
Temper (BA&CA) |
T1~T5,DR8 ,DR9, BA |
Surface treatment |
Bright/Stone/Silver finish with passivation treatment; DOS oil |
Tin coating |
1.1/1.1;2.8/2.8; 2.8/5.6,5.6/5.6,8.4/8.4,11.2/11.2g/m2 differential coating available |
Coil weight |
2-8 tons |
Port |
Xingang,Tianjin |
Delivery term |
30% deposit by TT,70% balance before shipment |
Delivery time |
In 15 – 45 days after contract |
|
Standard for temper | |||
| Chinese Standard | Japanese Standard | American Standard | European Standard |
| GB/T 2520-2008 | JIS G3303-2008 | ASTM A623M-06a | DIN EN10202-2001 |
| T-1 | T-1 | T-1 (T49) | TS230 |
| T1.5 | — | — | — |
| T-2 | T-2 | T-2 (T53) | TS245 |
| T-2.5 | T-2.5 | TS260 | |
| T-3 | T-3 | T-3 (T57) | TS275 |
| T-3.5 | — | — | TS290 |
| T-4 | T-4 | T-4 (T61) | TH415 |
| T-5 | T-5 | T-1 (T65) | TH435 |
| DR-7M | — | DR-7.5 | TH520 |
| DR-8 | DR-8 | DR-8 | TH550 |
| DR-8M | — | DR-8.5 | TH580 |
| DR-9 | DR-9 | DR-9 | TH620 |
Our Services:
1. Timely, accurate and detailed inquiry reply
2. we patiently answer your questions , all productions are producing by strict quality control of tensile strength, breaking load test and zinc coating weight test by deep guarantee. (We'd like to let you know that no matter the quality,tensile strength or the toughess can meet your demands.)
3. we supply free small sample
4. we can do sample testing for u
5. u can visit our factory
6. Product quality assurance, order processing timely, perfect packaging, short production cycle,fast delivery, safe transportation, providing after-service to enhance our further services, do the customer feedback informations, etc.
We are trying innovating ourselves for our all reliable business partner in rapidly changing
environment, here we guarantee competitive price and packing, delivery, top quality service for you and ish your positive reply.
Ms Kelly looking forward to establish long-term business with u early!
