Black Plastic Delrin POM Bar

Specifications

Black Plastic Delrin POM Bar
1).Diameter: 10-300 mm
2).Length: 300-1500 mm

Black Plastic Delrin POM Bar



1 .Description:  POM rod Made from Polyformaldehyde Resin, with excellent fatigue resistance and creep resistance, good abrasion resistance and self-lubricated and frication. POM material is excellent replacement material of copper, cast zinc, steel, aluminum and other metal material.



2.Specifications:

1).Diameter: 10-300 mm

2).Length: 300-1500 mm



3.Color: white, black



4. Application:  It can be used for gear, springs, bearings, connecting rod, impeller blades etc.



Property	unit	copolymerization	homopolymer
Density	g/cm3	1.425	1.41
Moisture	%	0.25	0.22
Tensile	MPa	68.6	60.37
Elongation ratio	%
Bending strength	MPa	96.04	89.18
Compression strength	Mpa	123.48	109.76
Impact	KJ/m	7.6	12.5
Hardness	RH	(M94,R120)	(M78-80)
Specific heat volume	J/Kg.k	/	/
Temperaure of thermal deformation°C 0.45MPa	°C	170	158
Volume resistivity (wetness50%23°C)	Ω.m	6x1014	1x1014
Dielectric Strength(3.2mmThickness)	Kv/mm	18.6	19.7
Resistant arc characteristic	S	240
Sunlight influence	slight white
Strong-acid influence	corrode
Alkali influence	some resistance
Organic solvent	fine

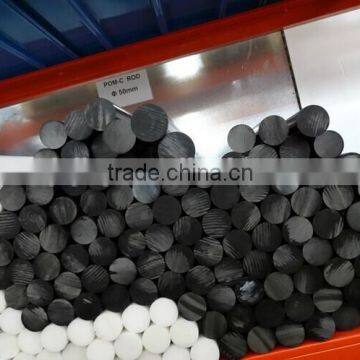

PRODUCT PICS
