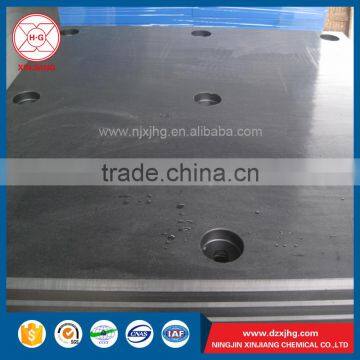

Big flow no blocking uhmwpe coal bunker liner
- No blocking
- No bonding
- Protect equipment against wear or tear
- Improve transmission speed
- Low cost, just 1/3 of carbon steel
- Light weight, 1/2 of steel
- Excellent wear resistance, twice stainless steel
Shape | Max. length mm | Max. width mm | Max. thickness mm |
Sheet
| 3800 | 1400 | 10-300 |
6200 | 1250 | 10-100 | |
6200 | 1100 | 10-100 | |
6200 | 1080 | 10-100 | |
2050 | 1260 | 10-100 | |
3720 | 1240 | 10-100 | |
1000 | 4080 | 10-100 | |
400 | 1500 | 10-100 | |
Customized dimensions are available within the above scope | |||
Rod | Dia :10-300mm Length:1000mm,2000mm or as your requirement Color:black,white,red or as your requirement | ||
Applications of UHMW / HDPE materials
Technical data of UHMWPE liner
Properties | unit | Result |
Specifica Gravity | g/cm³ | 0.95 |
Max Continuous Operating Temp: | ℃ | 80 |
Max Short Term Operating Temp(3~4hours): | ℃ | 130 |
Tensile Strength at Yield: | Mpa | 23.3 |
Tensile Strain at Yield | % | 21 |
Tensile Strength | MPa | 35.2 |
Elongation at Break | % | 350 |
Hardness Rockwell: | - | M61 |
Dielectric Strength: | KV/mm | 40 |
Surface Resistivity: | Ohms | >1014 |
Impact Resistance Charpy Unnotched: | KJ/m2 | No Break |
Impact Resistance Charpy Notched: | KJ/m2 | >100 |
Big flow no blocking uhmwpe coal bunker liner
Packing | Plastic Film, Pallet, Wooden Box, Carton, etc. |
Shipping | International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean, Air |
ISO Registration NO.:02113Q10326R0S
Our certificate
Factory show
Production line
Other products available,
Ningjin Xinjiang Chemical Co., Ltd. established in 1996, is one of the largest engineering plastic product manufacturers in China. We are specialized in UHMWPE products, like UHMWPE Sheet, UHMWPE Fender pad, UHMWPE Linings, and it's machined parts.
UHMWPE products are widely applied on electric fields, wharf and port, mining, chemical plant and so on, which bring a lot of social benefits and economic benefits. Now they are popular all over the world. We hope to establish a wide and deep cooperation relation with enterprises both home and abroad!
1.Q:What color of the UHMWPE / HDPE truck bedliners can you produce ?
A: Red ,yellow,blue,black,green ,gray ,double colors are available.
2.Q:What is your delivery time ?
A:It depands on volume .usually about 7 days
3.Q:How can i get the sample ?
A:Small size of the sample is free.
4.Q:What is the payment term?
A:T/T,L/C,Western Union and others
