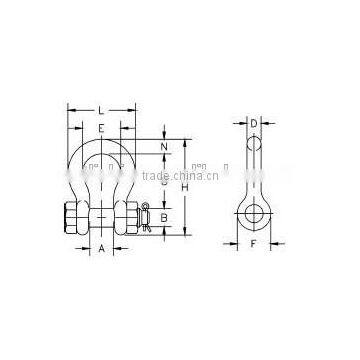

ATLI G2130 Shackle Lifting Bolt Anchor Shackle

Model No.

rated load  T

a mm

b mm

c mm

d mm

e mm

f mm

h mm

l mm

p mm

Weight KG

1/2

2

20.6

16.0

47.8

12.7

33.3

30.2

83.3

58.7

71.1

0.36

5/8

3.25

26.9

19.1

60.5

16.0

42.9

38.1

106.4

74.7

89.7

0.76

3/4

4.75

31.8

22.4

71.4

19.1

50.8

45.0

126.2

88.9

103.4

1.23

7/8

6.50

36.6

25.4

84.1

22.4

57.9

53.1

148.1

102.4

119.6

1.79

1

8.5

42.9

28.7

95.3

25.4

68.3

60.5

166.9

119.1

134.9

2.57

11/8

9.5

46.0

31.8

108.0

28.7

73.9

68.3

189.7

131.1

149.9

3.75

11/4

12.0

51.6

35.1

119.1

31.8

82.6

76.2

209.6

146.1

165.4

5.31

13/8

13.5

57.2

38.1

133.4

35.1

92.2

84.1

232.7

162.1

183.1

7.18

11/2

17.0

60.5

41.4

140.1

38.1

98.6

92.2

254.0

174.8

196.3

9.43

13/4

25.0

73.2

50.8

177.8

44.5

127.0

106.4

313.4

225.0

229.8

15.38

2

35

82.6

57.2

196.9

50.8

146.1

122.2

347.5

253.0

264.4

23.70

21/2

55

104.9

70.0

266.7

66.5

184.2

144.5

453.1

326.9

344.4

44.57

3

85

127.0

82.6

330.2

76.2

200.2

165.1

546.1

364.7

419.1

69.85

31/2

120

133.4

95.3

371.6

91.9

228.6

203.2

625.6

419.1

482.6

120.2

4

150

139.7

108.0

368.3

104.1

254.0

228.6

652.5

467.9

501.7

153.32
