Home > Tools & Hardware > Hardware Accessories > Shackles > ATLI G2150 1-3/8 US Type Steel Clevis Shackle
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Carbon steel
Type:
Other, US Type, US type
Shape:
D
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ATLI G2150-1-1/4 US Type Carbon Steel Clevis ShackleNegotiableMOQ: 100 Pieces -
U.S. Type Lifting G2150 Screw Pin Dee ShackleNegotiableMOQ: 100 Pieces
-
U.S. Type Lifting G2150 Screw Pin Dee ShackleNegotiableMOQ: 100 Pieces
-
G2130 Shackle Lifting Bolt Anchor ShackleNegotiableMOQ: 100 Pieces
-
SKC-M4-G2150DX-3 HG Chain Shackle Clevis Shackle Rigging HardwareNegotiableMOQ: 100 Pieces
Material
Other, Carbon steel
Type
Other, US Type, US type
Shape
D
Surface Treatment
Galvanized
Place of Origin
Zhejiang, China
Brand Name
ATLI
Model Number
G2150
Quick Details
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | ATLI | Model Number: | SKC-M4-G2150DX-1-1/8 HG |
| Name: | US Type D Shackle with bolts | Materail: | carton steel & alloy steel | Standard: | US Type Shackle |
| Capacity: | 0.5T to 120T | Grade:: | M4, S6, T8 | ||
| product: | Electro galv US type G-2150 forged bolt chain shackle |
Specifications
G2150 CHAIN SHACKLE WITH BOLT & NUT
CAPACITY: 0.5T-200T
SAFETY FACTOR: M4 S6 T8
SCREW TYPE BOW SHACKLE WITH PIN
G210 SCREW TYPE DEE SHACKLE WITH PIN
G2130 BOLT TYPE BOW SHACKLE WITH BOLT AND NUT
G2150 BOLT TYPE DEE SHACKLE WITH BOLT AND NUT
Capacity: 0.5T-200T
Safety Factor: B.L.=4*1W.L.L. ; B.L.=6*1W.L.L.
Heat treated: Tempered and Quenched
Finishing:Hot Galvanized
Surface: Hot Galvanized, Electric Galvanized, Color Painted
Finished; Brand, CE, WLL, SIZE
Welcome to contact us for other information!
Packaging & Delivery
| Packaging Detail: | gunny bag on steel pallet |
| Delivery Detail: | 15days |

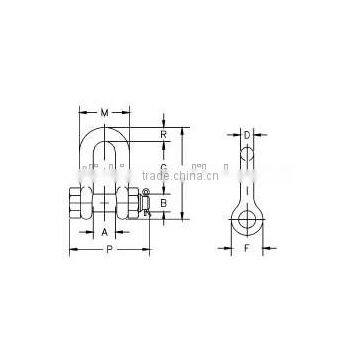

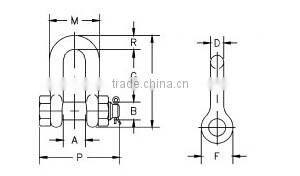

| Model No. | rated load | A(mm) | B(mm) | D(mm) | E(mm) | F(mm) | G(mm) | K(mm) | M(mm) | Weight (kg) |
| 1/2 | 2 | 20.6 | 16.0 | 12.7 | 30.2 | 41.4 | 77.0 | 46.0 | 71.1 | 0.34 |
| 5/8 | 3.25 | 26.9 | 19.1 | 19.0 | 38.1 | 50.8 | 95.3 | 58.7 | 89.7 | 0.67 |
| 3/4 | 4.75 | 31.8 | 22.4 | 19.1 | 45.0 | 60.5 | 115.1 | 70.0 | 103.4 | 1.14 |
| 7/8 | 6.50 | 36.6 | 25.4 | 22.4 | 53.1 | 71.4 | 135.4 | 81.0 | 119.6 | 1.75 |
| 1 | 8.5 | 42.9 | 28.7 | 25.4 | 60.5 | 91.0 | 150.9 | 93.7 | 134.9 | 2.52 |
| 11/8 | 9.5 | 46.0 | 31.8 | 28.7 | 68.6 | 90.9 | 172.2 | 103.1 | 149.9 | 3.45 |
| 11/4 | 12.0 | 51.6 | 35.1 | 31.8 | 76.2 | 100 | 190.5 | 115.1 | 165.4 | 4.90 |
| 13/8 | 13.5 | 57.0 | 38.1 | 35.1 | 84.1 | 111.3 | 210.3 | 127.0 | 183.1 | 6.24 |
| 11/2 | 17.0 | 60.5 | 41.4 | 38.1 | 92.2 | 122.3 | 230.1 | 136.7 | 196.3 | 8.39 |
| 13/4 | 25.0 | 73.2 | 50.8 | 44.5 | 106.4 | 146.1 | 278.6 | 162.1 | 229.8 | 14.24 |
| 2 | 35 | 82.6 | 57.2 | 50.8 | 122.2 | 171.5 | 311.9 | 184.2 | 264.4 | 21.20 |
| 21/2 | 55 | 104.9 | 70.0 | 66.5 | 144.5 | 203.2 | 377.0 | 238.3 | 344.4 | 38.56 |
| 3 | 85 | 127.0 | 82.6 | 76.2 | 165.1 | 215.9 | 428.8 | 279.4 | 419.1 | 56.36 |
| 31/2 | 120 | 133.4 | 95.3 | 91.9 | 203.2 | - | - | - | 482.6 | - |
| 4 | 150 | 139.7 | 108.0 | 104.1 | 228.6 | - | - | - | 501.7 | - |
