Specifications
JBT30 Concrete Pumping Machine1Dual-cylinder hydraulic pumping system
2.Small size and operating space
3.Stable performance

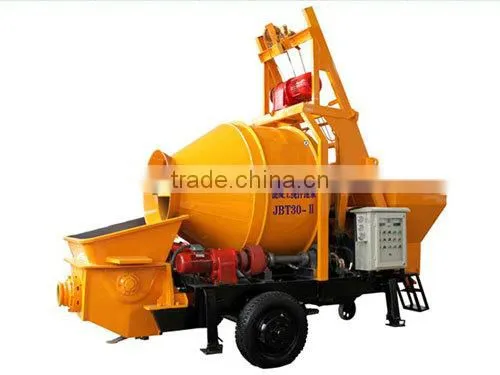

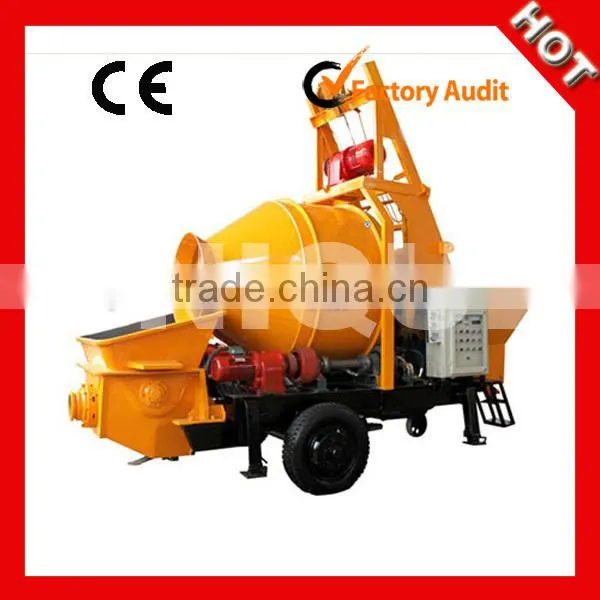

JBT30 Concrete Pumping Machine And Concrete Mixer
Description of JBT30 Concrete Pumping Machine And Concrete Mixer :
Concrete mixer pump is a new kind of engineering equipment of the combination of concrete mixer and concrete pump. It uses dual-cylinder hydraulic pumping system, small size and operating space and large concrete pouring and excellent characteristics of the mature and stable performance. The product is suitable for 2 to 12-storey small building construction, and a variety of cave, roads, railway tunnels, water conservancy and hydropower engineering, geological hazards slope treatment works.
Parameters of JBT30 Concrete Pumping Machine And Concrete Mixer :
Max theoretical concrete conveying capacity |
30m3/h |
Distribution valve model |
S tube valves |
Hopper capacity * filling height |
500L* 1200mm |
Pump motor power |
30kw |
Winding motor power |
4kw |
Hydraulic circuit form |
Open circuit |
Rated speed |
1480Rmp |
Oil tank volume |
170L |
Weight |
3500kg |
Concrete pumping pressure |
9Mpa |
Concrete cylinder size * length |
180mm*800mm |
Discharge mouth diameter |
180mm |
Mixing motor power |
3*2kw |
Water pump motor power |
550w |
Max aggregate diameter |
Pebble: 40mm |
Gravel: 30mm | |
Voltage |
380v |
Dimension(L*W*H) |
4300*2060*3680(mm) |
