Hot HZS25 Low Price Of Concrete Batching Plant

Specifications

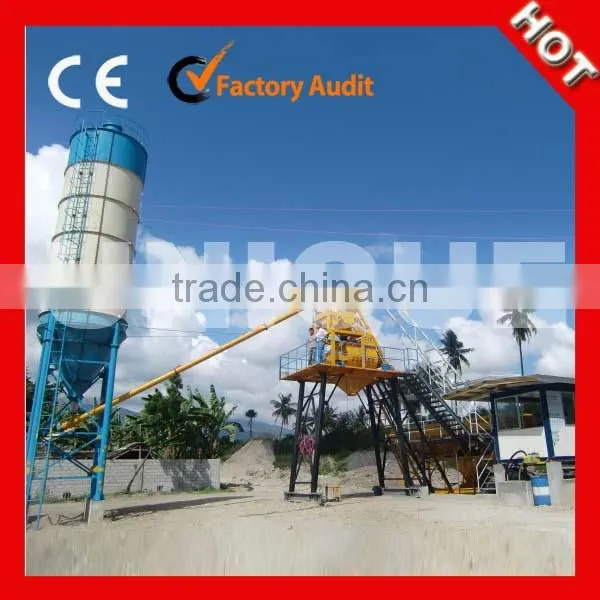

HZS25 Concrete Batching Plant

Descriptions of Concrete Batching Plant :

HZS series concrete mixing plant designed by Zhengzhou Unique Industrial Equipment Co., Ltd has advanced technology in the world. It is suitable for the commodity concrete and concrete construction in each kind of architectural project, including the water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spread. It can mix the hard concrete, plastic concrete, liquid concrete, and various other lightweight aggregate concrete. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.

Technical Parameters of HZS25 Concrete Batching Plant :

Capacity: 25 m³/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 60KW
Total Weight: 25Ton
Total Dimensions: 15000×8000×12000 mm

1. MIXING SYSTEM

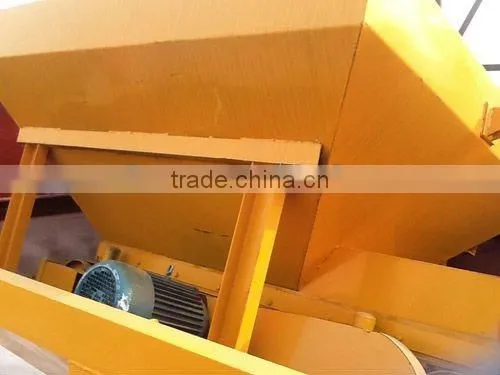

Twin Shaft Concrete Mixer: JS500

Volume: 800L

Capacity: 500L

Mixing blade: 2×7 pcs

Mixing Speed: 35 r/min

Mixer Motor:18.5 kw

Weight: 3700kg

Dimensions: 3030×2300×2680mm

2. AGGREGATE SYSTEM

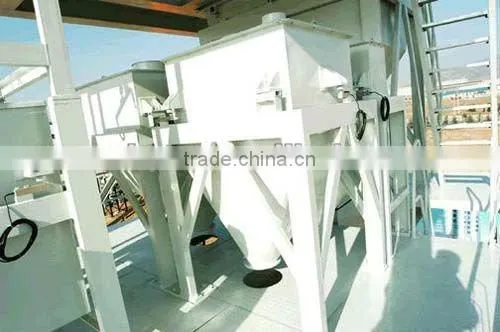

2.1 Aggregate batcher: PLD800

Volume: 2×2 m³

Capacity: 48m³/h

Power: 3×3 kw

Weight: 2300 kg

Dimension: 6400×1600×3000mm

2.2 Lifting hopper: 1 unit

Speed: 0.28 m/s

Power of Motor: 5.5 kw
3. EMENT SYSTEM (OPTIONAL)

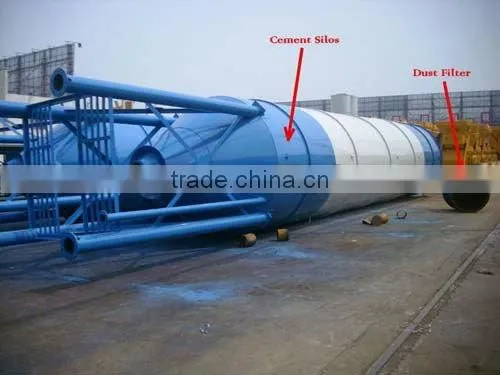

3.1 Cement silo: 2units

Capacity: 50t×2=100t

Silo Diameter: Φ2800

3.2 Cement Screw Feeder: 2units

Diameter: Φ219mm

Length: 9m

4. ADDITIVE SYSTEM (OPTIONAL)

Additive silo Capacity: 1m³

Pneumatic Valve: Φ50 mm

Pump: 3kw

5. WATER SYSTEM

Motor Power: 3kw

Butterfly Valve: Φ150 mm

Capacity: 50m³/h

6. AIR SYSTEM

Air Compressor: 1unit

Power: 5.5 kw

Pressure: 0.7 Mpa

Air flew: 0.67 m³/min

7. WEIGHING SYSTEM

7.1 Aggregate Weighing: 1unit

Weighing Capacity: 1500kg

Precision: ±1%

7.2 Cement Weighing: 1unit

Weighing Capacity: 300kg

Precision: ±1%

7.3 Water Weighing: 1unit

Weighing Capacity: 150kg

Precision: ±1%

7.4 Additive Weighing: 1unit

Weighing Capacity: 40 kg

Precision: ±1%

8. CONTROL SYSTEM
PLC command and control operation

Main electrical components: SCHNEIDER or SIMENSE

17’’ colorful computer

Manuel and Auto Control is freely changeable
