China High Professional 3000t/d Best Price Small Cement Plant Production Line Supplier From China

China Hot Sale Cement Production Plant

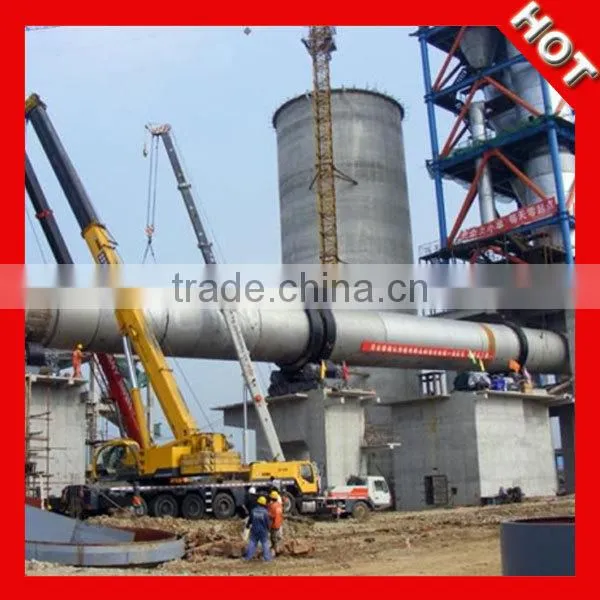

Cement kiln system, rotary kiln system,  cement grinding station and grinding system play main roles in cement production plant.

1. This cement production plant adopts advanced technology and equipment of current cement industry. With the advanced technology and dependable equipment, great economy benefits can be acquired.

2. The high-efficiency low-resistance five-stage cyclone pre-heater and cdc furnace system with high gas adaptability, high classification efficiency, high heat exchanging efficiency and low system resistance will be adopted at the kiln inlet, so as to increase the output of clinker. china complete cement machine,cement mill,cement plant.

3.  New technology will be adopted at the rotary kiln head.

4.  In the raw meal grinding section, air swept drying mill is adopted. The raw material is dried by waste heat from the kiln inlet to save energy and investment.

5. According to technology requirements of the new dry process rotary kiln, advanced computerized dcs control system is adopted for the control of main production parts from bottom of raw material blending silos to top of cement silos. And PLC control system is adopted for other parts.

6.Great importance has been attached to the environment protection in the plan. In order to measure up to the environment protection standard, advanced and practicable dust collectors are adopted at all dust generating points.

Brief introduction of process:

1) limestone crushing
2) raw material storage and blending
3) raw meal grinding
4) raw meal homogenizing and kiln feeding
5) kiln inlet, kiln middle, kiln head and pulverized coal preparation
6) waste gas treatment at kiln inlet
7) clinker and admixture storage
8) cement grinding
9) cement storage and packing

1. Crushing

In this process, most of raw material should be crushed, such as limestone, clay, iron ore and coal. Limestone is the largest amount of raw materials in cement production line, so it is very important in cement production line.

2. Pro-homogenization

Raw material pro-homogenization is making the raw material yard with storage and pro-homogenization function by applying scientific stacker technology.

3. Raw material preparation

In cement production process, to produce 1 ton of Portland cement must grind at least 3 tons of materials (including raw materials, fuel, clinker, mixed materials, gypsum). According to statistics, grinding operations in the dry-process cement production line need to consume power accounts for about 60% of the whole plant power, of which 30% of raw material grinding, more than about 3% of coal mill, cement grinding about 40%. Therefore, a reasonable choice grinding equipment and processes, optimizing the process parameters, proper operation and controlling operation system is of great significance.

4. Raw material pro-homogenization

The system of raw material pro-homogenization plays a raw meal of raw ingredients stability of pit entry last gatekeepers.

5. Preheat & decomposition

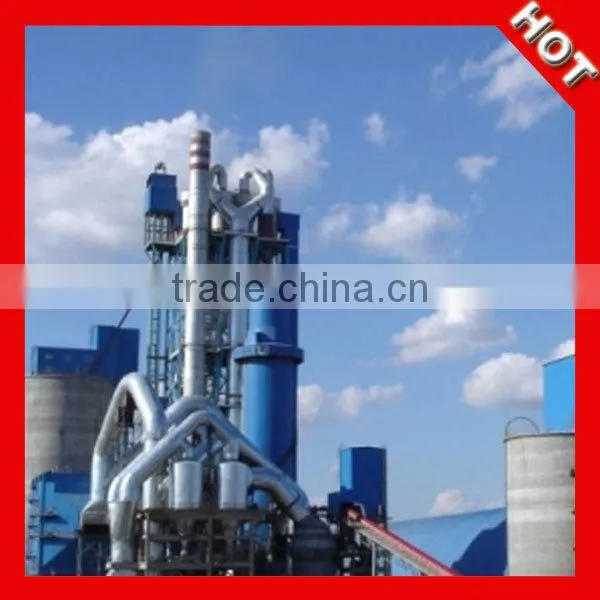

Raw material preheating and decomposition is completed by preheater, which can improve the kiln system productivity and reduce heat consumption of clinker Purposes.

6. The burning of cement clinker

Raw material is carried out into the rotary kiln clinker for completion after preheating in the preheater and pre-decomposition

7. Cement grinding

Cement grinding is the last process of cement production plant, also the most power consuming process. Its main function is to grind the cement clinker (and gelling agent, performance tuning materials, etc.) into the appropriate size and a certain particle size distribution, which is for increasing the size of its hydration, accelerating the hydration rate and meeting the coagulation, hardening requirements.

We offer one-stop service for you, including designing, building, suitable equipment providing, installing and debugging, technical serving, and overall contracting. And we have successfully finished the construction of cement production lines of 4000t/d, 3000t/d, 2500t/d, 1500t/d, 600t/d, 300t/d. china complete cement machine,cement mill,cement production line

UNIQUE is a famous cement production plant equipment manufacturer in China, and offer types of cement crushers, cement mills and other cement machine for cement production line. UNIQUE design cement plant according to layout diagram and process flow chart for cement industry in Kuwait, Pakistan, Ghana, USA, Russia, Brazil, Korea, India, UAE, Bangladesh.

After-sale services

Provide considerate services to minimize clients’ worries.

1) Assist clients to prepare for the first construction scheme;

2) Install and debug the equipment;

3) Take initiative to eliminate the troubles rapidly at site

China cement production plant for sale, Zhengzhou Unique Industrial Equipment Co., Ltd is reliable and professional supplier of cement production plant.
