China Unique Hot Sale Cement Mill Grinding Balls

Specifications

Cement mill is key equipment for the grinding process of the cement clinker
It is mainly used in the cement silicate product

China Unique Hot Sale Cement Mill Grinding Balls

Introduction

Introduction of  Cement Mill Grinding Balls

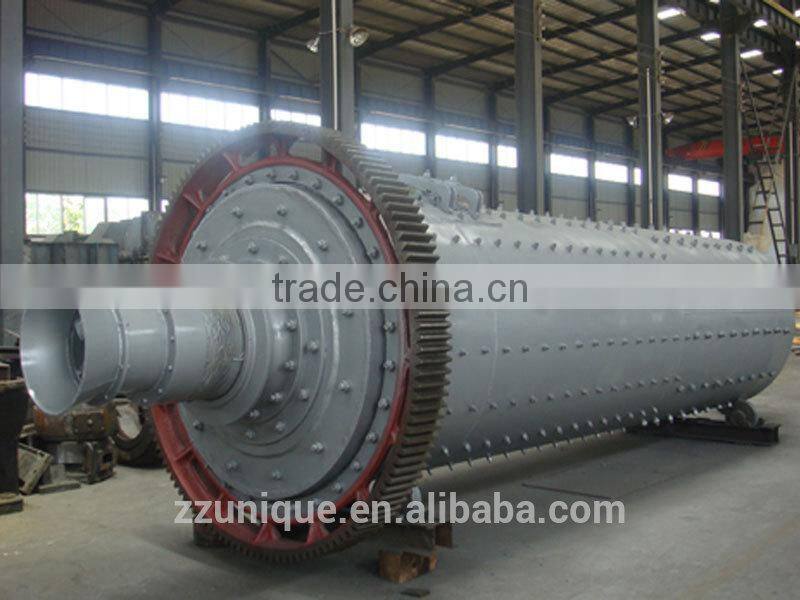

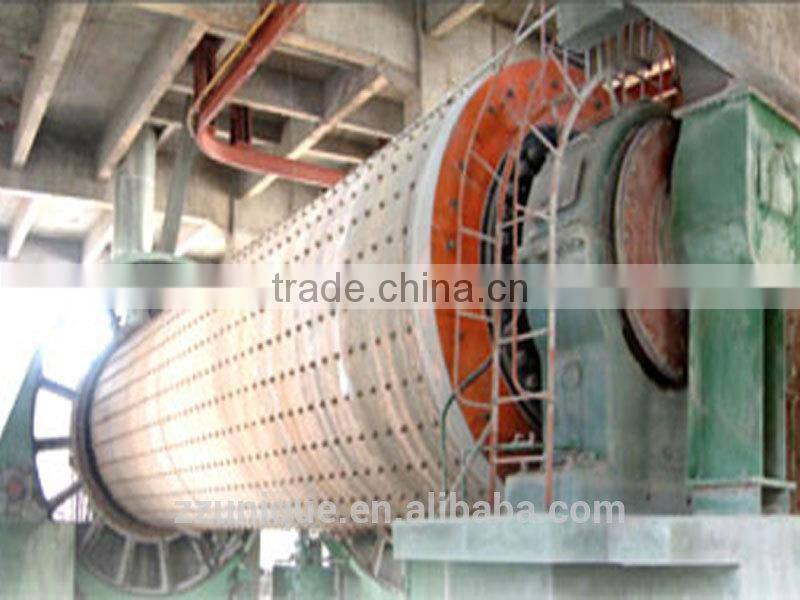

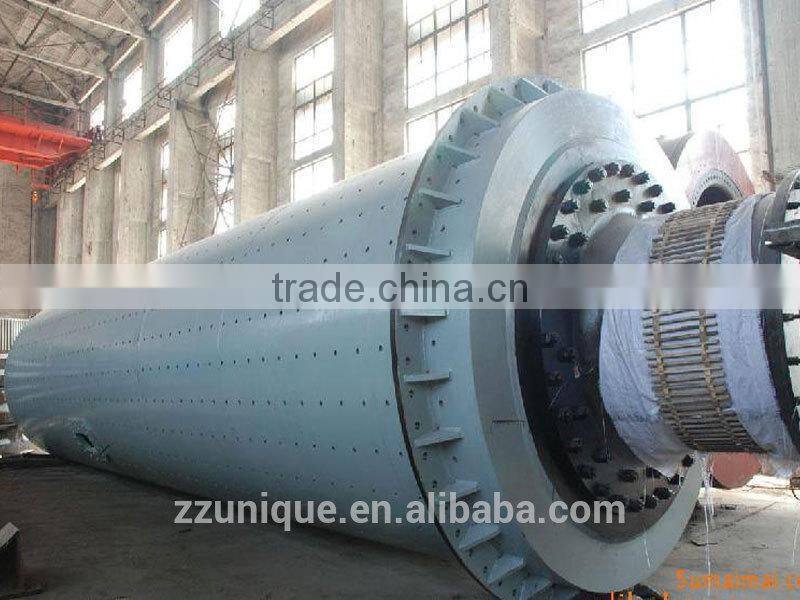

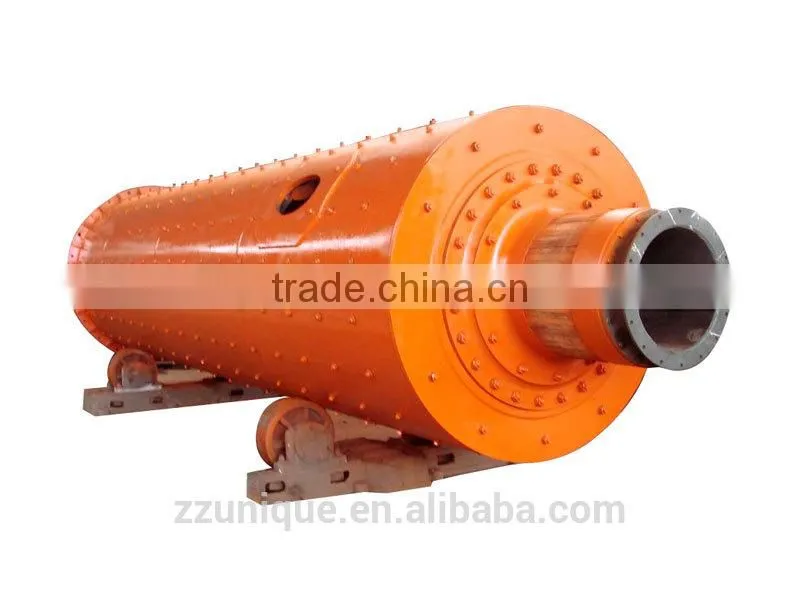

The cement mill is key equipment for the grinding process of the cement clinker after the crushing process of it. It is mainly used in the cement silicate product industry. After long term design and manufacture of the cement mill, our company now has series of cement mill with various specifications to meet with different requirement from our customers.



Features

Features of  Cement Mill Grinding Balls

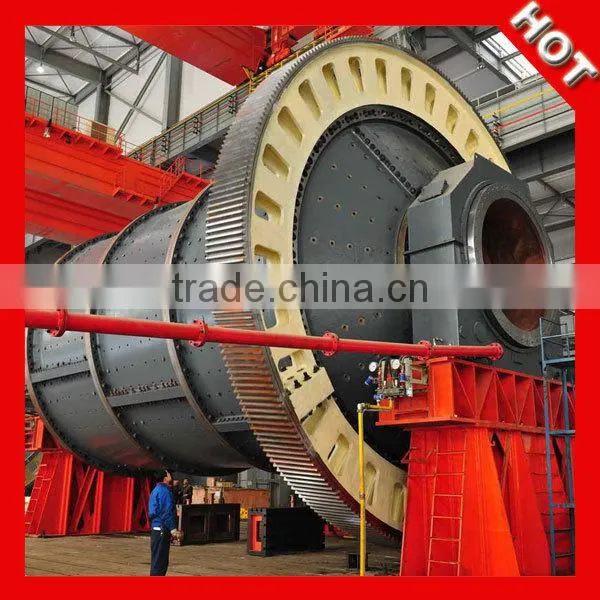

Our company adopts suitable transmission methods according to different specifications. We have brim drive and center drive as transmission form. The cylinder adopts new type step lining to increase the grinding area. And it is easily repairable and changeable. The new designed separate-chambered structure adopts flexible lifting blade and fixed lifting blade and it is easily fixed and repaired.



Working Principle of  Cement Mill Grinding Balls
The cylinder will rotate by the transmission device. Due to the inertial centrifugal force, the steel balls will stick on the liner plate and rotate with the cylinder together. When the steel balls come to a certain height, it will fall down by gravity and impact the raw material. And the repeated going-up, falling down, slide and roll of the steel balls can grind the raw material together with the liner plates.
Technical parameters





Technical Data

Technical Parameters of  Cement Mill Grinding Balls

Specification (m)	Ball Mill  Type	Transmission Type	Reducer		Motor Power(kw)	Capacity (t/h)	Weight (t)
			Model	Ratio
φ1.83×7	Open flow	Brim	ZD60	4.5	245	6.5-8	43.8
φ2.2×7.5	Circle flow	Brim	ZD70	5	380	8-10	64.8
φ2.2×11	Open flow	Central shaft	D110	35.5	630	12-13	104.6
φ2.2×13	Open flow	Central shaft	D110	35.5	630	16-18	114
φ2.4×13	Open flow	Central shaft	D110	35.5	800	20-23	130.6
φ2.6×13	Open flow	Central shaft	MFY100	19.5	1000	28-32	158
φ3×9	Circle flow	Brim	D125	41.2	1000	28-36.5	167
φ3×11	Circle flow	Central shaft	D140	42.8	1250	36-47	180
φ3.2×13	Open flow	Central shaft	D140	36.5	1600	45-50	225
φ3.5×13	Circle flow	Brim	JDX1000	5.84	2000	60-65	275
φ3.8×13	Open flow	Central shaft	MFY250	16.5	2500	60-62	320
φ4.2×13	Open flow	Central shaft	JQS3550	15.6	3530	85-87	380
φ4.6×14	Circle flow	Central shaft	JSI160-C	14.6	4200	120-135	485
