Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > IGBT Inverter MMA Welding Machine

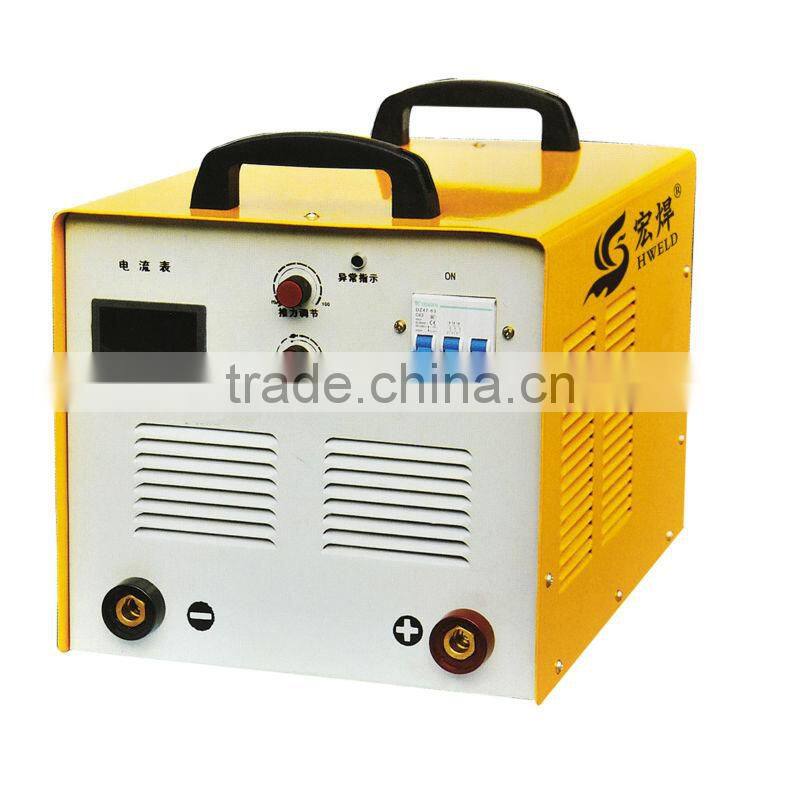

IGBT Inverter MMA Welding Machine

IGBT Inverter MMA Welding Machine photo-1
US$ 30 - 60 MOQ: 10 Packs
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
hweld
Model Number:
RY04012
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name hweld
Model Number RY04012
Arc Current 10~160
Motor Type AC Motor
Dimensions 380x150x250
Usage Weld all kinds of metal
Voltage 230+-15%
Certification CE
Warranty 1 year

Specifications

welding machine machine
IGBT Inverter MMA Welding Machine(MOS)


Product Name:IGBT Inverter MMA Welding Machine
Product Class:WELDING MACHINE

IGBT Inverter MMA Welding Machine
Product SPECIFICATION
Main Features:

1.Advanced inverter power supply saves energy;

2.Small in size and light in weight, especially suitable for outdoor mobile operation.

3.This welder inverts the 50/60Hz line-frequency current into high-frequency current of over 100Hz with large-power switching devices,which is treated with such technologies as rectification and topology,so the welder has constant current.The power conversion rate is over85%,so it is obvious in enemy saving.

4.Thrust current regulating function can solve adhesion electrode, arc breaking or splash phenomenon.Because of the depth of molten pool in different electrode and arc transition form is different, in the drip short-circuit instantaneous output current to enhance an appropriate value, can obviously improve the welding performance

5.With excellent dynamic performance,litter splash,and outstanding arc starting and drop let transition property.

6.With strong anti-interference ability,and small current fluctustion

7.Equipped with a remote-control box,so it is considerate in design and convenient in operation.

8.Suitable for welding of carbon steel,low carbon steel,and alloyed steel.

Model MMA-200 MMA-250 MMA-315 MMA-400 MMA-500
Rated Imput Voltage 230±15% 230±15% 380±15% 380±15% 380±15%
Rated Imput Capacity 6 9 20 29 40
No-load Voltage 70 70 75 75 75
Rated Welding Current 200 250 315 400 500
Rated Output Current 20-200 20-250 10-315 10-400 10-500
Rated Duty Cycle 40 60 60 60 60
Weight 7 8 16 25 26
Dimension 460*250*350 460*250*350 555*260*405 570*400*410 570*400*410
