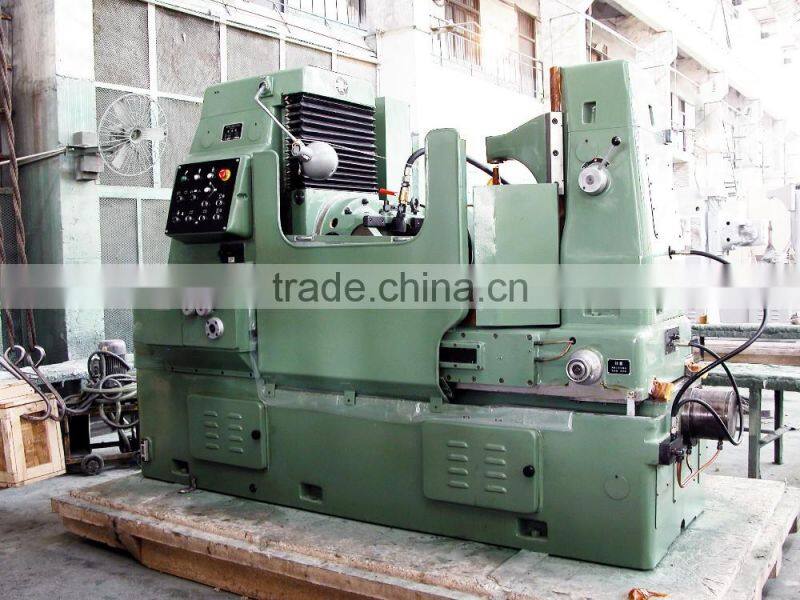

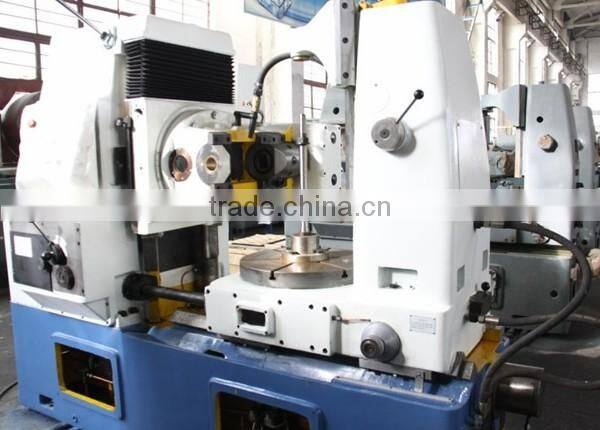

Gear Hobbing Machine Y3150E YB3180 for Dia 500 800mm, Module 8 10mm
You May Like
-
Big Gear Hobbing Machine Y31125E Y31200E Dia 1250 2000mm, Module 16mm
-
Big Gear Hobbing Machine YA31160E YQ31250E Dia 1600 2500mm, Module 20mm
-
M13 Cylindrical Grinding Machine, Grinding Dia 5-200 8-320 25-500 30-630 50-800mm
-
M14 Universal Cylindrical Grinding Machine, O.D. 5-200 8-320 25-500 30-630mm, I.D. 13-80 25-100 30-100 30-200 30-250mm
-
M71 Wheel Head Moving Surface Grinding Machine, Grinding Size From 300x1000 to 630x2200mm
-
M SG Manual Surface Grinding Machine, Table Size 155x460 210x450 150x460 200x520mm
Product Description
Gear Hobbing Machine
| Y3150E |
Max dia. of workpiece | 500mm |
Max module of workpiece | 8mm |
Max machine width of workpiece | 250mm |
Min teeth of workpiece | Zmin/K number of cutter=5 |
Max dia. and length of cutter | 160X160mm |
Dia. of changeable axis of cutter | Φ22,Φ27,Φ32mm |
Max rotary angel of headstock | 240º |
Max axial shift length of cutter | 55mm |
Distance between axis of workpiece and axis of cutter | Max 330mm min 30mm |
Distance between table and axis of cutter | Max 535mm min 235mm |
Distance between table and bearing of rear post | Max 830mm min 380mm |
Step number and range of spindle speed | 9steps, 40-250r.p.m |
Range of axial step | 0.4-4mm/ table per turn |
Dimension LXWXH | 2439×1272×1770mm |
| YB3180 |
Max dia. of workpiece | With rear post 550mm without rear post 800mm |
Max module of workpiece | 10mm |
Max machine width of workpiece | 300mm |
Min teeth of workpiece | Zmin/K number of cutter=8 |
Max dia. and length of cutter | 180mm×180mm |
Dia. of changeable axis of cutter | φ22,φ27,φ32,φ40 |
Max rotary angel of headstock | ±60° |
Max axial shift length of cutter | 60mm |
Distance between axis of workpiece and axis of cutter | max 550mm min 235mm |
Distance between table and axis of cutter | max 585mm min 235mm |
Distance between table and bearing of rear post | max 600mm min 400mm |
Step number and range of spindle speed | 8steps 40-200.p.m |
Range of axial step | 0.4-4mm/table per turn |
Dimension LXWXH | 2765×1420×1850(mm) |
