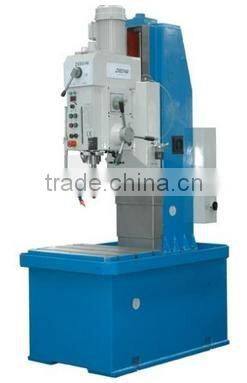

ZXB Series Square Type Vertical Drilling Machine With Dia. 40 50mm
You May Like
-
Gang Dirlling Machine Z5635x2 Dia 35mm
-
Vertical Drilling Machine SB Series Stepless Timing, With Dia. 25mm
-
Gear Hobbing Machine Y3150E YB3180 for Dia 500 800mm, Module 8 10mm
-
Big Gear Hobbing Machine Y31125E Y31200E Dia 1250 2000mm, Module 16mm
-
Big Gear Hobbing Machine YA31160E YQ31250E Dia 1600 2500mm, Module 20mm
-
M13 Cylindrical Grinding Machine, Grinding Dia 5-200 8-320 25-500 30-630 50-800mm
Product Details
| Condition | New | CNC or Not | Normal | |
| Model Number | ZXB | Certification | CE ISO |
Product Description
Vertical Drilling Machine ZXB Series Square type
Model | ZXB5150 | ZXB5140 |
Max. Drilling dia.(steel) and tapping dia.(mm) | φ50/M35 | Φ40/M28 |
Max.Distance from spindle to guideway surface (mm) | 450 | 400 |
Max.Distance between spindle end to the worktable surface .(mm) | 1050 | 880 |
Max.Travel of spindle(mm) | 280 | 200 |
Max Travel of the spindle box in up and down position (mm) | 750 | 650 |
Spindle taper bore | MT4 | MT4 |
Spindle speed steps | stepless | stepless |
Spindle speed range(r/min) | 40~1600 | 50~2200 |
Spindle feed steps | 6 | 6 |
Spindle feed range(mm/r) | 0.08~0.50 | 0.08~0.50 |
Dimension of worktable(mm) | 800×600 | 700×500 |
Numbers and width of the T slots of worktable(mm) | 3~18 | 3~18 |
Power of main motor(kw) | 3.7 | 2.2 |
Machine dimension(mm) | 1490×950×2370 | 1310×820×2200 |
Packing dimension/Net weight and gross weight | 1600×1100×2600 | 1420×980×2430 |
1350/1500kg | 1100/1300kg | |
Sets/20' Container | 6 | 8 |
