AHD/CVI/TVI Passive Transceiver Video Balun
- shenzhen
- Money Gram Credit Card
You May Like
-
Led Waterproof Power Supply Constant Voltage 12V 20W
-
Cheap 32 PCS Sewing Machine Presser Foot Feet Tool For Brother Singer Janome Domestic
-
Cheap 3pcs 11 15 18 22cm Plastic New Classic White Snowflake Ornaments Christmas Holiday Party Home Decoration
-
Cheap Lovely Wine Bottle Key Chain
-
Cheap Useful Stapler Key Chain
-
2016 New Arrival Flexible Swivel Twist Angle 360 Degree USB 2.0 Male to Female Adapter Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | YIBA | |
| Model Number | YB-VD | Type | Other | |
| Style | Other | Sensor | Other | |
| Technology | Other, transceiver video balun | Special Features | Other, cctv accessories |
Product Description

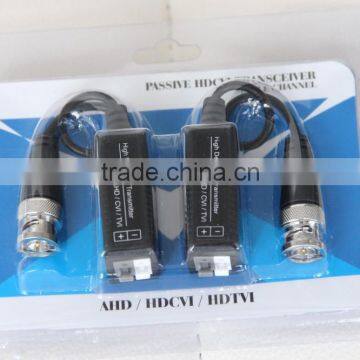

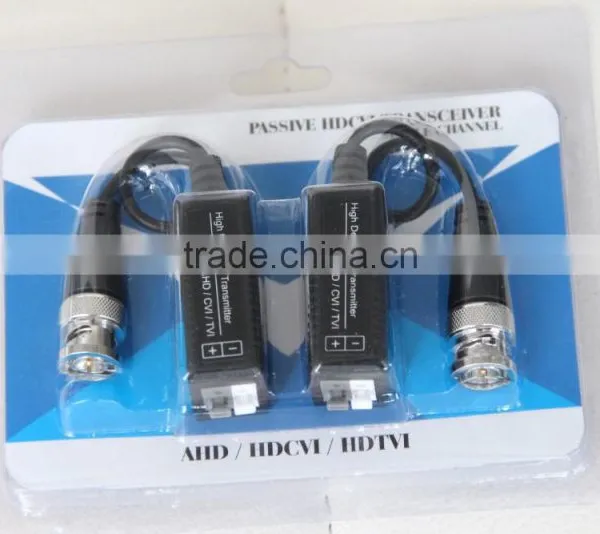

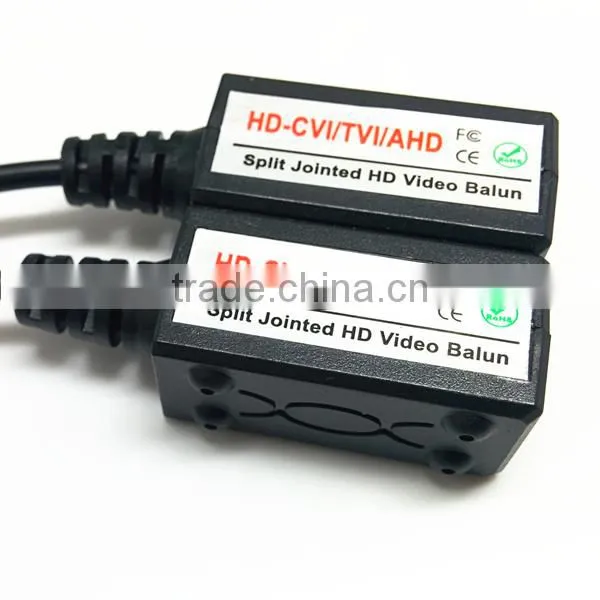

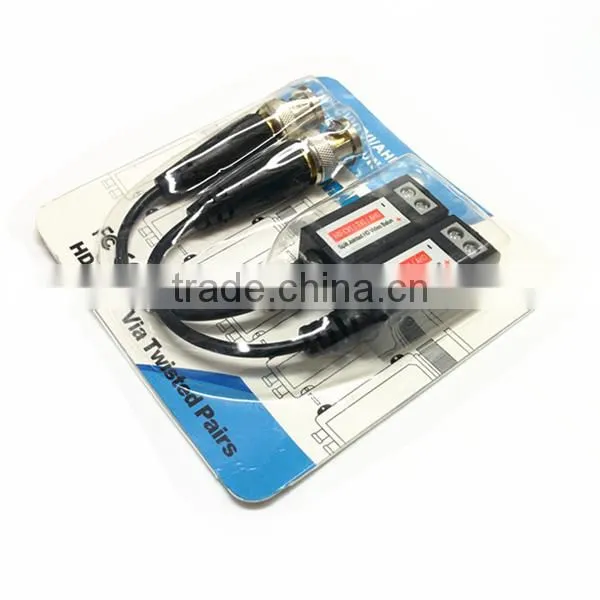

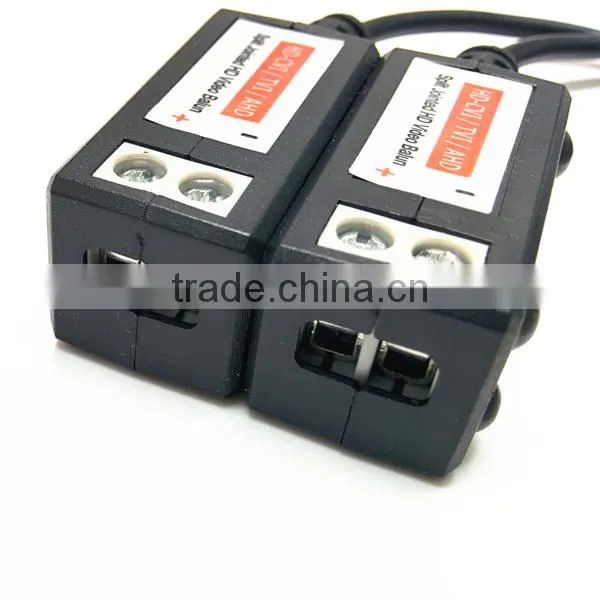

AHD/CVI/TVI passive transceiver video balun
YB-VD is a passive high definition TVI CVI AHD transmitter& receiver , small size and easy installation, transmission distance of video up to 300m,the transmission distance of power up to 100m,it is very suitable for middle distance video surveillance, such as officebuilding, community, school and hospital etc.
l Real-time Transmission over UTP cat5e/6
l Compatible with all HD-TVI,CVI and AHD analog camera
l Stackable Design, Extend One Channel to Multi-Channel
l RJ45 Jack for UTP cable
l Built-in Surge and Lightning Protection
l Super Interference Rejection
Model | YB-VD | |
Video | Video Format | PAL, NTSC, SECAM |
Operating Frequency | DC to 42MHz | |
Max Distance | 720P 300m | |
1080P 200m | ||
Common-mode/Differential-mode Rejection | 15KHz to 42MHz 60 dB typ | |
Impedance | Coax, Male BNC 75 ohms unbalanced UTP, RJ45 100 ohms balanced | |
Attenuation | 1.5 dB typ Max | |
Wire Type | Network Wiring | One Unshielded Twisted Pair(for each video signal) 24-16AWG(0.5-1.31mm) |
Category Type | 2 or better | |
Impedance | 100±20 ohms | |
DC Loop Resistance | 52 ohms per 1000ft(18 ohms per 100m) | |
Differential Capacitance | 19 pF/ft max(62 Pf/m max) | |
Power | Power Input | No external Power Required |
Power Transmission | 12VDC/24VAC, via UTP CAT5E/6 | |

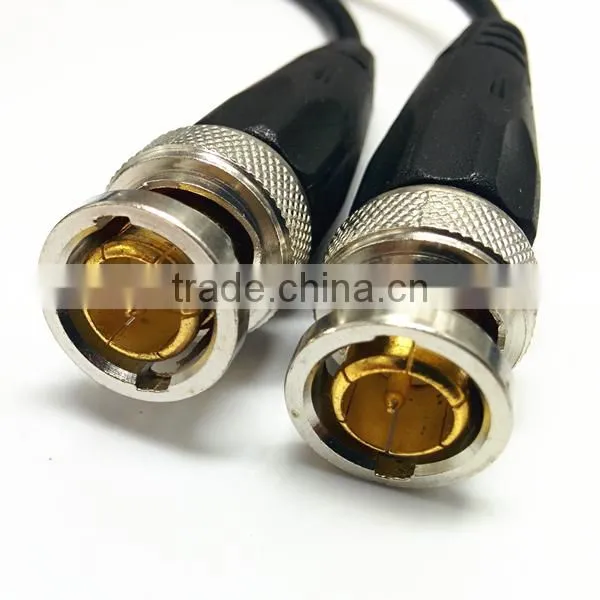

Connector | Video Input/Output | Male BNC Connector |
Video Input/Output | RJ45 Jack | |
Protection | Surge Protection | Remewable Solid State Surge Protection |
Video Input | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999) | |
Video Output | 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999) | |

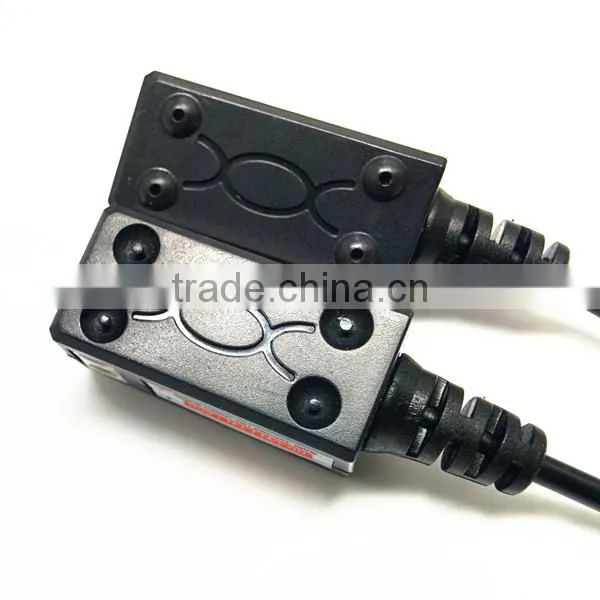

Mechanical | Housing | ABS engineering plastic |
Body Color | Black | |
Dimensions(L*W*H) | 60*30*21MM | |
Net Weight | 60g | |
Environmental | Operating Temperature | -20 ~ 70 |
Relative Humidity | 0~95%(non-condensing) | |
Storage Temperature | -40 ~ 150 ℃ | |
Applied Devices | CCTV Cameras , Monitors, DVR and other CCTV equipments | |
