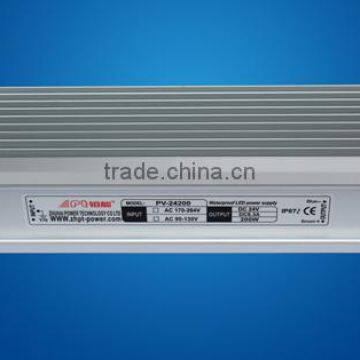

Led Waterproof Power Supply Constant Voltage 24V 200W

US$ 25.24 - 25.24 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

PV-24200

Output Type:

Other, AC, Single

Shenzhen E-18th Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

GUANGZHOU SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number PV-24200

Output Type Other, AC, Single

Connection Plug In

Product Description

1.The Voltage design (Voltage current mode).

2. The use of the AC input.

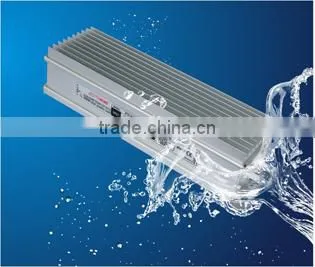

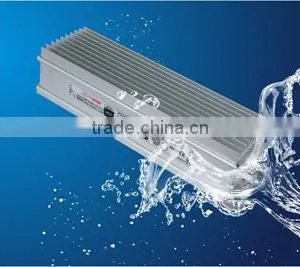

3. comply with IP67 rating.

4.Enter the time withstand 300VAC surge for 5 seconds.

5. Protection: Short circuit / overload / overvoltage.

6. Cooling: natural air cooling.

7.100% full load test.

8. High Performance.

Product Specifications
Products Model		PV-12200	PV-24200
Output	Output Voltage	12V±0.5V	24V±0.5V
	Rated Output Voltage	12V	24V
	Output current	0-16.6A	0-8.33A
	Power	200W
	Voltage Precision	12V±0.5V	24V±0.5V
	Output Ripple	240mVP-P	480mVP-P
	Load Reulation	±2%
	Start/Rise time	500ms,20ms/230VAC
	Retention time	20ms/230VAC
Input	Input Voltage range	AC:90-130V / AC:100-240V
	Input Frequency range	50-60HZ
	FP values	≥0.9
	Effeciency	>85%
	Leak Current	0.25mA/240VAC
Protection	Overload Protection	±5% Rated Current output
		Constant current restriction style protection
	Over Voltage protection	110%-150%
Working Protection	Working Temperature	-25℃-50℃
	Storage Temperature	-40℃-80℃
	IP Rate	90%RH non condensing, refer to IP67
	Shake Proof	10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
	Temperature Coefficient	±0.03%℃ (0-50℃)
EMC	Security Standard	IP67 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008
	Withstand voltage	I/P-O/P:3.75KVAC,I/P-COVER:3.75KVAC,O/P-COVER:500VAC
	Insulatuon Resistance	I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009
Others	Mean Free Error Time	50KHours (25℃)
	Dimesnsion	2726856(LWH)
	Weight	1500g
