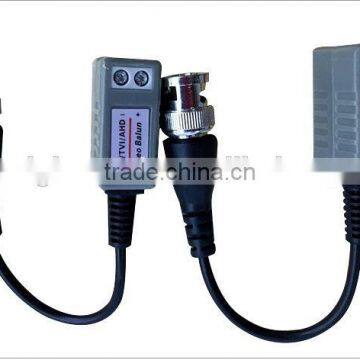

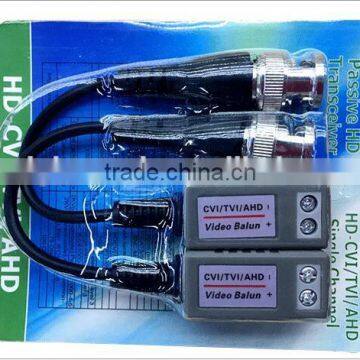

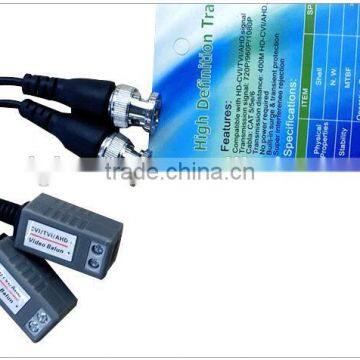

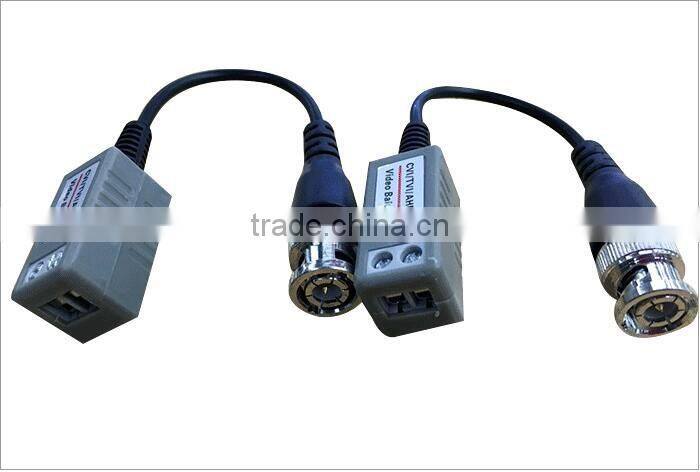

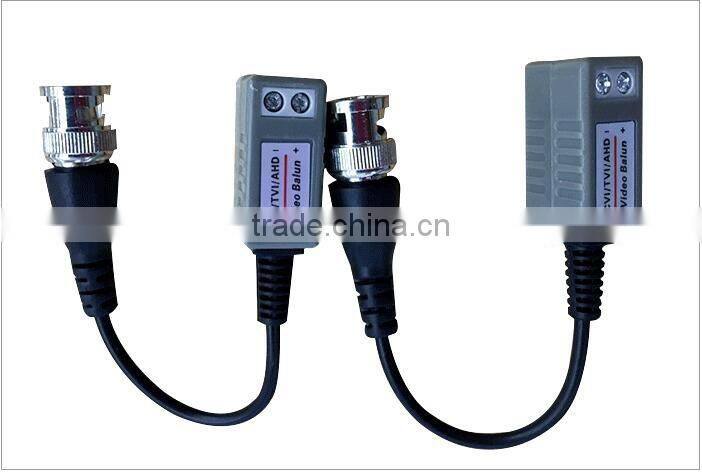

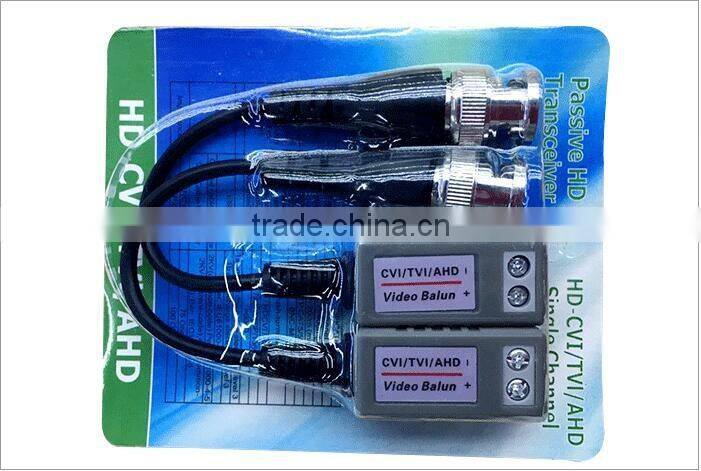

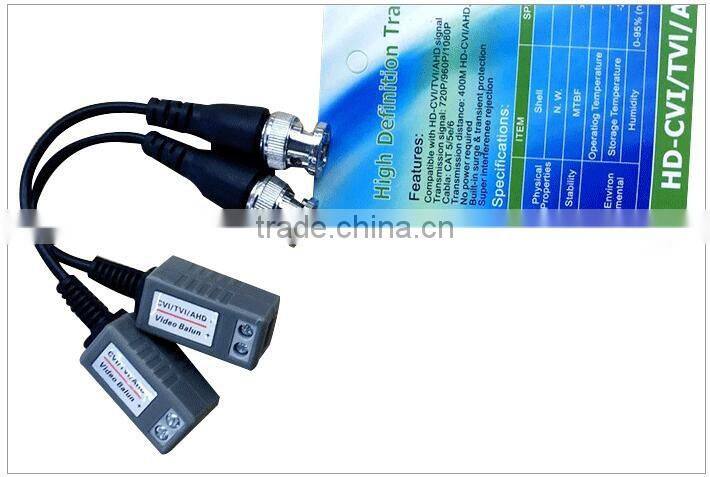

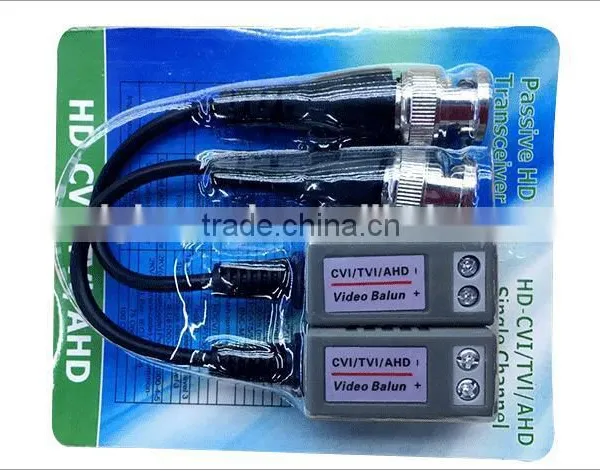

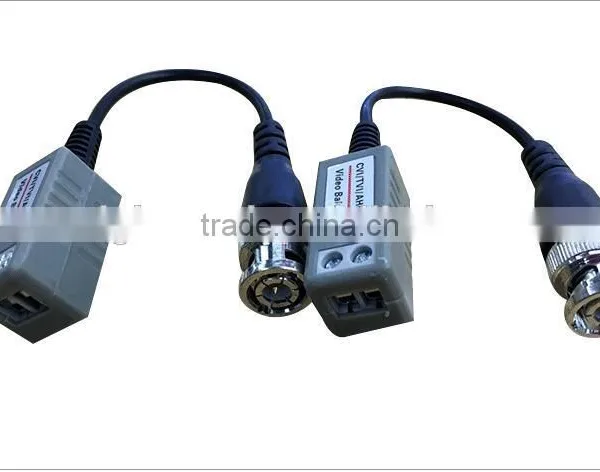

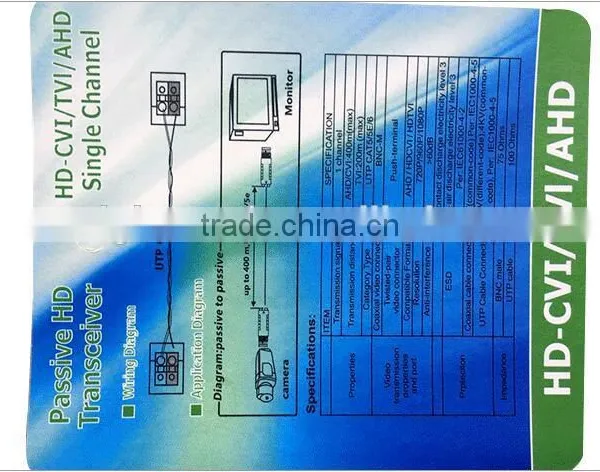

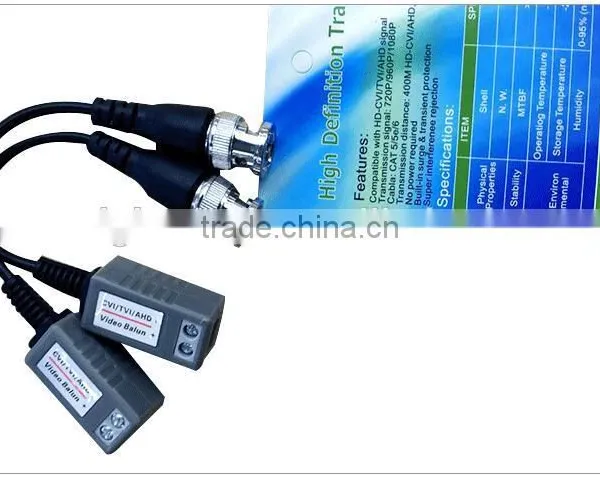

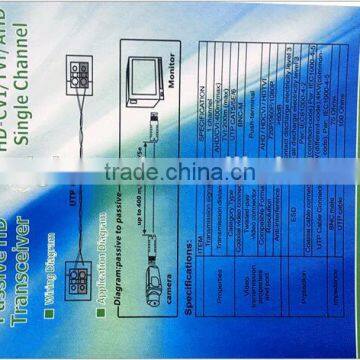

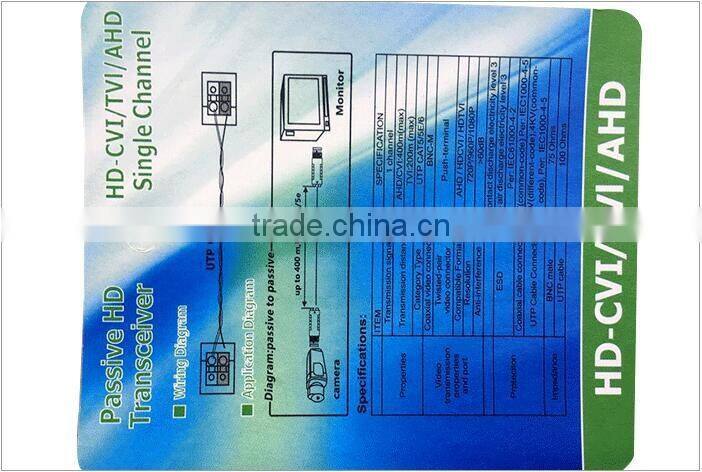

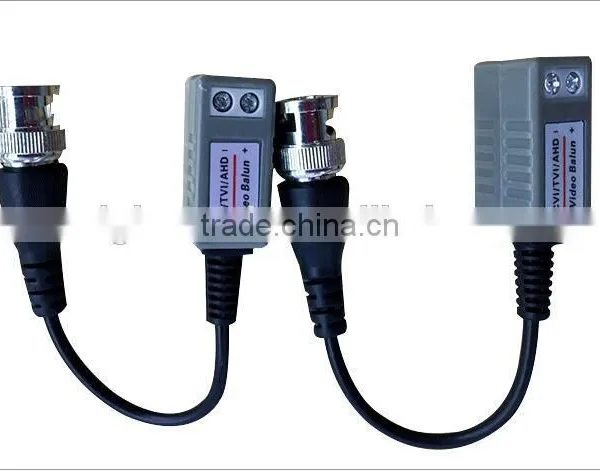

1 Channel Passive HD-CVI/AHD UTP Video Balun, Video Transceiver, Twisted Pair Transmitter

Model

YB-202P

Video

Video Format

PAL, NTSC, SECAM

Operating Frequency

DC to 42MHz

Max Distance

720P 300m

1080P 150m

Common-mode/Differential-mode Rejection

15KHz to 42MHz    60 dB typ

Impedance

Coax, Male BNC 75 ohms unbalanced

UTP, RJ45  100 ohms balanced

Attenuation

1.5 dB typ Max

Wire Type

Network Wiring

One Unshielded Twisted Pair(for each video signal)

24-16AWG(0.5-1.31mm)

Category Type

2 or better

Impedance

100±20 ohms

DC Loop Resistance

52 ohms per 1000ft(18 ohms per 100m)

Differential Capacitance

19 pF/ft max(62 Pf/m max)

Power

Power Input

No external Power Required

Power Transmission

12VDC/24VAC, via UTP CAT5E/6

Connector

Video Input/Output

Male BNC Connector

Video Input/Output

RJ45 Jack

Protection

Surge Protection

Remewable Solid State Surge Protection

Video Input

2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)

Video Output

2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)

Mechanical

Housing

ABS engineering plastic

Body Color

Black

Dimensions(L*W*H)

60*30*21MM

Net Weight

60g

Environmental

Operating Temperature

-20 ~ 70

Relative Humidity

0~95%(non-condensing)

Storage Temperature

-40 ~ 150 ℃

Applied Devices

CCTV Cameras , Monitors, DVR and other CCTV equipments
