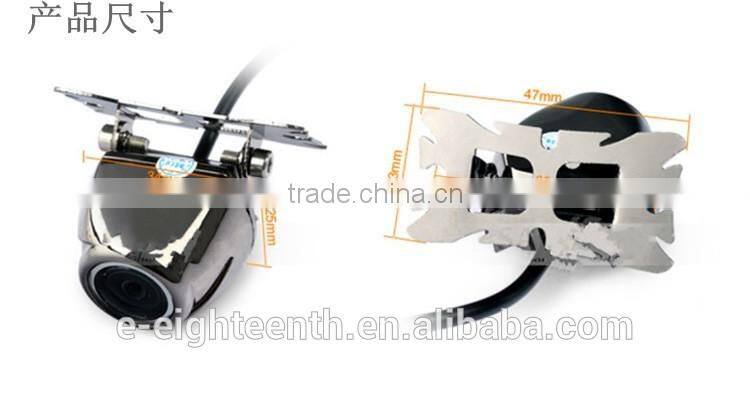

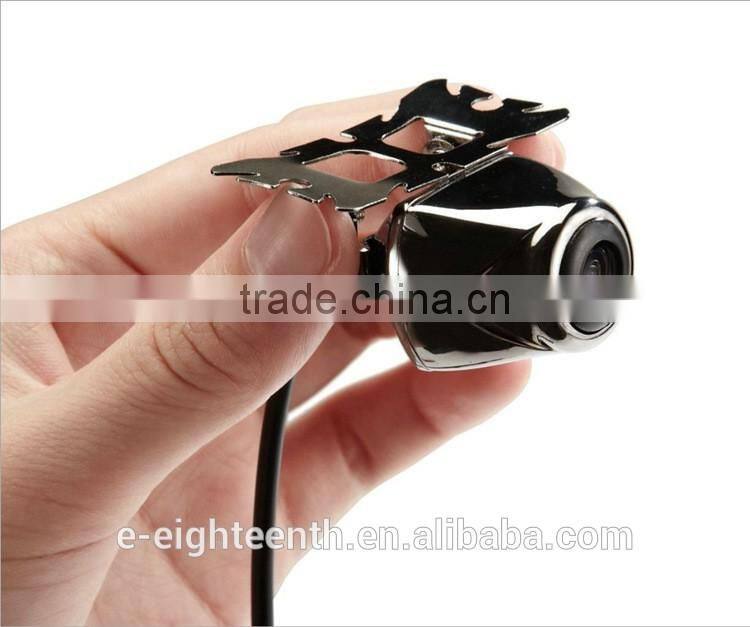

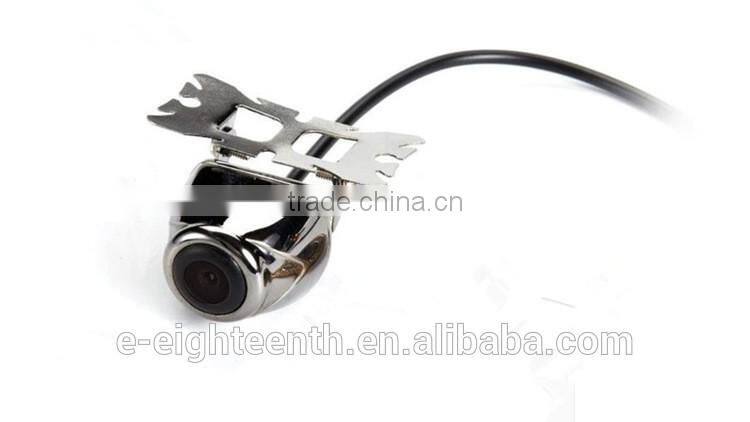

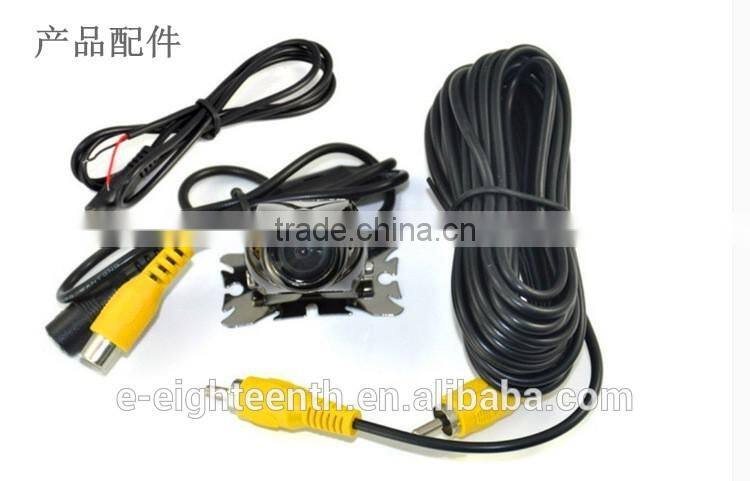

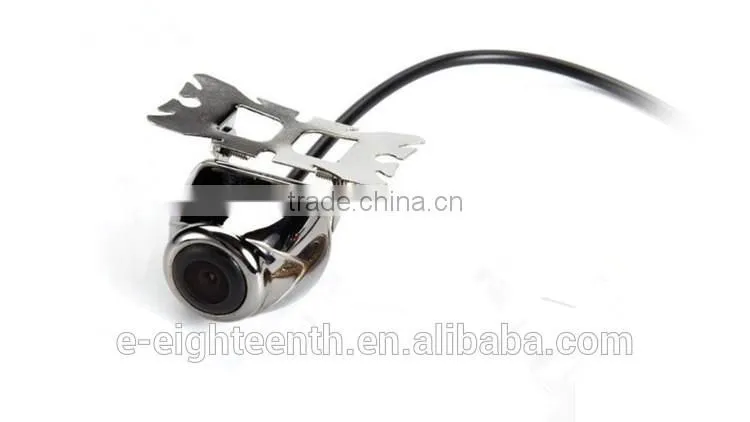

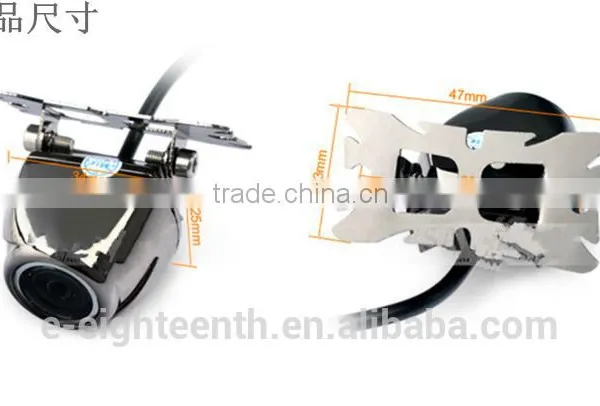

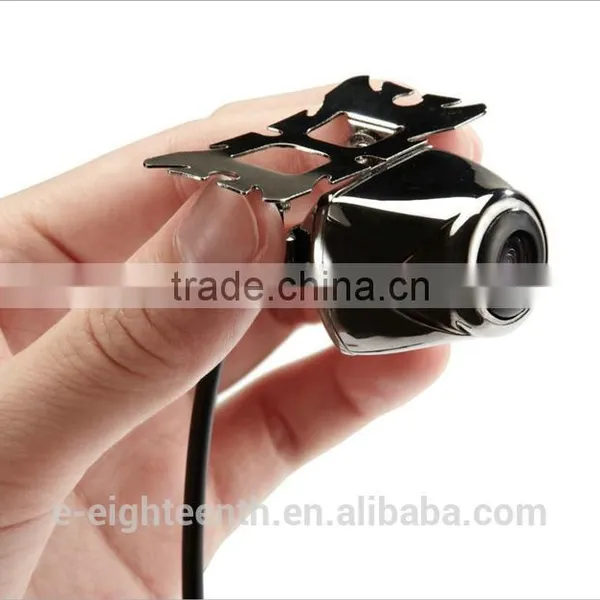

2016 Car Color CMOS/CCD RearView Backup Camera for Monitor DVD GPS NTSC

Description:

• 100% Brand New and High Quality.

•  Quantity: 1sets

•  Imaging chip: 1/4 color cmos.

•  Effective pixels: NTSC:  510 X496 pixels.

•  Waterproof design for outdoor use.

• Sensing area: 5.96 4.27mm.

• Scanning System: 2:1 interlace.

• Sync System: internal.

• Resolution: 420 TV lines.

• Minimum illumination: 0.2Lux/F1.8(0 Lux with LED)

• Lens Angle:2.8mm/120  -1.8mm/170

• S/N ratio: more than 48db(AGC-OFF).

• Electronic shutter: 1/50-1/10000 seconds.

• Video output: RCA connector 1.0vp-p, 75ohm.

• Waterproof: IP67-IP68.

• Current consumption: <=300mA.

• Power supply: DC 12V±10%.

• Operating temperature: -20 to 60 degrees centigrade, RH95%.

• Storage temperature: -30 to 60 degrees centigrade, RH95% Max.

• Other items: Automatic white balance, AGC and BLC.

• Net Weight: Approx 165g

•  Easy and Convenient to use


•
