Specifications

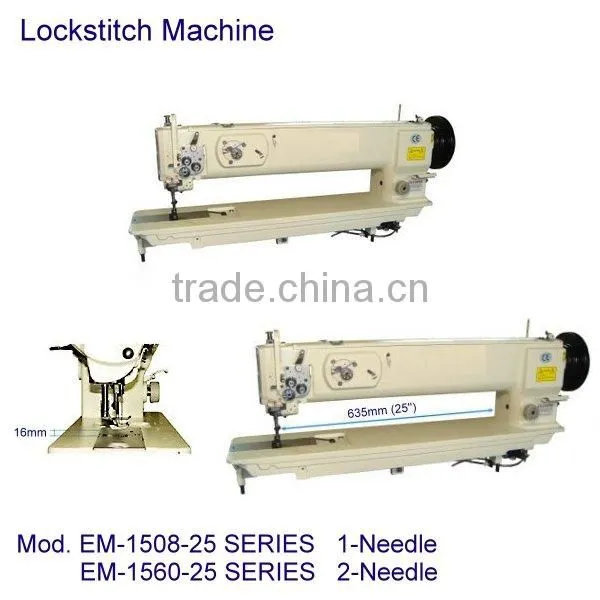

Multi-Needle Shirring / Smocking Sewing MachineMod. EM-1508-25 SERIES 1-Needle
EM-1560-25 SERIES 2-Needle
Long Arm (25"), Unison-Feed, Lockstitch Machine with Vertical-axis Large Hook (automatic lubricating mechanism
＊EM-1508-25 for heavy materials
＊EM-1508HN-25 with automatic lubricating mechanism
＊EM-1508NH-25-T for thick thread (#0)
＊EM-1508NH-25-FL ..with pneumatic auto-lifter
＊EM-1508NH-25-BT.. with automatic backtack and auto-lifter
＊EM-1560-25 for heavy materials
＊EM-1560-25-T .. for thick thread (#0)
＊EM-1560-25-FL .. with pneumatic auto-lifter
＊EM-1560-BT with automatic backtack and auto-lift
FEATURES:
＊The machine is provided with 635mm (25") of working space. It is ideally suited to sewing
processesrequire a larger space under the arm. Typical examples are the sewing of canvases
and furniture.
＊With the adoption of a new rectangular feed mechanism, an alternating vertical movement
mechanism, and a unison-feed mechanism, the machine can feed heavy materials powerfully and
smoothly. Well tensed seams are consistently produced without pitch errors.
＊The maximum stitch length is 9mm. The complete rectangular feed locus enables accurate feed of
extra heavy materials while preventing stitch gathering.
＊With its sufficient needle bar stroke of 38mm and long 190R needle, the machine supports the
sewing of extra heavy materials.
＊The machine is equipped as standard with a safety clutch for preventing hook breakage. Reset
work can be done simply by pressing a button.
SPECIFICATIONS:
Max. Sewing Speed | 1,800 s.p.m. | Needle | Organ DPx17 #23 |
Max. Stitch Length | 9mm | Needle System | #20 ~ #25 |
Lift of the Presser Foot | 9mm by Hand | Thread | #20 ~ #1 |
Alternating Vertical Movement | 2.5 ~ 6.5mm | Lubrication | Automatic |
Needle Gauge (EM-1560-25)
| 4.8mm,6.4mm,7.9mm,9.5mm,12.7mm other needle gauge also available | Motor | Clutch Motor, 1/2HP, 4P |
Needle Bar Stroke | 38mm | N.W. / G.W. | 78 / 88 KGS |
Working Space | 635mm | Meas. | 0.28 CBM |
