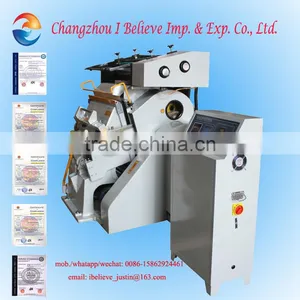

Help CenterComputerized Hot Stamping Die Cutting Machine
Related Products
-
ML1400 FLAT PRESSING SLITTING SCORERNegotiableMOQ: 1 Set -
GS650 Automatic Window Patching MachineNegotiableMOQ: 1 Set
-
GS1100 Automatic Die-cutting and Creasing MachineNegotiableMOQ: 1 Set
-
GS1450 Automatic Flute Laminator MachineNegotiableMOQ: 1 Set
-
GS1450AC Automatic Folder and Gluer Carton MachineUS$ 64,000 - 78,000MOQ: 1 Set
Specifications
1 Manual operate
2 Easy stacking
3 Convenient adjustment
4 Reasonable price
5 Desirable quality
1.Usage:
This Hot foil stamping and cutting machine/Hot press gold stamping machine
is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc.It is suitable for thermo printing various paper products with electrochemical aluminum(Aluminum Foil) and also used as a creasing and die cutting machine for
mould cutting and creasing cardboardcases and boxes. Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for
obtaining stereoscopic exquisite and beautiful packing and decorating
2.Features:
1.High strength due to one-piece casting by using top-ranking materialfor machine body.
2.Single plate electromagnetic clutch is sensitive and reliable.
3.Computer controlled is stable to get higher quality stamping effect
4.Operation height is reasonable arranged,moving-bed is optimum.
5.Accurate skip makes saving foil.
6.With three functions of continuous creasing and cutting, opening dwell operation
and closing dwell operation and a large dwell adjusting range.
7.Safety protection system is reliable.
8.This machine has three functions:Creasing ,cutting ,stamping in the same time.
9.Centralized lubrication system get better lubrication and less abrasion.
3.Technical parameter:
Model |
TYMB750 |
TYMB930 |
TYMB1040 |
TYMB1100 |
|
Max.Platen area available |
750*520 mm |
930*670(mm) |
1040*720(mm) |
1100*800(mm) |
|
Max.Stamping area available |
740*510mm |
930*640(mm) |
1040*720(mm) |
1080*780(mm) |
Range of skip order |
Built-in Processing With Computer |
Built-in Processing With Computer |
Built-in Processing With Computer |
Built-in Processing With Computer |
Working pressure |
150(T) |
170(T) |
120(T) |
220(T) |
Foil-delivered length |
500(mm) |
640(mm) |
720(mm) |
800(mm) |
Foil-delivered group |
2(groups) |
3(groups) |
3(groups) |
3(groups) |
Working speed |
1300(strokes/h) |
1300(strokes/h) |
1200(strokes/h) |
1200(strokes/h) |
Main motor power |
2.2(kw) |
4(kw) |
5.5(kw) |
5.5(kw) |
Total power |
10(kw) |
13(kw) |
15.5(kw) |
19(kw) |
Net weight |
2500(kg) |
3500(kg) |
4400(kg) |
5000(kg) |
Dimension |
1360*1640*1600mm |
1850*2200*2150mm |
1900*1800*1800(mm) |
2250*2200*2000(mm) |
