China Shuguang Factory G30 Electro Galvanized Long Link Chain

Name: China Shuguang Factory G30 Electro Galvanized Long Link Chain
Brand: SHUGUANG
Availability: InStock

FOB Price

US$ 1,000 - 2,300 / Ton

1 Ton(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	SHUGUANG
Model Number	Ordinary Long Link Chain	Structure	Welded Chain
Function	Drag Chain	Material	Other, Q235,Q195,Carbon Steel
Standard or Nonstandard	Standard

Product Description

Specifications

1.Ordinary Long Link Chain
2.Certificate:ISO9001:2008
3.High Strength
4.Surface:Galvanized

1.About Us:

1)We have strong technical force,advanced equipment.

2)We produce regular steel link chains,high tensile chains,stainless chains.

knotted chains and animal chains,covering over 300 sizes and specifications.

3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.

2.Brief Introduction:

1)M.O.Q:1Ton

2)Material:Q235,Q195,Carbon Steel,20Mn2.

3)Packaging:Gunny Bag,Steel Drum,Wooden Case,Pallet

4)Payment: L/C,T/T,Western Union

5)Trade Terms:FOB,CIF,CFR

6)Surface:Self Color,Zinc Plated,Black,HDG

7)Delivery Time:Within 30 days after received the 30% in advance by T/T

3.Specification:

Ordinary Long Link Chain:

Link Specification				Test Load	Breaking Load	Net WT Per 200FT (KG)
D		L	W	Test Load	Breaking Load	Net WT Per 200FT (KG)
IN	MM	MM	MM	KG	KG	B.F	H.D.G
1/8	3.20	23	12	200	400	10.40	10.70
5/32	4.00	27	15	300	600	16.60	17.50
3/16	4.70	31	17	400	800	22.40	23.30
7/32	5.50	32	19	550	1100	32.00	33.00
1/4	6.35	33	21	750	1500	43.50	44.80
5/16	7.94	48	31	1200	2400	68.00	70.00
3/8	9.50	60	37	1700	3400	96.00	99.00
7/16	11.11	71	41	2300	4600	126.00	129.00
1/2	12.70	85	48.5	3000	6000	167.00	172.00
5/8	15.80	114	61.5	4700	9400	256.00	264.00
3/4	19.00	125	75	6800	13600	381.00	392.00
7/8	22.20	140	88	9250	18500	527.00	543.00
1	25.40	155	100	12150	24300	696.00	716.00

4.We can offer the following products:

1)Weldless chain

2)Animal chain

3)Stainless steel link chain

4)G30 proof coil chain

5)Ordinary mild steel link chain

6)Norwegian standard link chain

7)Korean standard link chain

8)NACM1990 standard link chain

9)ASTM80 standard link chain

10)NACM96 standard link chain

11)Australian standard link chain

12)DIN5685,DIN764,DIN763,DIN766

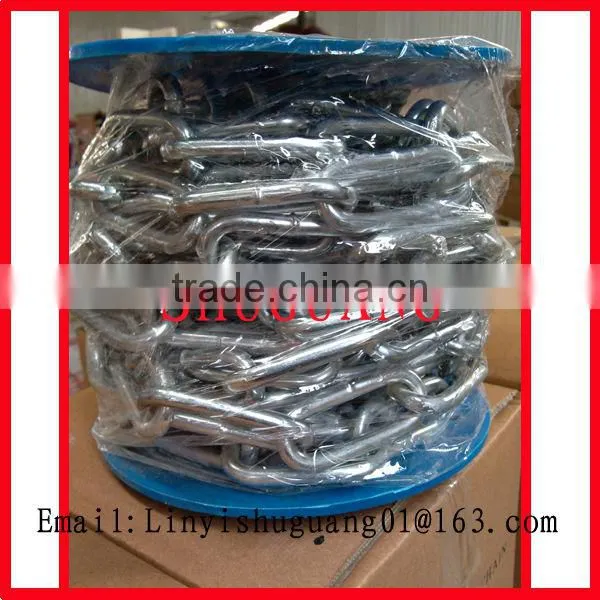

5.Products Pictures:

6.Factory and Equipment:

7.Packaging & Shipping:

And we can pack according to your requirements
