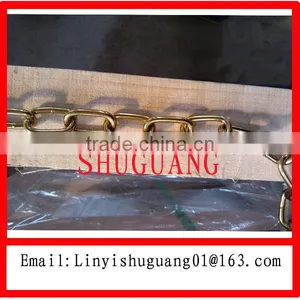

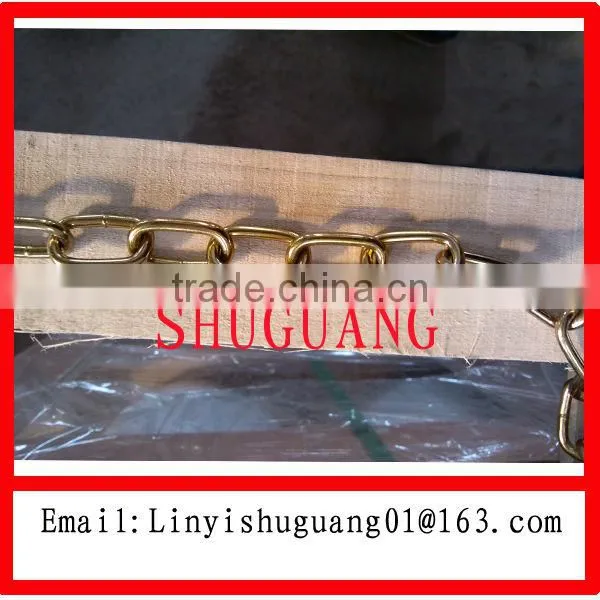

Help CenterLinyi Shuguang Electric Galvanized Yellow Welded Medium Link Chain
Related Products
-
Smooth Welded Ordinary Industry Chain With Electric GalvanizedUS$ 1,302 - 2,860MOQ: 1 Ton -
G30 Electro Galvanized Short Link ChainUS$ 1,000 - 2,000MOQ: 1 Ton
-
G30 Electric Galvanized Golden Link Chain,Zinc Plated Yellow Link ChainUS$ 1,203 - 1,862MOQ: 1 Ton
-
G30 Standard Electro Galvanized Welded Iron ChainUS$ 1,980 - 2,537MOQ: 1 Ton
-
Zinc Plated Golden Ordinary Short Link Chain,Hot Dip Galvanized Ordinary Short Link ChainUS$ 1,302 - 2,350MOQ: 1 Ton
Specifications
1.Ordinary Medium Link Chain2.Certificate:ISO9001:2008
3.High Quality
4.Surface:Galvanized
1)We have strong technical force,advanced equipment.
2)We produce regular steel link chains,high tensile chains,stainless chains.
knotted chains and animal chains,covering over 300 sizes and specifications.
3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.
1)M.O.Q:1Ton
2)Material:Q235,Q195,Carbon Steel,20Mn2.
3)Packaging:Gunny Bag,Steel Drum,Wooden Case,Pallet
4)Payment: L/C,T/T,Western Union
5)Trade Terms:FOB,CIF,CFR
6)Surface:Self Color,Zinc Plated,Black,HDG
7)Delivery Time:Within 30 days after received the 30% in advance by T/T
Specification:
Ordinary Medium Link Chain:
| Link Specification |
Test Load |
Breaking Load |
Net WT Per 200FT (KG) |
||||
| D | L | W | |||||
| IN | MM | MM | MM | KG | KG | B.F | H.D.G |
| 1/8 | 3.20 | 20 | 12 | 200 | 400 | 10.80 | 11.00 |
| 5/32 | 4.00 | 23 | 15 | 300 | 600 | 17.40 | 18.00 |
| 3/16 | 4.70 | 25 | 18 | 400 | 800 | 24.40 | 25.00 |
| 7/32 | 5.50 | 26 | 19 | 550 | 1100 | 34.00 | 35.00 |
| 1/4 | 6.35 | 26 | 23 | 750 | 1500 | 48.80 | 50.00 |
| 5/16 | 7.94 | 32 | 29 | 1200 | 2400 | 76.00 | 78.00 |
| 3/8 | 9.50 | 35 | 35 | 1700 | 3400 | 111.00 | 114.00 |
| 7/16 | 11.11 | 38 | 38 | 2300 | 4600 | 154.00 | 158.00 |
| 1/2 | 12.70 | 50 | 45.5 | 3000 | 6000 | 194.00 | 200.00 |
| 5/8 | 15.80 | 60 | 56.7 | 4700 | 9400 | 303.00 | 312.00 |
| 3/4 | 19.00 | 76 | 69 | 6800 | 13600 | 432.00 | 445.00 |
| 7/8 | 22.20 | 90 | 80 | 9250 | 18500 | 586.00 | 603.00 |
| 1 | 25.40 | 105 | 95 | 12150 | 24300 | 770.00 | 792.00 |
We can offer the following products:
1)Weldless chain
2)Animal chain
3)Stainless steel link chain
4)G30 proof coil chain
5)Ordinary mild steel link chain
6)Norwegian standard link chain
7)Korean standard link chain
8)NACM1990 standard link chain
9)ASTM80 standard link chain
10)NACM96 standard link chain
11)Australian standard link chain
12)DIN5685,DIN764,DIN763,DIN766
Products Pictures:
Factory and Equipment:
Reel+Pallet/Wooden
Steel Drum+Pallet
Wooden Case+Pallet
Gunny Bag+Pallet
Plastic Drum+Pallet
Carton+Pallet
And we can pack according to your requirements
