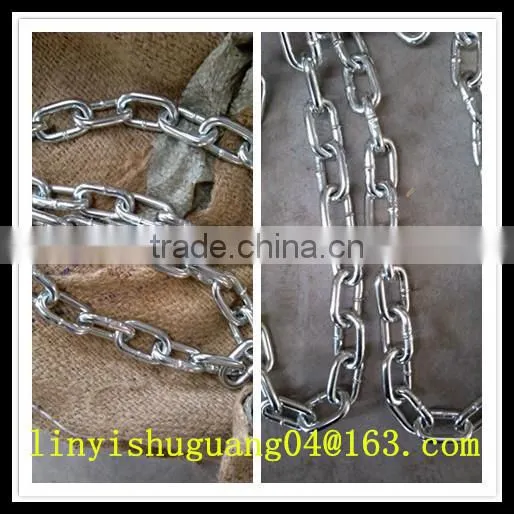

Grade 30 Galvanized Transport Chain for Sales
- qingdao shanghai
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | shu guang | |
| Model Number | 2-32mm | Structure | Welded Chain | |
| Function | Drag Chain | Material | Alloy | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
1.Grade: grade 70 galvanized chain2.Certificate:ISO9001:2008
3.High Quality
4.Surface:Self Color,Zinc Plated,Black,HDG
Grade 70 Galvanized Transport Chain for sales
We are specialized in supplying high strength chain, alloy steel hoist chain, transport chain, proof coil link chain and chain sling to satisfy your different lifting requirements. We produce link chains by automatic bending, trimming and welding machines, and automatic test machine. Our link chains have been exported to Korea, Canada, Colombia, Italy, South Africa, United State etc
1) Grade:G70 transport chains
2) Surface treatment: yellow galvanized, yellow chromate, black oxide etc.
3) Material: 20Mn2, 25Mnv (alloy steel chains, mild steel chains, welded lashing chains, transport chains, lifting chains, load chains)
4) Standard: National Standard (GB/T20947-2007), International Standard (ISO3077-2001), American Standard (NACM, ASTM), European Standard (EN818), AS/NZS Standard
G70 Transport Chain of ASTM80:
TRADE SIZE | MATERIAL DIAMETER | WORKING LOAD LIMIT | PROOF TEST | BREAKING FORCE MINIMUM | MAX LENGTH PER 100 LINKS | MAX WEIGHT PER 100 FEET | ||||||
in | mm | lbs | kg | lbs | kn | lbs | kn | in | m | lbs | kg | |
1/4 | 0.281 | 7.1 | 3150 | 1430 | 6300 | 28.0 | 12600 | 56.1 | 98 | 2.49 | 84 | 38 |
5/16 | 0.343 | 8.7 | 4700 | 2130 | 9400 | 41.8 | 18800 | 83.6 | 110 | 2.79 | 120 | 54 |
3/8 | 0.406 | 10.3 | 6600 | 3000 | 13200 | 58.7 | 26400 | 117.4 | 134 | 3.40 | 176 | 80 |
1/2 | 0.531 | 13.5 | 11300 | 51300 | 22600 | 100.5 | 45200 | 201.1 | 160 | 4.06 | 300 | 136 |
G70 Transport Chain of NACM90:
NOMINAL SIZE | MATERIAL DIAMETER | WORKING LOAD LIMIT | PROOF TEST (MIN) | BREAKING FORCE MIN | INSIDE LENGTH | INSIDE WIDTH | |||||||
mm | in | mm | in | kg | lb | kn | lb | kn | lb | mm | in | mm | in |
7.0 | 1/4 | 7.0 | 0.276 | 1430 | 3150 | 27.0 | 6100 | 53.9 | 12100 | 31.5 | 1.24 | 9.8 | 0.38 |
8.0 | 5/16 | 8.7 | 0.343 | 2130 | 4700 | 41.6 | 9400 | 83.5 | 18800 | 33.5 | 1.29 | 12.2 | 0.48 |
10.0 | 3/8 | 10.0 | 0.394 | 2990 | 6600 | 55.0 | 12400 | 110.0 | 24700 | 35.0 | 1.38 | 14.0 | 0.55 |
13.0 | 1/2 | 13.0 | 0.512 | 5130 | 11300 | 92.9 | 20900 | 185.8 | 41800 | 45.5 | 1.79 | 18.2 | 0.72 |
16.0 | 5/8 | 16.0 | 0.630 | 7170 | 15800 | 140.4 | 31600 | 280.8 | 63200 | 56.0 | 2.20 | 20.0 | 0.79 |
Plywood case + pallet, steel drum + pallet, gunny bag + pallet, or according to customer's requirement
