Linyi Hedong Shuguang Rigging Factory: Linyi, Shandong, China; Main products: rigging, link chain, lashing chain, welded link chain, anchor chain

Home > Products > DIN766 Link Chain > Linyi Shuguang Germany Standard DIN766 Welded Link Chain

Linyi Shuguang Germany Standard DIN766 Welded Link Chain

Name: Linyi Shuguang Germany Standard DIN766 Welded Link Chain
Brand: Shuguang
Availability: InStock

FOB Price

US$ 1,000 - 3,000 / Ton

1 Ton(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Shuguang
Model Number	DIN766 Link Chain	Structure	Welded Chain
Function	Drag Chain	Material	Other, Q235,Q195,Carbon Steel
Standard or Nonstandard	Standard

Product Description

Specifications

1.DIN766 Link Chain
2.Certificate:ISO9001:2008
3.High Quality
4.Surface:Galvanized

1.Company Information:

1)We have strong technical force,advanced equipment.

2)We produce regular steel link chains,high tensile chains,stainless chains.

knotted chains and animal chains,covering over 300 sizes and specifications.

3)Our products have been exported to the US,Canada,Europe and more than 20 countries and regions.

2.Product Description:

M.O.Q	1Ton
Trade Terms	FOB,CIF,CFR
Payment	L/C,T/T,Western Union
Material	Q235,Q195,Carbon Steel,20Mn2
Packaging	Gunny Bag,Steel Drum,Wooden Case,Pallet
Surface	Self Color,Zinc Plated,Black,HDG
Delivery Time	Within 30 days after received the 30% in advance by T/T

Specification:

Germany DIN766 Link Chain:

Size		Inside Length			Inside Width	Outside Width	Length Per 11 Links			Weight Per M
MM	±MM	MM	+MM	-MM	MM	MM	MM	+MM	-MM	KG
2	0.2	12	0.2	0.2	3.5	7.5	132	1.0	0.5	0.07
3	0.2	16	0.2	0.2	4.2	11	176	1.4	0.7	0.16
4	0.2	16	0.3	0.2	5	13.7	176	2.1	1.1	0.32
5	0.2	18.5	0.4	0.2	6	17	203.5	2.4	1.2	0.5
6	0.2	18.5	0.4	0.2	7.2	20.2	203.5	2.4	1.2	0.8
7	0.3	22	0.4	0.2	8.4	23.8	242	3.0	1.4	1.1
8	0.3	24	0.4	0.2	9.6	27.2	264	3.2	1.5	1.4
9	0.4	27	0.5	0.3	10.8	30.6	297	3.6	1.8	1.8
10	0.4	28	0.5	0.3	12	34	308	3.7	1.9	2.2
11	0.4	31	0.5	0.3	13.2	37.4	341	4.0	2.0	2.7
12	0.3	36	0.6	0.3	14.4	40.8	396	4.4	2.2	3.10
13	0.5	36	0.6	0.3	15.6	44.2	396	4.6	2.4	3.8
14	0.6	41	0.7	0.4	16.8	47.6	451	5.4	2.7	4.4
16	0.6	45	0.8	0.4	19.2	54.4	495	6.0	3.0	5.7
18	0.9	50	0.8	0.4	21.6	61.2	550	6.6	3.3	7.3
19	0.4	53	0.9	0.4	22.8	64.6	583	7.0	3.7	7.97
20	1.0	56	1.0	0.5	24.0	68.0	616	7.4	3.7	9.0
22	1.2	62	1.1	0.5	26.4	75.0	682	8.0	4.0	11.0
23	1.2	64	1.1	0.5	27.6	78.2	704	8.4	4.2	12
26	1.3	73	1.2	0.6	31.2	88.4	803	9.6	4.8	15

3.Our Services:

We can offer the following products:

1)Weldless chain

2)Animal chain

3)Stainless steel link chain

4)G30 proof coil chain

5)Ordinary mild steel link chain

6)Norwegian standard link chain

7)Korean standard link chain

8)NACM1990 standard link chain

9)ASTM80 standard link chain

10)NACM96 standard link chain

11)Australian standard link chain

12)DIN5685,DIN764,DIN763,DIN766

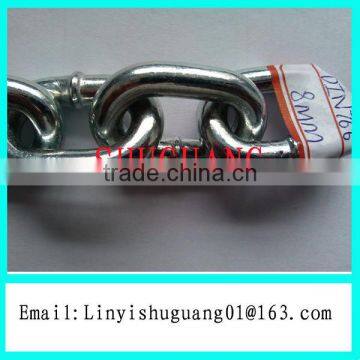

Products Pictures:

4.Factory and Equipment:

5.Packaging & Shipping:

Reel+Pallet/Wooden

Steel Drum+Pallet

Wooden Case+Pallet

Gunny Bag+Pallet

Plastic Drum+Pallet

Carton+Pallet

And we can pack according to your requirements
