TS-A83-002 Arabic School Bus Stop Arm Sign

TS-A83-002 Arabic School Bus Stop Arm Sign thumbnail-1
TS-A83-002 Arabic School Bus Stop Arm Sign thumbnail-2
TS-A83-002 Arabic School Bus Stop Arm Sign thumbnail-3
TS-A83-002 Arabic School Bus Stop Arm Sign thumbnail-4
TS-A83-002 Arabic School Bus Stop Arm Sign thumbnail-5
TS-A83-002 Arabic School Bus Stop Arm Sign photo-1
TS-A83-002 Arabic School Bus Stop Arm Sign photo-2
TS-A83-002 Arabic School Bus Stop Arm Sign photo-3
TS-A83-002 Arabic School Bus Stop Arm Sign photo-4
TS-A83-002 Arabic School Bus Stop Arm Sign photo-5
US$ 80 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
AMBUND
Model Number:
TS-A83-002
Contact Supplier Request Quote Chat Now
Taizhou Ambund Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name AMBUND
Model Number TS-A83-002

TS-A83-002 Arabic School Bus Stop  Arm Sign



Specifications

TS-A83-002 Arabic School Bus Stop Arm Sign



Item No. TS-A83-002
Material Aluminum
Reflective film GB/T18833 diode reflective film
Diameter 450mm
SIZE 415mmX415mm
Wattage 12W
Power DC 24V-Currency 0.5V, DC 12V-Currency 1V
Control method Electric / Manual
Working Temperature -25℃~+70℃
IP 65

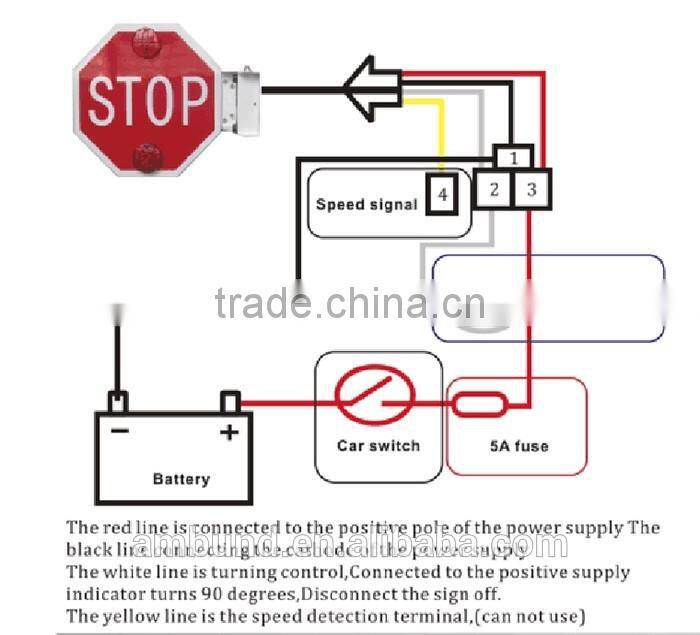

Wire Red wire Acc(+)  Black wire Gud(-)
Control wire White
Manual flip angle 0°+ 90°+ 45°
Electric flip angle 90°±2°





1.This product complies with the new school bus standard.
2.The whole board is waterproof IP65.
3.GB/T18833 diode reflective film,electrophoresis process,long-time stability.
4.Use precision Specialty turnover mechanism,which supports more than 100000 time electric test without error.
5.Back in place automatically,no shaking and no unexpected pop-up

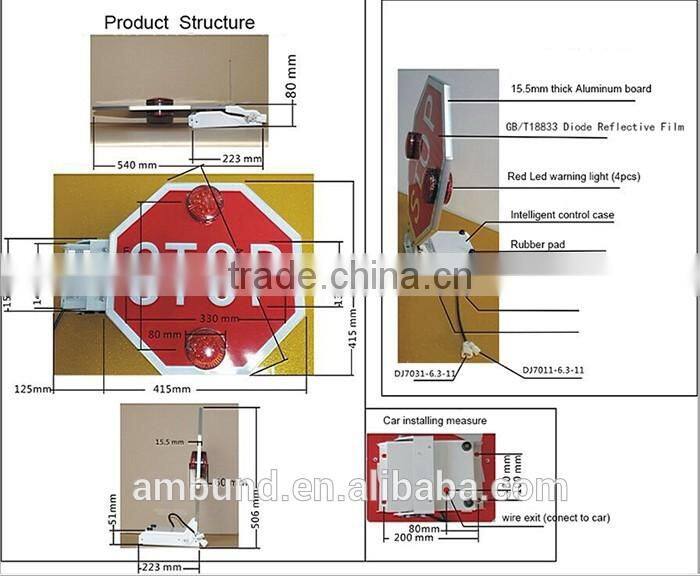

Installation Instructions:
On the bus the specified location,drill 4 holes 8.5mm in diameter,and drill 1 through holes 14mm in diameter






TS-A83-002 Arabic School Bus Stop Arm Sign



The indicator board is fixed on the school bus keep the position with the M8*25 bolt



Please refer to below picture:

TS-A83-002 Arabic School Bus Stop Arm Sign

TS-A83-002 Arabic School Bus Stop Arm SignTS-A83-002 Arabic School Bus Stop Arm SignTS-A83-002 Arabic School Bus Stop Arm SignTS-A83-002 Arabic School Bus Stop Arm Sign



1. Electric or Manual control,stability performance.
2. Aluminum material,no color fading,no deformation.10 times longer lifetime then normal plastic outdoor product.
3. Waterproof IP65
4. Supports more than 100000 times electric turning and 1000 times manual turning without error. Sign turns on at just 90 degree to the bus.
5. Forced auto turning back function,automatically turning back when car stars even forgot to close the sign.
