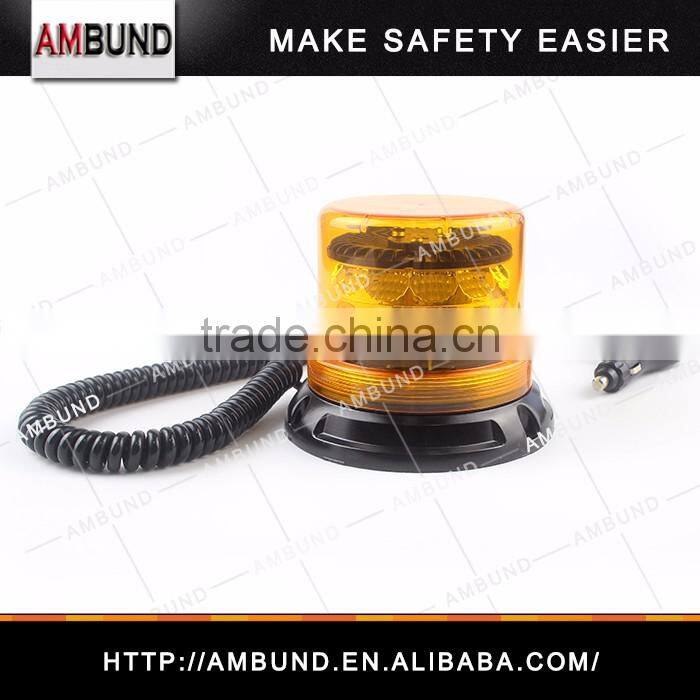

AB-AL1170 LED Emergency Vehicle rotating Warning strobe Beacon

AB-AL1170 LED Emergency Vehicle rotating Warning strobe Beacon

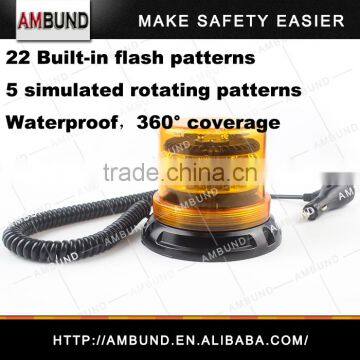

1.Two levels of unique LED reflectors provide a focused signal for superior brightness.

2. Waterproof,shock resistant,potted circuit board.

3. AB-AL1170 is with 22 Built-in flash patterns,including 5 simulated rotating patterns.

4. Provide 360° coverage.

5. Low amp draw and bright output provide the ideal beacon for everyday use.

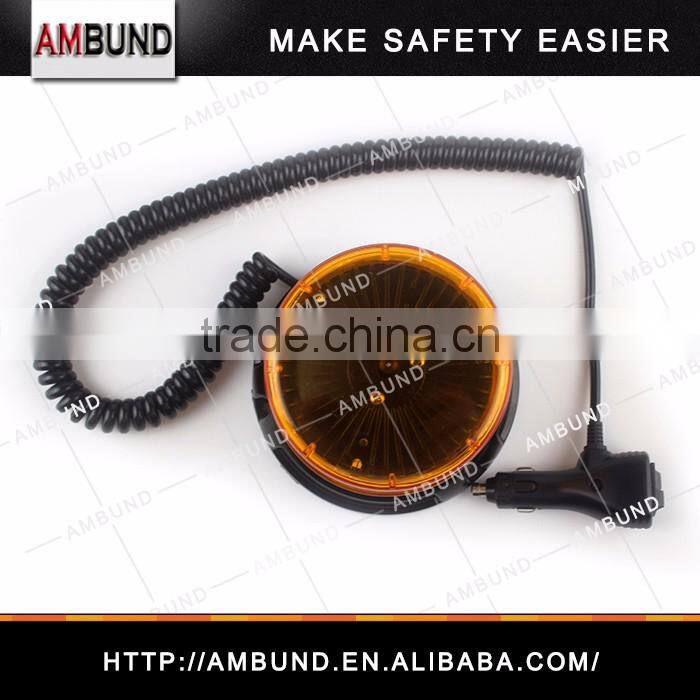

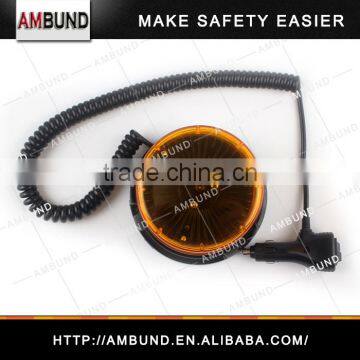

6. Coil cord, with Muli-function Cigar plug.

Emergency Vehicle Warning Beacon

Two levels of unique LED reflectors provide a focused signal for superior brightness.

It provides maximum illumination intensity - both in terms of brightness and in coverage.

According to specific client feedback, our design team wanted to maximize light brightness without compromising the existing great features. .
We have accomplished this through adding two reflection cups, allowing pedestrians to see the
warning signal at a minimum distance of 15.7 meters and drivers to notice from over 28.5 meters away.

The biggest hurdle, however, was dissipation. After a lengthy period of environmental simulation experimentation and ongoing collaboration with the Design Department, we added an aluminum loop in the middle of the strobe beacon, connecting two layers of lights.

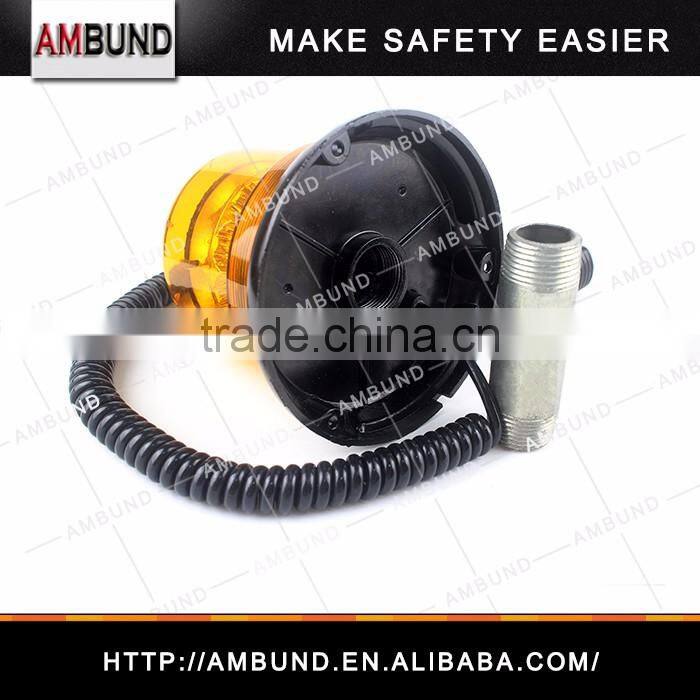

The bottom of the strobe beacon incorporates an aluminum alloy for increased heat conduction and heat dissipation.
