Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction

Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-1
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-2
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-3
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-4
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-5
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction thumbnail-6
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-1
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-2
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-3
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-4
Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-5

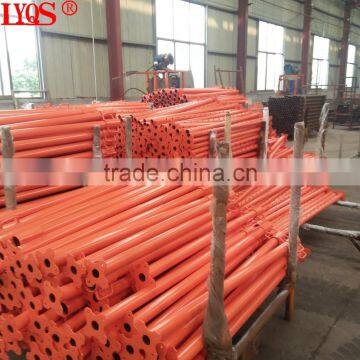

Scaffolding Props Acrow Props Load Capacity Prop Jacks Used in Construction photo-6
US$ 5 - 20 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
LYQS
Model Number:
Props
Contact Supplier Request Quote Chat Now
Linyi Qiangsheng Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name LYQS
Model Number Props
Product Description
1.Components:  Scaffolding adjustable steel props consists of outer tube,inner tube,prop nut,top plate and base plate,5 components.

2.Time-saving: Adjustable steel  props is fast to build up,which can save 60% time and manpower than traditional scaffoldings.

3.Easy to handle: Workers can handle it easily due to the simple structure.

4. Cost-effective: Scaffolding adjustable Steel Props is an ideal and cost-effective product to support concrete,temporary formwork,slabs and beams.

5.Other advantages: Scaffolding adjustable Steel Props is very easy to transport and stock. The high protected painted surface means it is not easy to rust.

Scaffolding shoring props jack
Product name
shoring porp jack
Branch
LYQS
Material
Q235 , Q345
Surface treatment
galvanized or powder coated
Color
silver or as your requirement
Props type
light duty props , medium duty props , heavy duty props and push-pull props
Adjust area
0.5-0.8m , 0.6-1m , 0.7-1.2 , 1-1.8m , 1.6-2.9m , 2-3.5m , 2-3.6m , 2-3.8m , 2.2-4m 2.5-4.5m 3.5-5.5 or as your requirement
Outer/inner tube diameter
48mm/40mm , 56mm/48mm , 60mm/48mm , 76mm/63.5mm , 89mm/76mm or as your requirement
Tube thickness
1.5mm-5mm or as your requirement
Main parts
out tube , inner tuber , prop sleeve , base plate , heavy duty prop nut , G pin
Plate
flower type , square type , U head type
150*150*5/6/8mm , 120*120*4/5/6mm or as your requirement
Technique
CO2 arc welding , cold rolled tube
Certification
ISO9001:2000 , BS1139 , EN74B
Experience
Over fifteen years in scaffolding manufacturing.
Pakage details
50pcs/pallet or Standard Export Packing
Payment
T/T or L/C or as you required
We can produce all size as your requirement
Push-pull props 2-3.5M

Inner tube : 60*3.5mm            material :Q235
Outer tube :48.3*3.25mm      material :Q345
Lock pin : 16*400mm               material: 45#
Base plate : 150*150*8mm

Surface treatment: red  powder coated

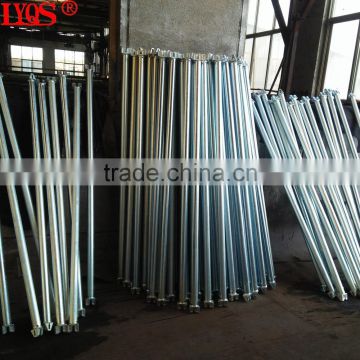

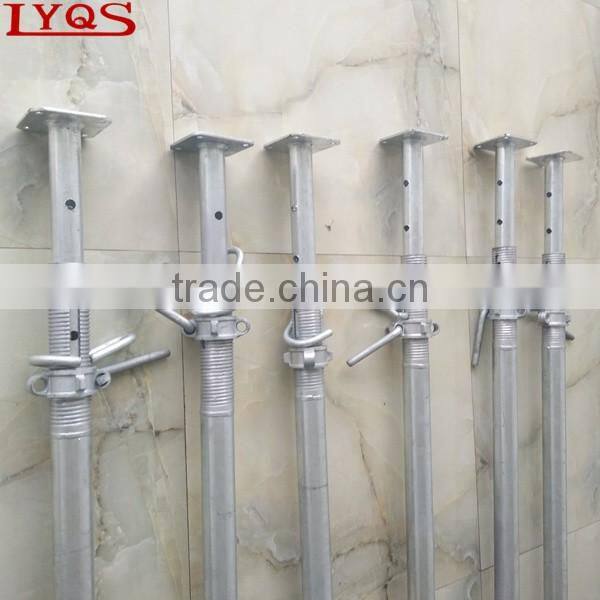

Heavy duty steel props 2.2-4M

Outer tube :60*3.5mm              material : Q235
Inner tube : 48.3*3.25mm       material : Q345
Lock pin :16*400mm                 material : 45#
Base plate ： 150*150*8 mm
Surface treatment : HDG

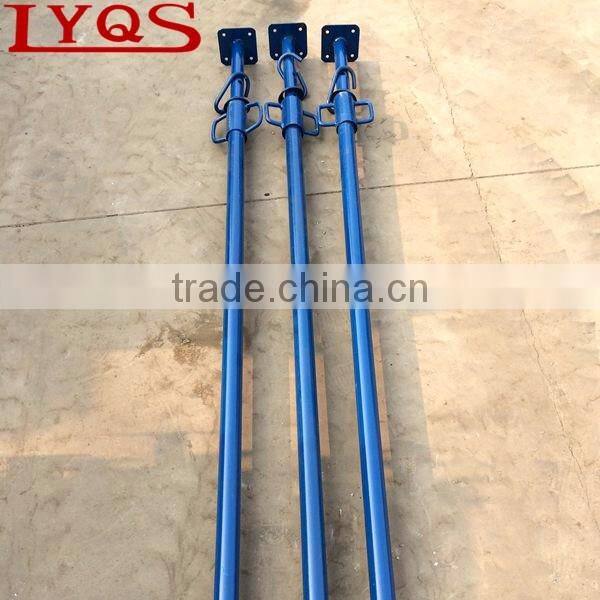

Light duty props 2-3.5M

Outer tube :56*2mm
Inner tube : 48*2mm
Base plate : 120*120*5mm
Lock pin : 14*360mm
Material: Q235
Finished : Blue powde coated

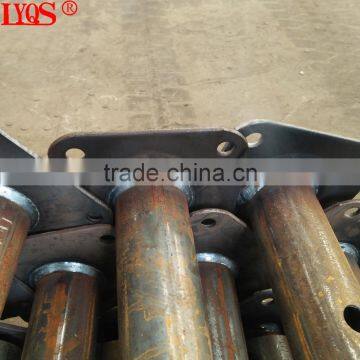

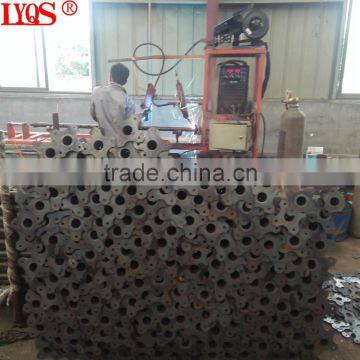

Perfect welding by automatic machine

Scaffolding shoring prop for slab parts are connected with CO2 arc welding to ensure good craking and deformation resistance.

Service

1.We have our own product line , so all products are factory price
2.We can produce all sizes as your requirement
3.we can paint your logo or brand name on the scaffolding prop jack according to your design.
4.We can provide all the details from raw material to the product
5.All of scaffolding systems produced according the standard of BS1139 and EN74 , and our products passed the certification of ISO9001:2000
6.We provide OEM service and welcome customer' samples and designs
Equipments
Cold rolled tube
We have advanced pipe machine , we produce tube by ourself , so all products are factory price
Sand blasting : it is very important details for powder coated props
Punching: exact size for every detail
Detailed Images

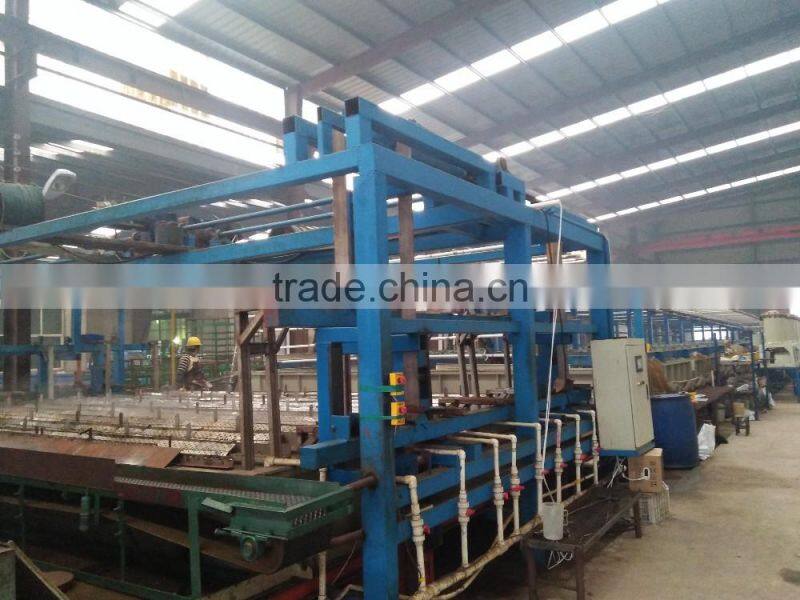

Galvanizing
Guaranteed to soak for at least fifteen minutes . we must ensure the quality, do not cut corners

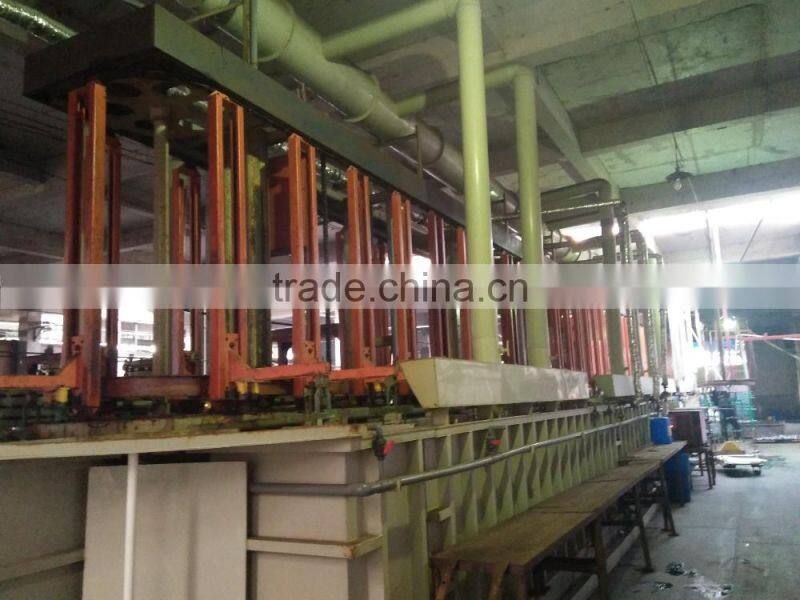

Accessories galvanized pool
We also produce handtools , we have special galvanized pool for handtools .
Related Products

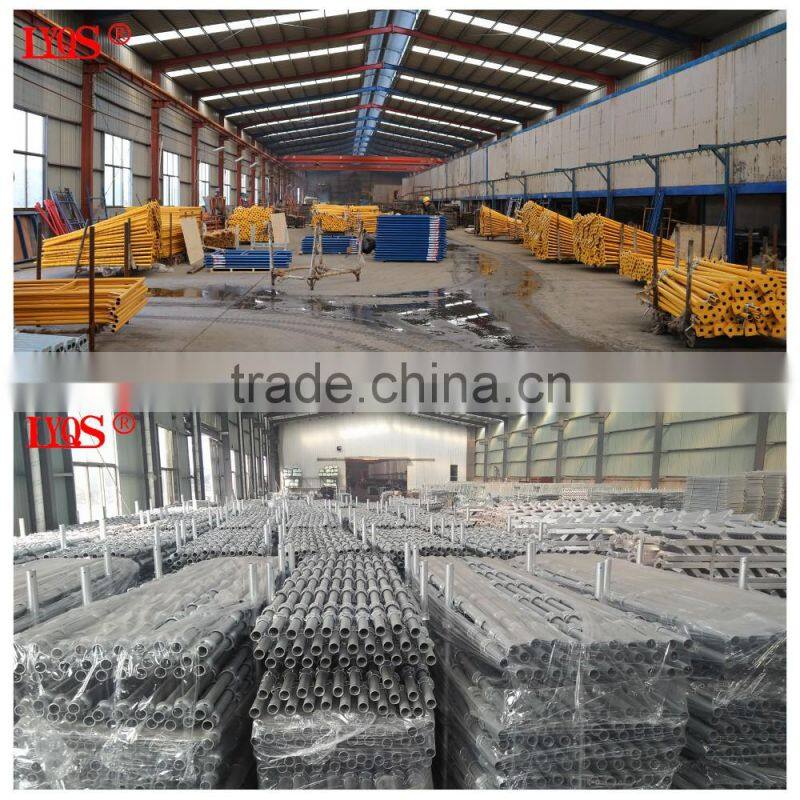

Our Company

LINYI QIANGSHENG TOOLS CO.,LTD was found in 1996.The workshops cover 31000 squaremeters,and we employed more than 360 well trained employees .our location is 10 minutes far away form LINYI airport, and 3 hour far away from Qingdao shipping port by car. we are a professional manufacturer of scaffolding ,ringlock system,cuplock system,shoring props,frame system,fences and barriers,scaffolding couplers,rapaid clamp and other related accessories.

Other product

We also produce hand tools---Adjustable wrench Geartech wrench Surface rathchet Heavy duty Ratchet wrench.All of scaffolding systems produced according the standard of BS1139 and/or EN74.With strong R&D power and strict quality control system,our products passed the certification of ISO9001:2000.We provide OEM services and welcome customers‘samples and designs.

We promise to have our conscience ,for safety of workers , quality and weight is absolutely true and reliable . We will never cut corners , because we want to long-term development ,we plant adhering to the "one credibility, quality assurance" services to business customers throughout attitude warm welcome and cooperation!

The whole process from material to finished products can be traced.

The quality is the only guaranteen for long-term cooperation , so there is absolutely nothing wrong with your choice.

Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.

detailed images

Exquisite packaging , plastic film covered for dusty free , every detail reflects our attention and careful

Packaging Details: 50pcs/pallet or Standard Export Packing

Delivery Detail: 20days or According to the requested quantity
