universal jacks flat head
Feature:
1) Tube Thickness; 48*4mm
2) Base plate size:150*150*6mm
Specification
Item | Length | Weight | |||
HDG | Paint | Zinc | Self | ||
QS1-450 | 450-300 | 3.24 | 3.12 | 3.15 | 3.9 |
QS1-550 | 550-400 | 3.73 | 3.6 | 3.63 | 4.45 |
QS1-650 | 650-500 | 4.2 | 4.56 | 4.1 | 4.9 |
QS1-750 | 750-600 | 4.65 | 4.48 | 4.5 | 5.32 |
Adjustable U head Base Jack
Feature:
3) Tube Thickness; 48*4mm
4) U head size:200*100*100*6mm
Specification
Item | Length | Weight | |||
HDG | Paint | Zinc | Self | ||
QS2-450 | 450-300 | 5.13 | 4.94 | 4.99 | 4.75 |
QS2-550 | 550-400 | 5.59 | 5.38 | 5.43 | 5.18 |
QS2-650 | 650-500 | 6.05 | 5.82 | 5.88 | 5.6 |
QS2-750 | 750-600 | 6.48 | 6.24 | 6.3 | 6.0 |
Universal Base Jack
Feature:
5) Tube Thickness; 32*4mm
Specification
Item | Length | Weight | |||
HDG | Paint | Zinc | Self | ||
QS3-450 | 450-300 | 1.95 | 1.85 | 1.87 | 1.78 |
QS3-550 | 550-400 | 2.25 | 2.132 | 2.15 | 2.05 |
QS3-650 | 650-500 | 2.56 | 2.423 | 2.45 | 2.33 |
QS3-750 | 750-600 | 2.9 | 2.75 | 2.78 | 2.64 |
Light Fork head Jack
Feature:
6) Tube Thickness; 38*4mm
Specification
Item | Length | Weight | |||
HDG | Paint | Zinc | Self | ||
QS4-450 | 450-300 | 4.94 | 4.69 | 4.73 | 4.51 |
QS4-550 | 550-400 | 5.33 | 5.04 | 5.1 | 4.85 |
QS4-650 | 650-500 | 5.7 | 5.4 | 5.5 | 5.18 |
QS4-750 | 750-600 | 5.7 | 5.36 | 5.4 | 5.15 |
Scaffolding Screw jack | ||
Components | Diameter*length (mm) | Material |
Screw bar | φ30x400(300-1000)MM | Q235 |
φ32x400(300-1000)MM | Q235 | |
φ34x500300-1000)MM | Q235 | |
φ36x500(300-1000)MM | Q235 | |
φ38x500(300-1000)MM | Q235 | |
Base plate | 80X100mm,100X100mm,100X150mm,120X100mm,120X120mm, 150X200mm,Thickness can be 3.25-5 CM | |
Screw jack nut | The weight is between 0.15-0.5kg | |

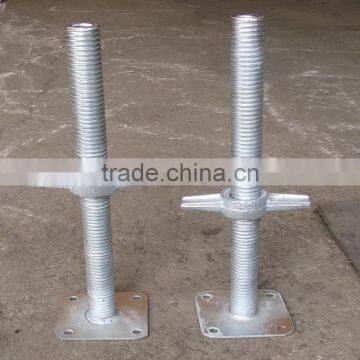

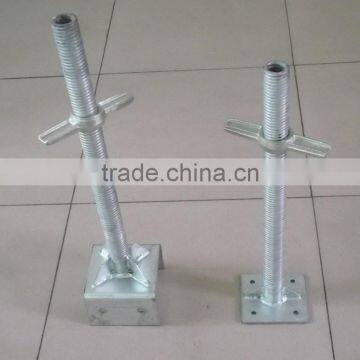

Details of scaffolding base jack:
1.Soild/hollow/U head adjustable base jack.
2.We can provide all kinds of base jack with high quality at low price
3.Pipe dia: form 30mm to 38mm(solid and hollow)
4.Material: Q235 for welded pipe and 20# for seamless pipe
5.Rigid base plate : 6mm×150mm×150mm, 6mm*140mm*140mm
6.Material: Q235
7.Adjustments from 225mm to 550mm
8.Surface finish: galvanized/ painted
9.Produced in our own factory,can control the quality much better
10.Samples are available
11.ISO 9001-2000 approved.
12.Performance:good bearing capacity,durable & stable
13.Test: SGS, BV or as per your request
14.OEM service is available.
These adjustable bases give stability to the structure with desired adjustments at the base.
Main Products
(1).Scaffolding products (Ringlock/Cuplock/Frame/Kwikstage )
Include: Kwikstage system scaffolding and accessories; Ring lock system scaffolding and accessories; Cup lock system scaffolding and accessories; Haki system scaffolding and accessories.
(2). Scaffolding Couplers/Clamps/Fasten
We can manufacture all kinds of couplers, include: British type couplers, Italian type couplers, German type couplers, American type couplers, and many other kinds of couplers as per your drawings.
(3). Frames Scaffolding
Mainly include: Ladder type frames and walk through (door type) frames, we can also manufacture as per your drawings.
(4). Shoring Props
Quality shoring props of different specifications can be manufactured in our factory.
(5). Steel Planks/ Toe Board
Both aluminum and steel planks can be manufactured in our factory.
(6).Formwork accessories
We can also manufacture fences, ladders, steel trays and other related products that are needed in the erection of scaffolding.
(7).Taffic barrier
Crowd barrier. Traffic barrier .OEM is offered .
LINYI QIANGSHENG TOOLS CO.,LTD was found in 1996.The workshops cover 31000 squaremeters,and we employed more than 360 well trained employees .our location is 10 minutes far away form LINYI airport, and 3 hour far away from Qingdao shipping port by car. we are a professional manufacturer ofscaffolding ,ringlock system,cuplock system,shoring props,frame system,fences and barriers,scaffolding couplers,rapaid clamp and other related accessories.We also produce hand tools---Adjustable wrench Geartech wrench Surface rathchet Heavy duty Ratchet wrench.All of scaffolding systems produced according the standard of BS1139 and/or EN74.With strong R&D power and strict quality control system,our products passed the certification of ISO9001:2000.We provide OEM services and welcome customers‘samples and designs.
why choose us
1,Direct manufacturer
OEM and ODM experience over 20 years in timer industry,and established direct manufacturer.
2,The inustry standard
Linyi Qiangsheng Tools Co., Ltd meets the standard in advanced scaffold systems worldwide
3,Made in China
With competitive price and good quality.
4,Delivery of timely and stable
Have stable supply chain which can guarantee our product quanlity and prompt delivery
Professional serive(effective pre-sale communication+good after sale service)
5, Pantnerships
A spirit of partnership that goes well beyond conventional supplier relationships.
