Home > Products > Scaffolding Accessories > Carbon Steel Forged Welding F Style Clamp With Tommy Bar

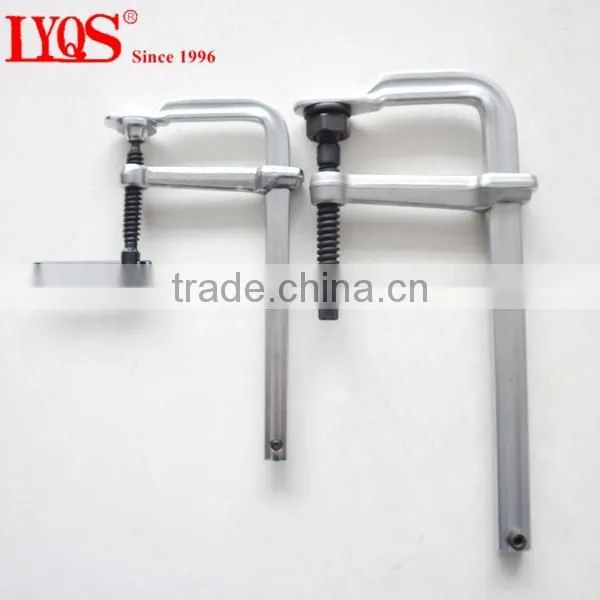

Carbon Steel Forged Welding F Style Clamp With Tommy Bar
US$ 3 - 5
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
Heavy Duty Carpenter Woodworking Adjustable Tommy Bar Clamp
-
Carbon Steel Forged Quick Grip Sliding F-style Tommy Bar Clamp
-
Carbon Steel Forged Medium Duty Quick Release Tommy Bar Clamp
-
Forged Carbon Steel Heavy Duty U Style Bar Clamp
-
Easy Adjustable Clamping Tools Sliding Bar F Clamps
-
Forged Carbon Steel Sliding Adjustable Bar Clamping Welding Clamp
Product Details
| Place of Origin | Shandong, China | Brand Name | LYQS | |
| Model Number | F style Tommy Bar Clamp | Usage | Heavy Duty | |
| Material | Other, Metal, 45# carbon steel | Structure | F Clamp | |
| Standard or Nonstandard | Standard |
Product Description
Product Description
- Economical 4-in-1 Clamp adapts to serve four different functions: 1) Standard clamping 2) Pipe clamping 3) Spreader clamping 4) Step-over clamping
- Removable / reversible clamp arm
- Made of heat treated CRV steel and galvanized plated for strength and durability
- 1 Clamp with 4 Functions!
- Sliding Arm is 10X faster than turning a threaded screw on a C-clamp
The V-Pad adjusts to hold round, flat, and angled stock
SPECIFICATIONS
| Size | Rail Size | Throat Depth | Weight(kg) | Clamping Pressure |
| 500X100 | 18.5x9.5mm | 500mm | 1.25 | 350 |
| 400X100 | 18.5x9.5mm | 400mm | 1.15 | 350 |
| 300X100 | 18.5x9.5mm | 300mm | 1.00 | 350 |
| 200X100 | 18.5x9.5mm | 200mm | 0.85 | 350 |
| 300X80 | 22x10.5mm | 300mm | 1.15 | 550 |
| 400X80 | 22x10.5mm | 400mm | 1.35 | 550 |
| 500X80 | 22x10.5mm | 500mm | 1.55 | 550 |
| 600X80 | 22x10.5mm | 600mm | 1.75 | 550 |
| 800X80 | 22x10.5mm | 800mm | 2.15 | 550 |
| 150X100 | 25x12mm | 150mm | 1.10 | 750 |
| 200X100 | 25x12mm | 200mm | 1.25 | 750 |
| 300X100 | 25x12mm | 300mm | 1.65 | 750 |
| 400X100 | 25x12mm | 400mm | 1.90 | 750 |
| 500X100 | 25x12mm | 500mm | 2.10 | 750 |
| 600X100 | 25x12mm | 600mm | 2.30 | 750 |
| 200X120 | 30X14.7mm | 200mm | 2.25 | 900 |
| 300X120 | 30X14.7mm | 300mm | 2.55 | 900 |
| 400X120 | 30X14.7mm | 400mm | 2.85 | 900 |
| 500X120 | 30X14.7mm | 500mm | 3.20 | 900 |
| 600X120 | 30X14.7mm | 600mm | 3.45 | 900 |
| 800X120 | 30X14.7mm | 800mm | 4.05 | 900 |
| 1000X120 | 30X14.7mm | 1000mm | 4.70 | 900 |
Forged and tempered throat and sliding arm for great load capacity.
Ergonomic pvc handle for comfort and anti-slip.
Drop-forged high carbon sliding bar for high clamping requirements
Heavy duty anti-slipped pad
Woodworking Application
Company Information
As a professionale manufacturer and exporter since 1996, we only make and export high quality products
and customer-oriented services at competitive prices. With our decades industrial experiences and equipments
that we have, your requirements will be tenderly took care and perfectly met.
Production
Long size sliding arm f clamps
Sliding bar pre-cutting.
