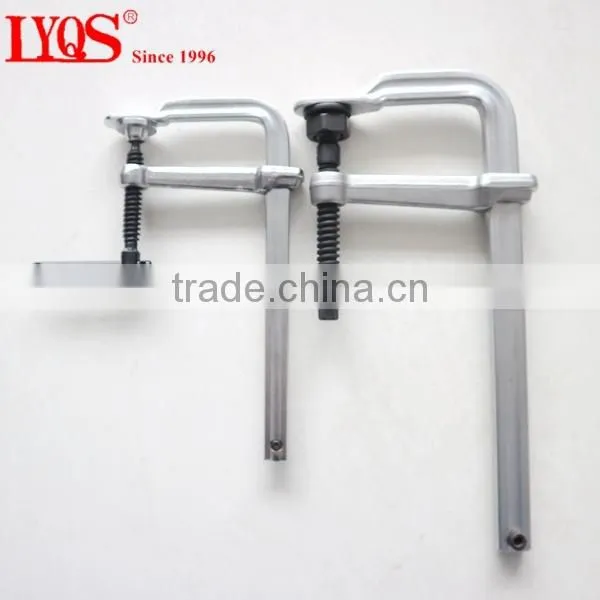

Adjustable Slidng Arm Screw T handle Clamp ClassiX with Tommy Bar
- 10000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
- FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning,Easy to assemble, stable clamping force.
- RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
- RM12 transformer clamp,RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
- DIN3352 F4 Resilient Non-rising Gate Valve
- High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
- manual type external line up clamp made in China with stocks
Product Details
Place of Origin: | Shandong, China | Brand Name: | LYQS | Model Number: | T Handle & F Clamp |
Usage: | Heavy Duty | Material: | Other, Metal, 45# carbon steel | Structure: | F Clamp |
Standard or Nonstandard: | Standard |
Product Description
- Economical 4-in-1 Clamp adapts to serve four different functions: 1) Standard clamping 2) Pipe clamping 3) Spreader clamping 4) Step-over clamping
- Removable / reversible clamp arm
- Made of heat treated CRV steel and galvanized plated for strength and durability
- 1 Clamp with 4 Functions!
- Sliding Arm is 10X faster than turning a threaded screw on a C-clamp

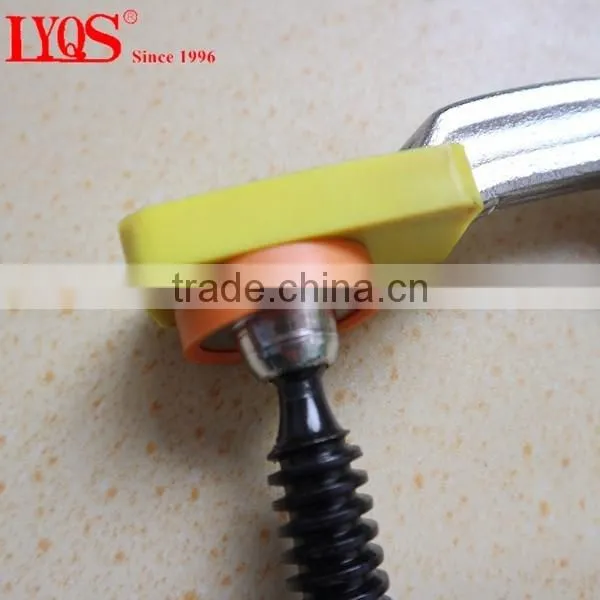

The V-Pad adjusts to hold round, flat, and angled stock
SPECIFICATIONS
Size | Rail Size | Throat Depth | Weight(kg) | Clamping Pressure |
500X100 | 18.5x9.5mm | 500mm | 1.25 | 350 |
400X100 | 18.5x9.5mm | 400mm | 1.15 | 350 |
300X100 | 18.5x9.5mm | 300mm | 1.00 | 350 |
200X100 | 18.5x9.5mm | 200mm | 0.85 | 350 |
300X80 | 22x10.5mm | 300mm | 1.15 | 550 |
400X80 | 22x10.5mm | 400mm | 1.35 | 550 |
500X80 | 22x10.5mm | 500mm | 1.55 | 550 |
600X80 | 22x10.5mm | 600mm | 1.75 | 550 |
800X80 | 22x10.5mm | 800mm | 2.15 | 550 |
150X100 | 25x12mm | 150mm | 1.10 | 750 |
200X100 | 25x12mm | 200mm | 1.25 | 750 |
300X100 | 25x12mm | 300mm | 1.65 | 750 |
400X100 | 25x12mm | 400mm | 1.90 | 750 |
500X100 | 25x12mm | 500mm | 2.10 | 750 |
600X100 | 25x12mm | 600mm | 2.30 | 750 |
200X120 | 30X14.7mm | 200mm | 2.25 | 900 |
300X120 | 30X14.7mm | 300mm | 2.55 | 900 |
400X120 | 30X14.7mm | 400mm | 2.85 | 900 |
500X120 | 30X14.7mm | 500mm | 3.20 | 900 |
600X120 | 30X14.7mm | 600mm | 3.45 | 900 |
800X120 | 30X14.7mm | 800mm | 4.05 | 900 |
1000X120 | 30X14.7mm | 1000mm | 4.70 | 900 |

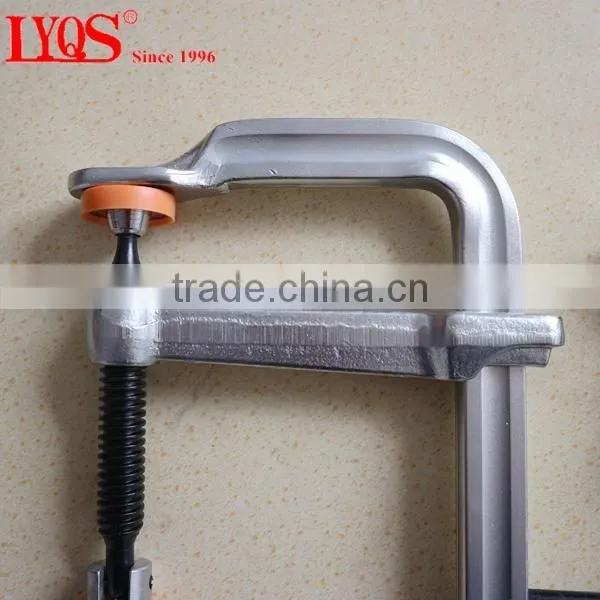

Forged and tempered throat and sliding arm for great load capacity.

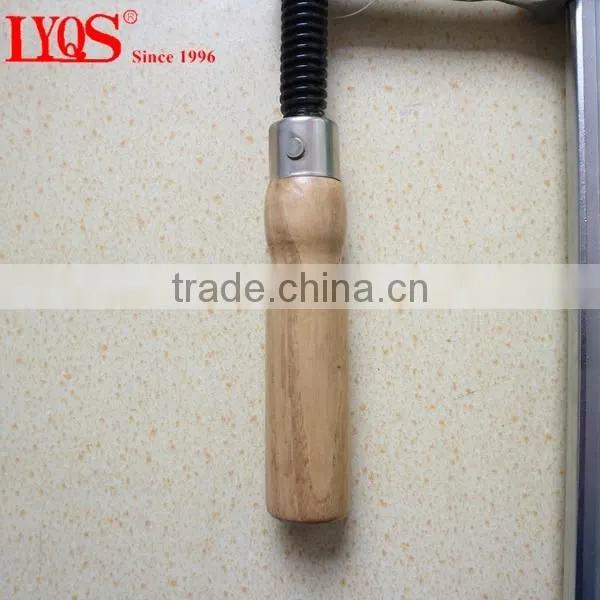

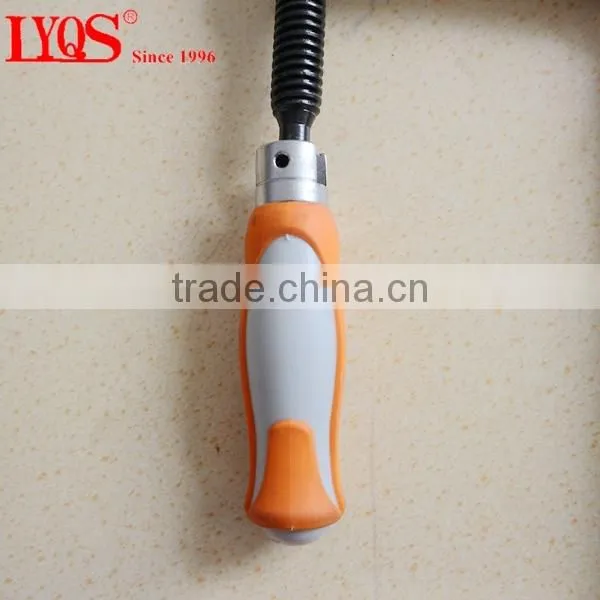

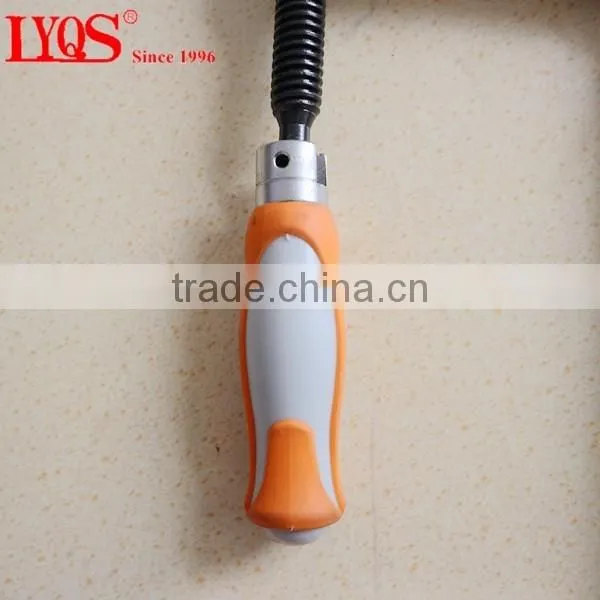

Ergonomic pvc handle for comfort and anti-slip.
Drop-forged high carbon sliding bar for high clamping requirements
Heavy duty anti-slipped pad

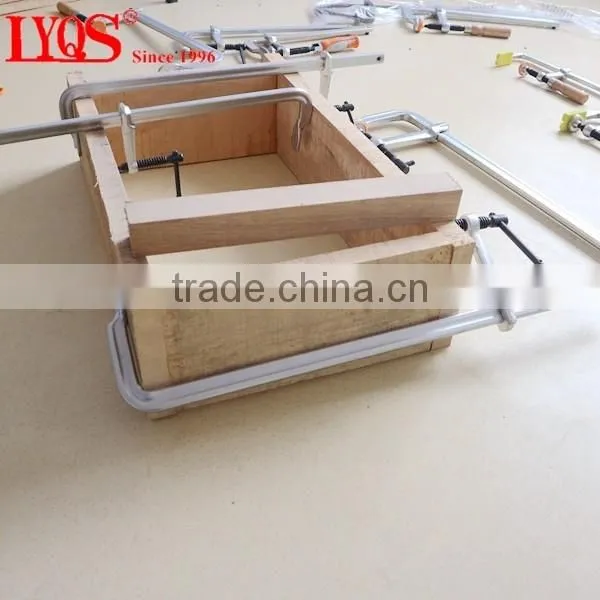

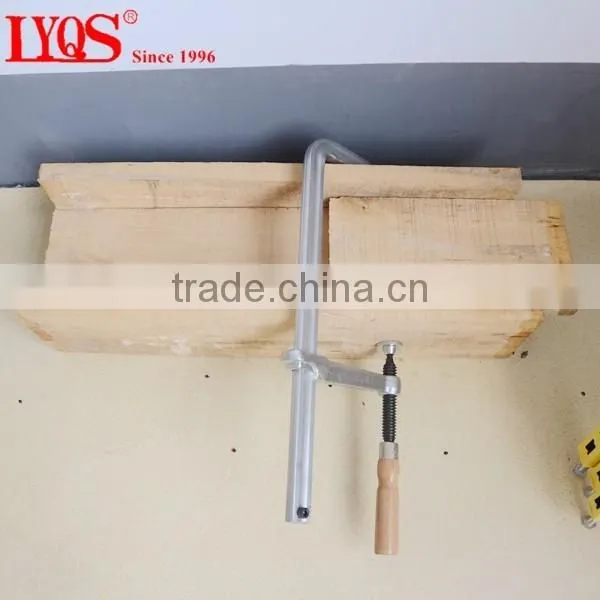

Woodworking Application
As a professionale manufacturer and exporter since 1996, we only make and export high quality products
and customer-oriented services at competitive prices. With our decades industrial experiences and equipments
that we have, your requirements will be tenderly took care and perfectly met.

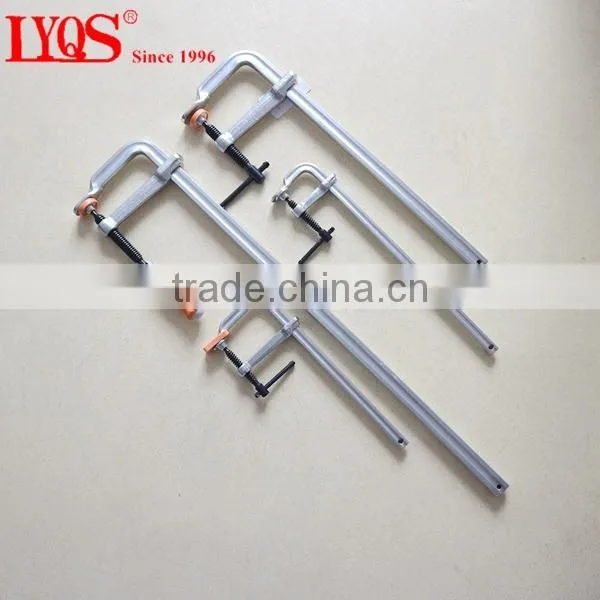

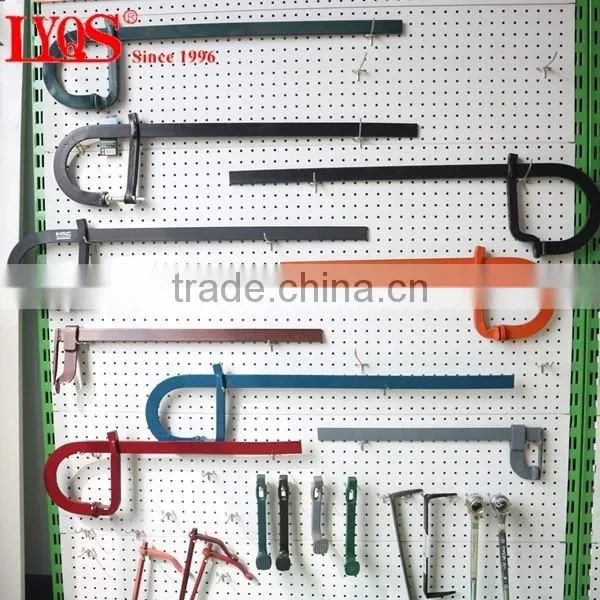

Long size sliding arm f clamps

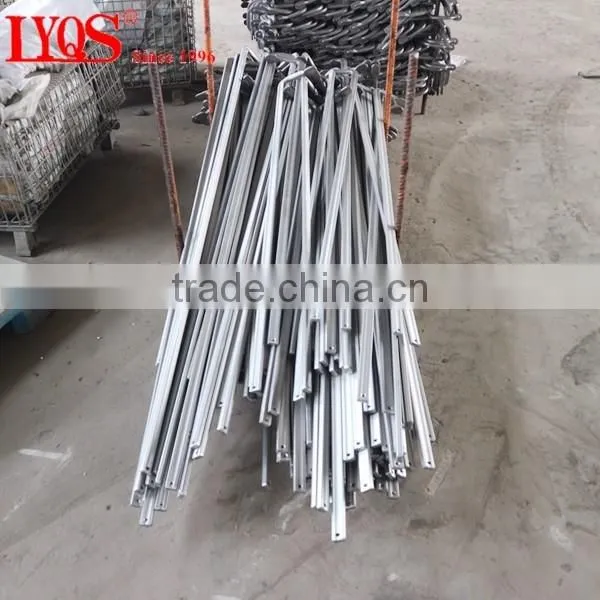

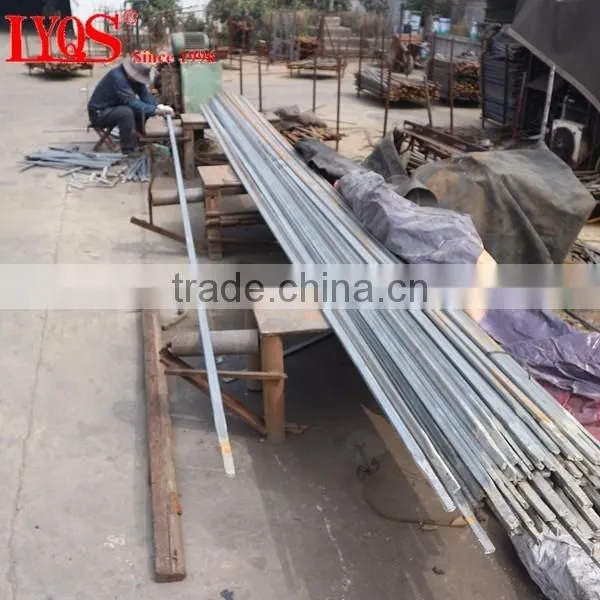

Sliding bar pre-cutting.
