LYQS - RINGLOCK DESCRIPTION

Vertical Standard

a

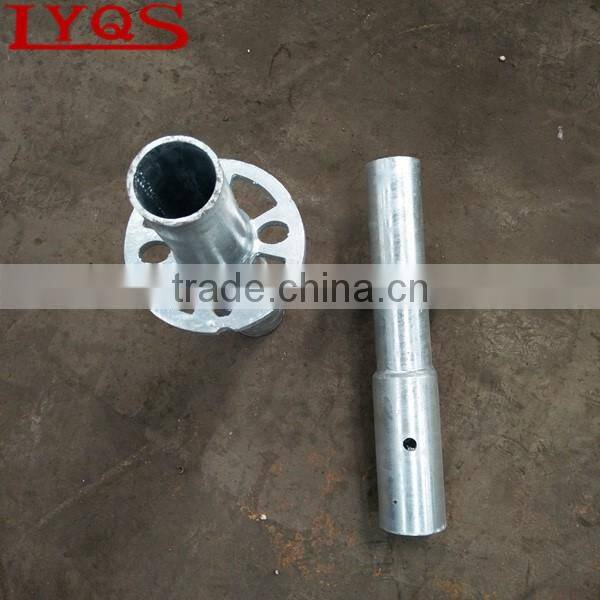

Standard is a force endure and connect component. It is placed in vertical as used. We can add one standard upon the other with the connective pipe. It is made of a pipe and several ring plates. We weld a plate every 0.5 meter on the pipe. Every plate has eight holes to connect the ledgers and braces. We have five type to choose and can meet the customer's requirements in addition. This product is also hot galvanized.

The rings, we have four different styles, basically we can meet the requirement all over the world. If the customer has his own design, we can also produce accordingly.

Horizontal Ledger

Ledger is one of main force endure and connector. It is composed of a tube and two ledger heads. Each top of it has a pin. They are inserted into the ring plate hole when we connect two standards. Normally, forteen types of the ledger is available, and we can produce the ledger according to customer's requirements. Finally ladger should be hot aglvanized.



MATERIAL	LENGTH (mm)	WEIGHT (kg)
Q235	1829	7.75
FINISHED HDG	1000	4.60



Brace

Brace makes the structure more strength and partly endure the force. It convert the squre shape of the scaffold unit to triangle. The make of the brace is simple. We press the each top to flat and make punch hole on it. We only need two pin to fixup as we assemble it. There are nine main types for your option. You can also order with your special need.

Steel Plank

The main function of the plank is providing the working platform for the workers. All the planks are made of steel for safty, and there are anti-skidding holes and drainage holes on it. Of course hot galvanize is necessary which make the plank be resistant to corrosion and oxidation. We have six types and can produce according to customer's design too.

Base Plate

Is a component for connection with the root of the vertical standard to support the vertical standard as well as transfer the wholeringlock scaffold structure weight to all the toft. Its specification as follows:

Base plate: CCA is made from 140x140x6mm steel plate, 36.5x2.0x114.3 and 42.9x2.4x25.4 tube. There are five punch holes on the plant.

Screw Jack: CACA is made from 140x140x6mm steel plate, tube screw, handle etc.

U-Head

U-Head is used to insert in the top of the vertical standard to support beam etc. There are two different styles available.

- Adjustable U-head is made up of “U” shape steel plate, screw jack  and screw handle.

- Fixed U-head is made up of “U” shape steel plate welding with tube.

Base Collar

The function of base collar is same as screw jack, and it can be
adjusted the height when placed the screw jack at the bottom.
Its structure is similar with the standard, but the tube is very short.
