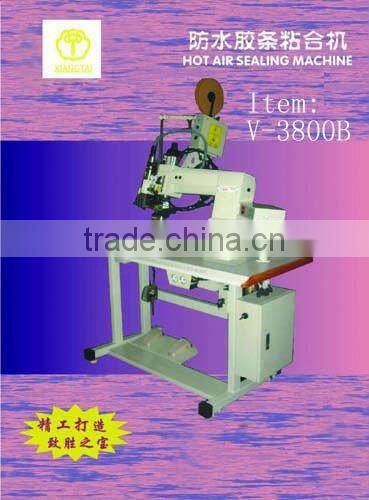

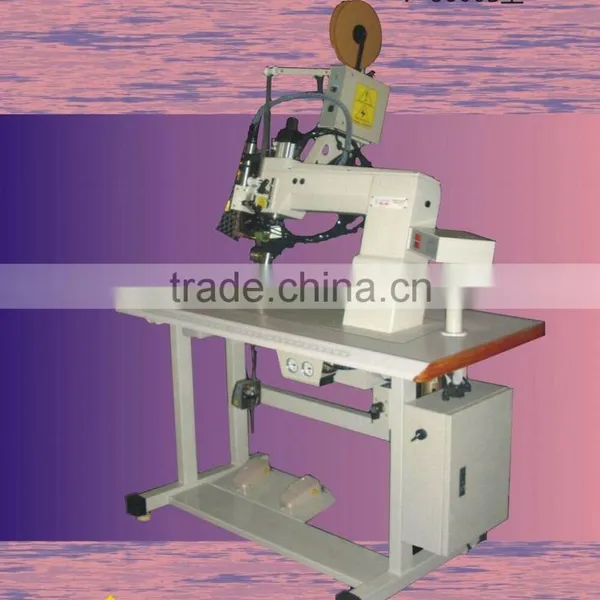

Seam Sealing Tape Machine
- fuzhou
- T/T
You May Like
Product Details
| Condition | New | Type | Other, hot air machine | |
| Place of Origin | Fujian, China | Brand Name | xiangtai | |
| Model Number | v-3800 | Stitch Formation | Other | |
| Mechanical Configuration | Flat-Bed | Max. Sewing Speed | 18m/min | |
| Max. Sewing Thickness | 0-30mm | Power | 3000w | |
| Overall Dimensions | 550mm(w)*1350mm(l)*1690mm(h) | Feed Mechanism | Multiple |
Product Description
Seam Sealing tape Machine used for waterproof fabric sewing like PVC,PU/polyeaster/nylon fabric ,it's our high reputation machine in our factory ,it's controlled by microcomputer ,the fuselage material is aluminium alloy with the characteristis small volumn,.light weight and simple operate way and widely used for waterproof function products,like PU,PE,PVC .it's the first choose product for some manufactory
micro-computer control,easily operation,it can still work for 24hours and it's very convininent.It reduces the hard work to the worker
SPECIFICATIONS:
MODEL:V-3800
POWER: single phase 220v+10%,50/60HZ
POWER CONSUMPTION: 3000W(max) 1000w(min)
ELECTRIC MOTOR: DC 24V 60W
COMPRESSED AIR : 4 BAR(min)
AIR CONSUMPTION: 60-120L/min
SEALING SPEED :adjustable 0-9.5 m/min (0-32ft/min)
NOZZLE TEMP: adjustable 0-800c LED to display
NOZZLE AIR PRESS: adjustable with air pressure display 0-2 bar
NOZZLE UNIT :26mm(standard ),other optional
ROLLER PRESS:adjustable with air pressure display 0-10bar
UPPER ROLLER:width 25.4mm(standard),silica gel
DOWN ROLLER:width 30.5mm,stainless steel
DISPLAY UNIT:LED
DIMENSIONS:620mm(W)*1200mm(L)*1900mm(H)
WEIGHT:120KGS
