Help CenterS80081 Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly
Related Products
-
S60186 7 Way Plug Inline Trailer Cord Junction Box 8 Feet Cable Towing Wiring ConnectNegotiableMOQ: 1000 Pieces -
S60184 7 Way Plug Trailer Cord Junction Box 6 Feet CableNegotiableMOQ: 1000 Pieces
-
S60185 7 WAY JUNCTION BOX WITH 7 WIRE RV CABLE WIRE AND PLUGNegotiableMOQ: 1000 Pieces
-
S60183 7 Way Plug Inline Trailer Cord Junction Box 6 Feet Cable Towing WiringNegotiableMOQ: 1000 Pieces
-
S60182 6' CAMPER TRAILER PLUG WITH JUNCTION BOX AND WIRENegotiableMOQ: 1000 Pieces

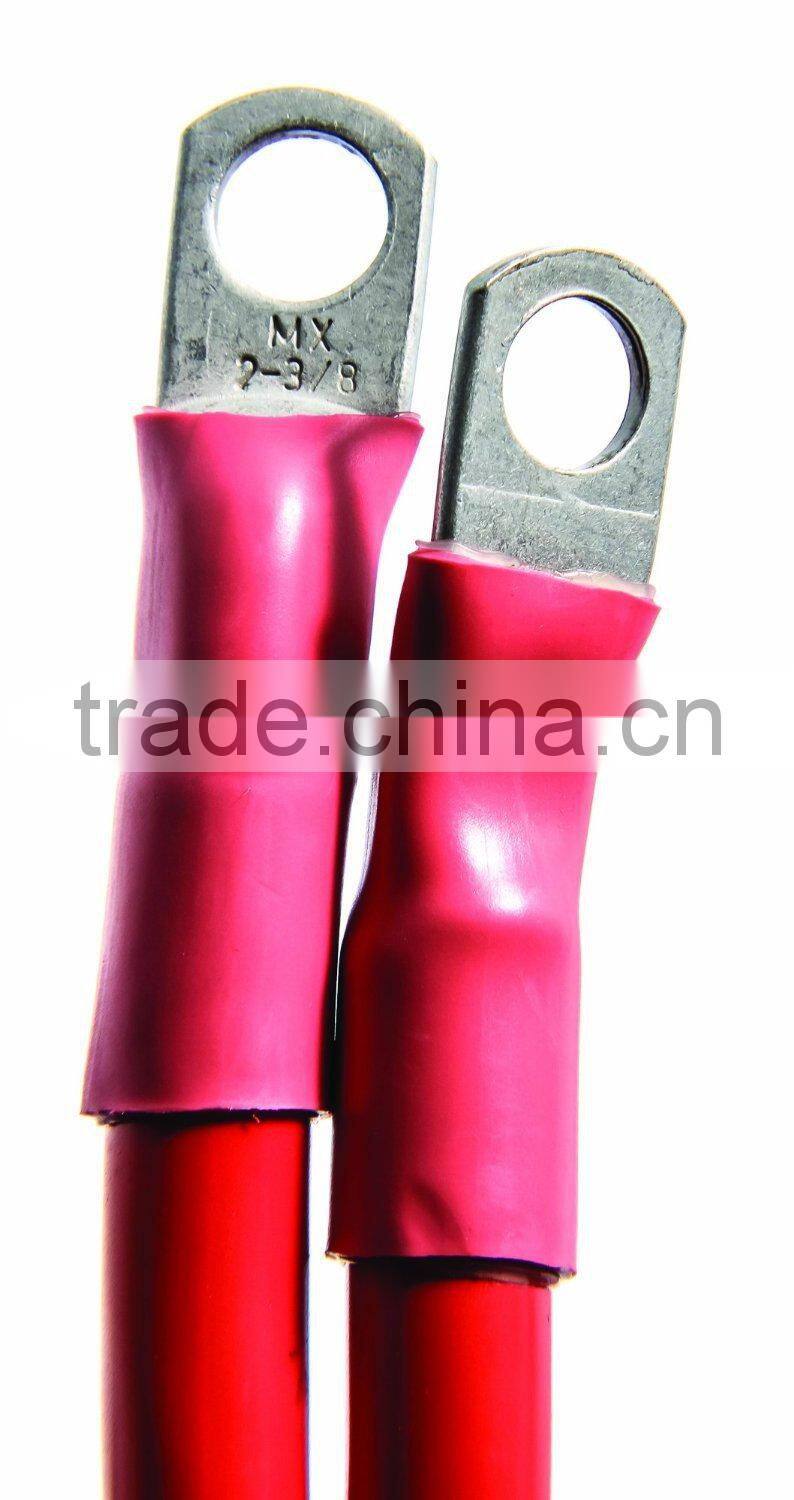

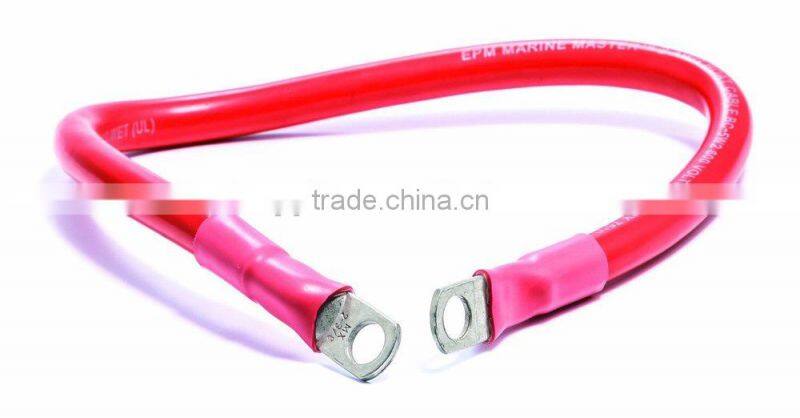

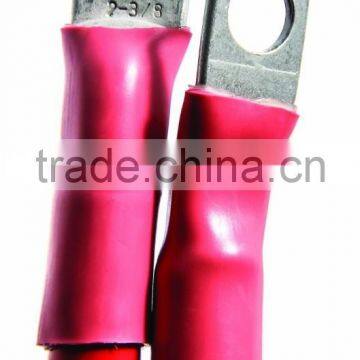

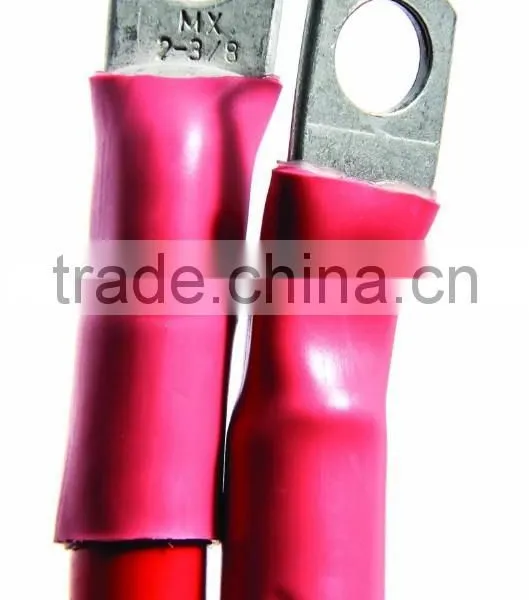

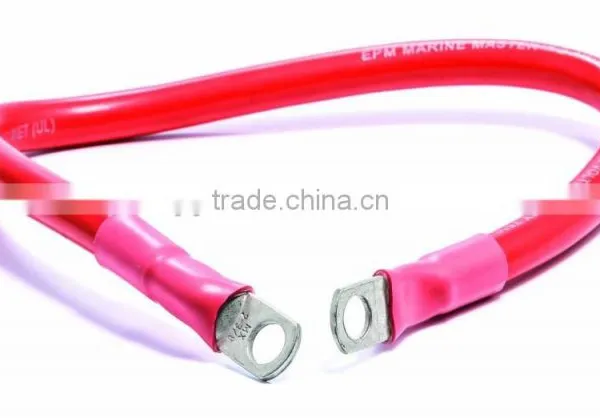

Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly
Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly
1>.Specifications for rubber battery cable :
2GA/4GA/6GA
Battery cable
Both ends are made of iron
Battery cable
Copper size:4GA 6GA 8GA
Length:10-78inch
2>.Common Standards for the rubber battery cable :
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
Red 3/8" Stud 18" Long 2Gauge Marine Battery Cable and Tinned Lug Assembly
1.We accept OEM program.
We can design the packing for the gift box for free.
2. We can prepare samples for cunstomers to test.
Pls provide your courier account # like UPS,DHL, FEDEX when you decicde to order a sample .
Q&A:
1.When did SANSEN start the business of Battery Cable ?
Since 1996
__________________________________________________________________________________________
2.How to order a sample?
Pls provice your courier account # like UPS,DHL, FEDEX when you decicde to order a sample.
___________________________________________________________________________________________
3.What is the lead time for the sample?
2 days to one week .
___________________________________________________________________________________________
4.Which port is the nearest to SANSEN?
Shanghai Port or Ningbo Port, but the goods also can be delivered to Guangzhou or Shenzhen port.
