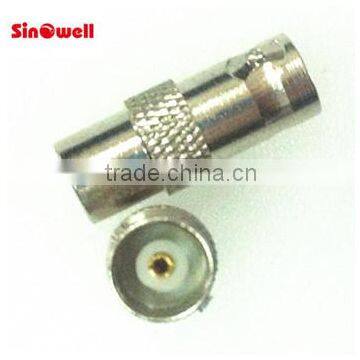

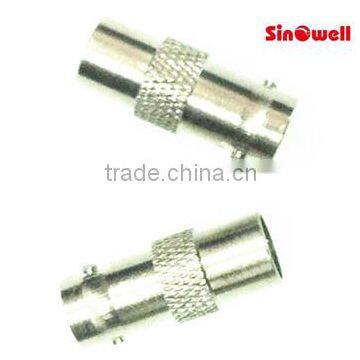

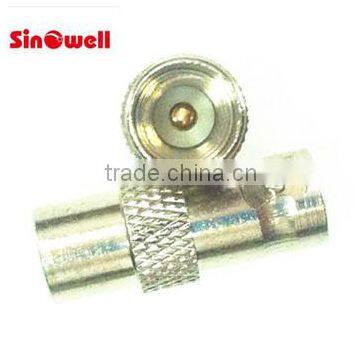

BNC Female to IEC Male Coaxial Connector Adapter

Electrical Specifications
Impedance: 50 Ω nominal Or  75 Ω nominal
Frequency Range: 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1,500 volts rms
VSWR :Straight connectors: 1.3 max 0-4 GHz
Right angle connectors: 1.35 max 0-4 GHz
Contact Resistance
Center contact: 1.5 mΩ;
Outer contact: 0.2 mΩ
Insulation Resistance: 5,000 MΩ
Braid to Body: 0.1 milliohm
RF Leakage: -55 dB min at 3 GHz
Insertion Loss: 0.2 dB min at 3 Ghz

Material
Male Contact: Brass
Female Contact: Beryllium copper or phosphorous bronze,silver or gold-plated
Other Metal Parts: Brass, nickel finish
Insulator: TFE
Crimp Ferrule: Copper/brass

 Packaging:100pcs/polybag  2000pcs/carton

Shipping:By sea or air

1. 24-hour online service guarantees timely reply about the details of any of our products .

2.High quality and best price promise profitable products and long relationship.

3. Supply the packing in accordance with your requirements. .

4.all of our products are high tech ,they are environmental friendly.

5.samples free.

6.Customized designs are acceptable, small order are accepted .

7. timely delivery

8. 100% tested before shipment

   Our  factory is specialized in prodcing high and low frequency electronic elements and wires and cables,including Multimeter ,F connector,TV plugs and jacks ,splitters, matching transformers,RCA  plugs and jacks, Phone plugs and jacks,DC plugs,AC plugs ,AC sockers ,AC adaptors, banana plugs ,banana  jacks, bingding post ,audio adaptor  , power cable, computer cable ,audio and video  cable and so on .Our products is not only sold in China but also exported to Europe, America, Russia, Singapore, Malaysia and other countries in the world. Our products are popularly sold and own a high reputation.

With the principal of "Good promise, high quality", we provide every customer with the best quality products and perfect service.

We warmly welcome you to establish a business with us, and we appreciate every advice from you. Hoping to get mutual benefit together with you!
