Specifications
Anti-interference single channel passive utp video balun1.Built-in PCB
2.right angle
3.anti-interference

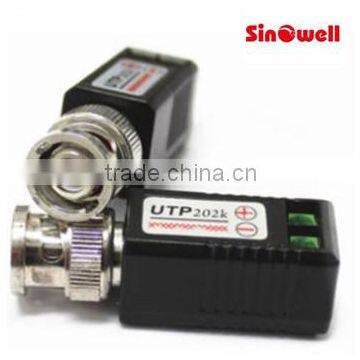

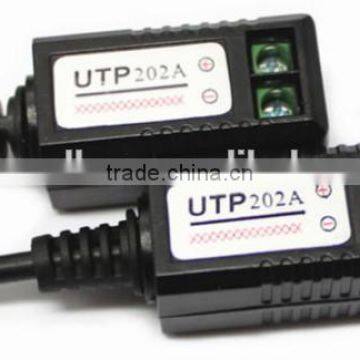

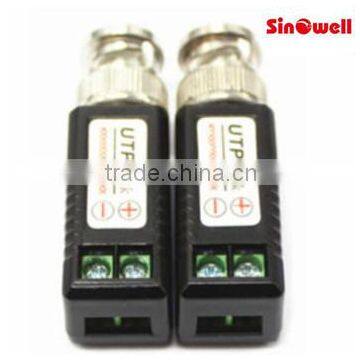

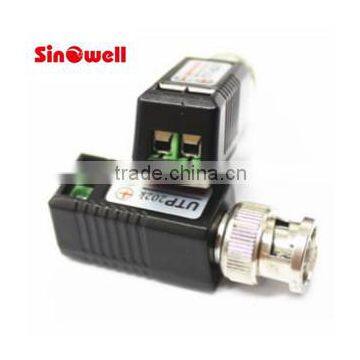

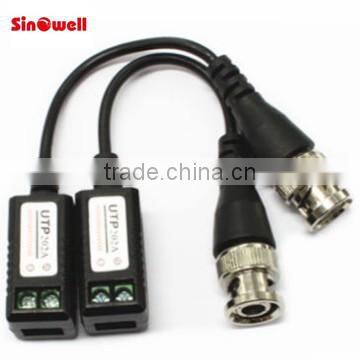

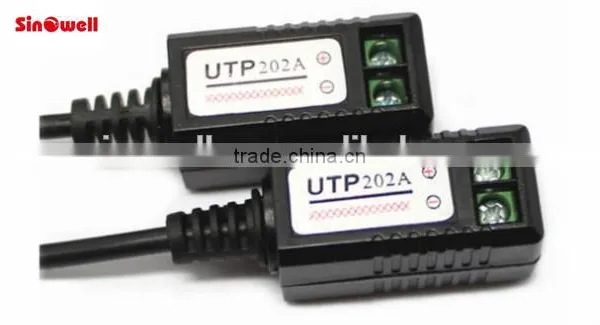

1. Single channel passive UTP Video Transceiver
2. High performance video transmitting
3. Built-in PCB, lightning protection , anti-interference ,Connector of balun
4. One of the most classic and widely used single channel passive video balun. It's compact and easy for installation. Technically, it has a high quality zinc alloy BNC and built-intransient suppression protection. Which not only ensure a sound video transmitting quality but also can better protect your valued CCTV equipment.
Features
1.Video transmission via UTP CAT5 cale
2.10-20% wire cost saved.
3.Full-motion CCTV video at distances up to 1000-2000ft (300-900M)
4.Outstanding interference rejection and transient protection.
5.Male BNC allows connection directly to the camera or DVR.
6.No power required, or have power required
Frequency response: DC to 8 MHZ attenuation:0.5dBtyp
CMRR:60 dB impedance:BNC:75ohms,terminal:100ohms
Coax:75 OHMS twisted pair:100 ohms
Operating:-10°C to + 70°C storage:-30°C to +70°C
Humidity:0 to 95% wire type:unshieded cat-5 or above twisted pair wire
Unshielded Twisted Pair:24-16 AWG category type:5 or better
DC Loop resistance: 52 ohms per 1000-6000ft differential capacitance:19pF/ft max
Material:ABS plastic
packaging:bulk,polybag
shipping:By sea or air
1. 24-hour online service guarantees timely reply about the details of any of our products .
2.High quality and best price promise profitable products and long relationship.
3. Supply the packing in accordance with your requirements. .
4.all of our products are high tech ,they are environmental friendly.
5.samples free.
6.Customized designs are acceptable, small order are accepted .
7. timely delivery
8. 100% tested before shipment

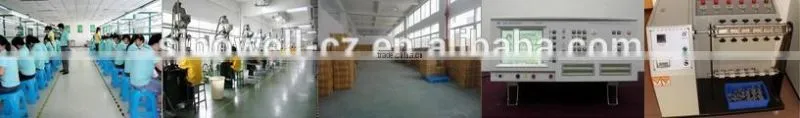

Our factory is specialized in prodcing high and low frequency electronic elements and wires and cables,including Multimeter ,F connector,TV plugs and jacks ,splitters, matching transformers,RCA plugs and jacks, Phone plugs and jacks,DC plugs,AC plugs ,AC sockers ,AC adaptors, banana plugs ,banana jacks, bingding post ,audio adaptor , power cable, computer cable ,audio and video cable and so on .Our products is not only sold in China but also exported to Europe, America, Russia, Singapore, Malaysia and other countries in the world. Our products are popularly sold and own a high reputation.
With the principal of "Good promise, high quality", we provide every customer with the best quality products and perfect service.
We warmly welcome you to establish a business with us, and we appreciate every advice from you. Hoping to get mutual benefit together with you!
