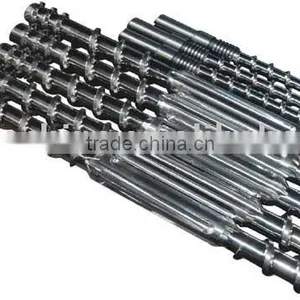

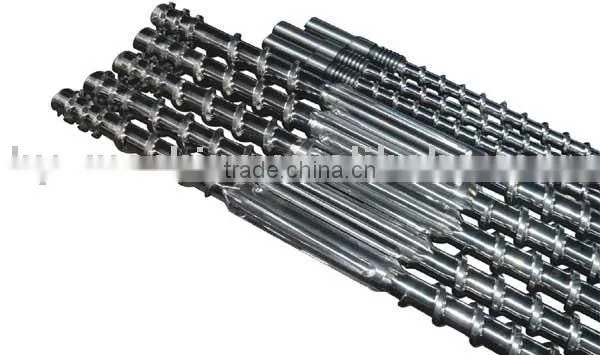

Single screw with kinds mixer design for extruder

Specifications

Single screw with kinds mixer design for extruder machine

Single screw and barrel for extruders
Size:
Screw Diameter:Φ20-Φ500mm
Maximun screw length: 10000mm
Barrel inner bore diameter: Φ500mm



TECHNICAL DATA
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Suitable plastic material: PP,PE,ABS,AS,PS etc.
Material:38CrMoALA
