Sinlge Screw and Barrel for Plastic Machine With Barrel Part

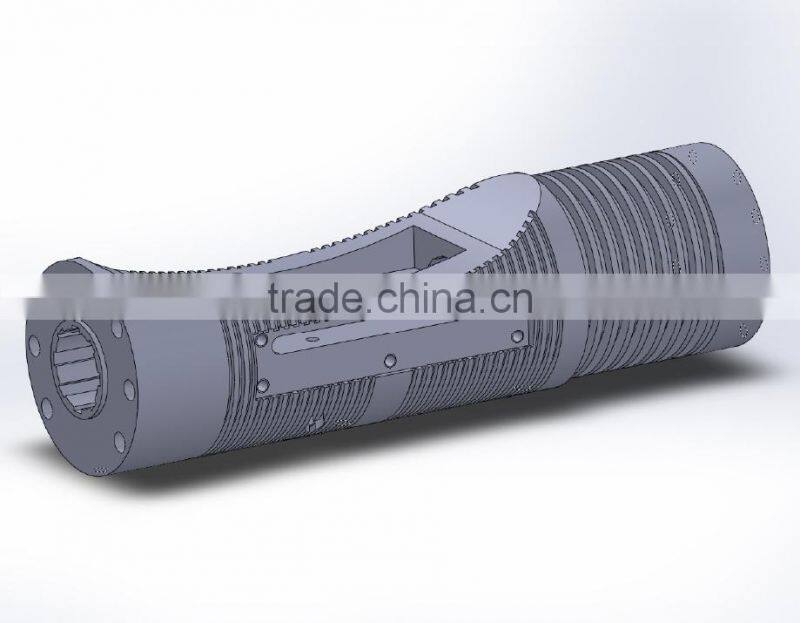

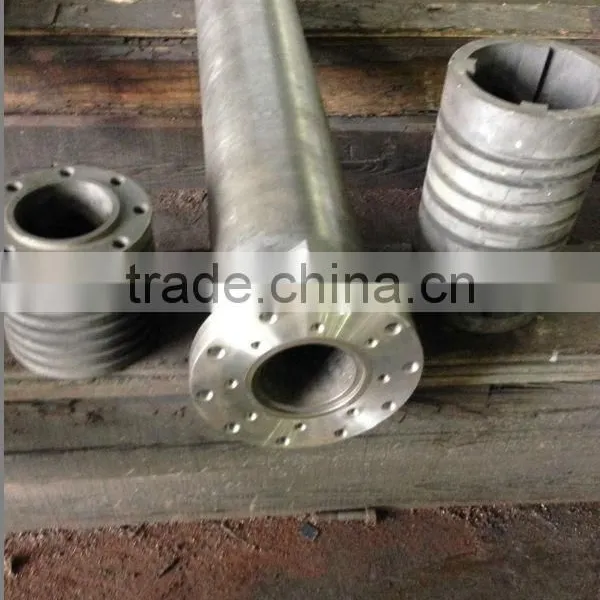

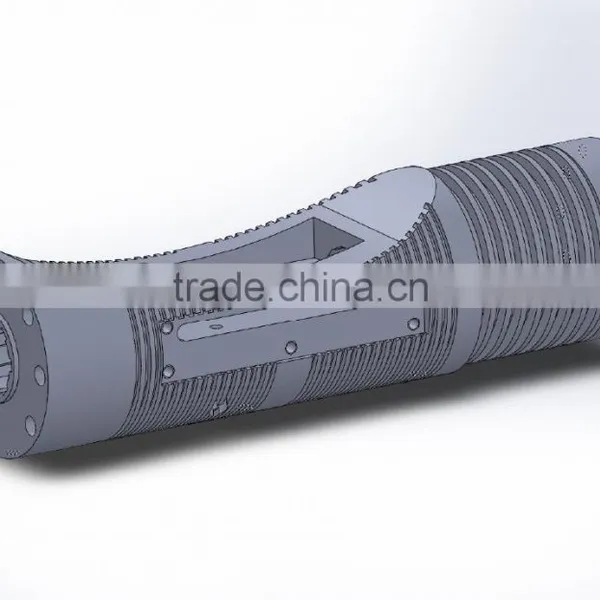

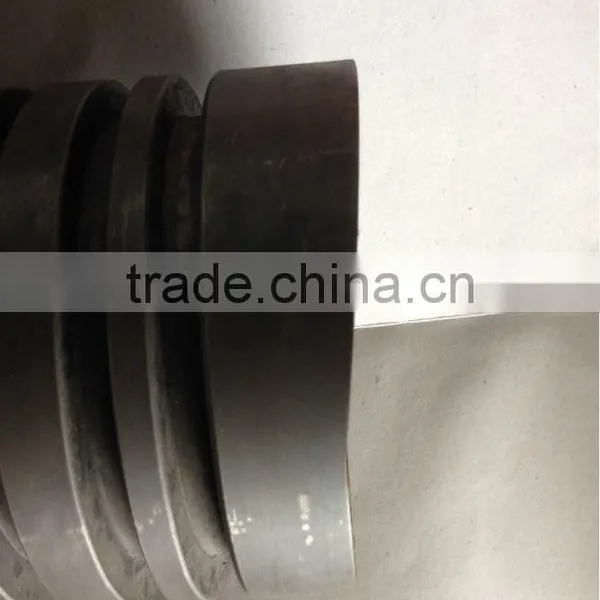

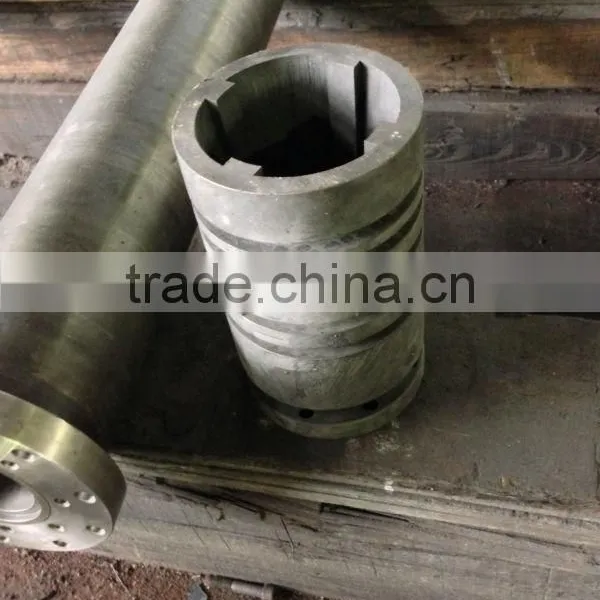

Barrel part

Size:
Screw Diameter:Φ20-Φ500mm
Maximun screw length: 10000mm
Barrel inner bore diameter: Φ500mm

TECHNICAL DATA
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Fully hard screw(wear-proof, corrosion-proof, heatproof, high-pressure proof and high-speed proof):HPT1 HPT2 HPT3
Suitable plastic material: PP,PE,ABS,AS,PS etc.
Material: SACM-645, SCM440, 38CrMoALA

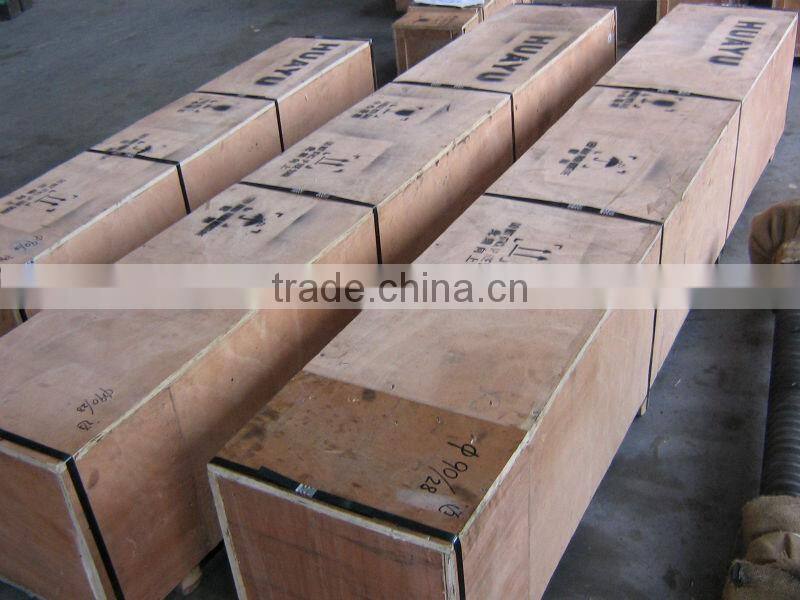

  Woodencases with our company marks

    Zhoushan Huayu Machinery Manufacturing Plant

Add: No.69 Haifu Outer Pond, Yancang Street, Dinghai, Zhoushan,Zhejiang, China 316000

Tel: +86 (580) 8803-886   +86 (580) 8805-118   Fax: +86 (580) 8803-885
Mobile phone: +86  135 7563 8315

ZHOUSHAN HUAYU MACHINERY MANUFACTURING PLANT is one of the largest domestic manufacturing enterprise that specializes in researching, designing and manufacturing high precise bimetallic and nitrided screws and barrels, as well as screw assembly parts, barrel assembly parts, various oil cylinders and air cylinders. We provide products for manufacturers of plastic injection, extrusion, chemical fiber, cables and so on.

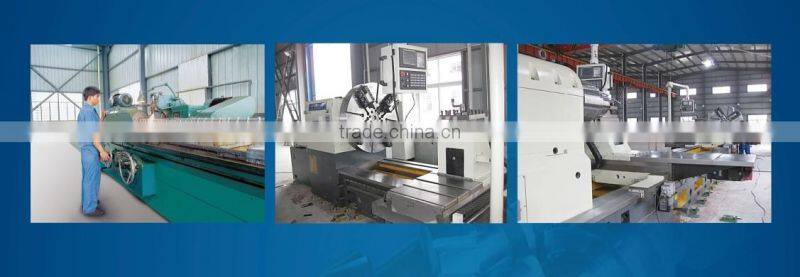

After more than twenty years of constant pioneering efforts, we have enlarged our production scale yearly. We possess high technology advanced processing equipment from Germany. Furthermore, we have improved our production ability of 600 sets of twin-screws and barrels for conical and parallel, and 8,000 sets of single-screws and barrels. We have passed the ISO 9001:2000 International Quality System Identification. Therefore, all our products are guaranteed to be of perfect quality. Checkingthe quality is the most important stage in our production processing, before the goods are delivered to our customers. In order to carry out our target of achieving zero defects and 100% quality, strict quality checks are conducted at every stage of production,from the designing, manufacturing and up to the final stage of packaging, we ensure that only goods of high quality are delivered to our customers. As far as the quality of our products and services are concerned, our company won the approval of our customers and established a great reputation for our quality products.

What is screw and barrel processing production?

Our Screw and Barrel processing production:

CustomerOrder--ProductDesign(CustomerDrawing)—ProductionFlowArrangement—Material Procurement—Hardening&Tempering—Drilling—RoughTurning—RoughThread Rolling(AlloySprayWelding)—Alignment—FineThreadRolling—Mixing—Alignment—HighFrequencyTreatment—Alignment—Polishing—Grinding—7 daysNitridingTreatment—Acid Piclking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping!
