Cincinnati conical twin screw for PVC extruder (CMT35,55,58,65,80,92)

Specifications

Cincinnati CMT35/75,55/113,58/125,65/132,80/172,92/188 according to customers demand to make the conical twin screw and barr





We can according to the customer demand to make the conical twin screw and barrel.

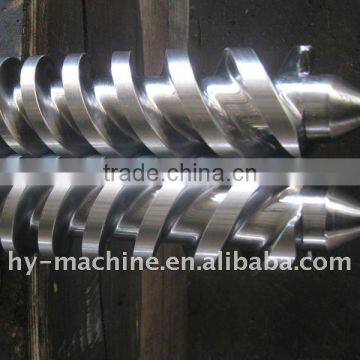

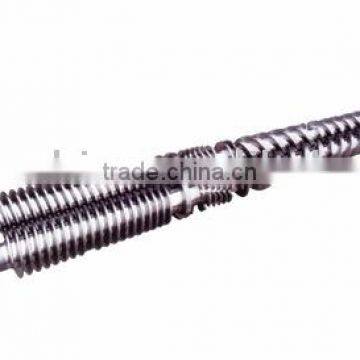

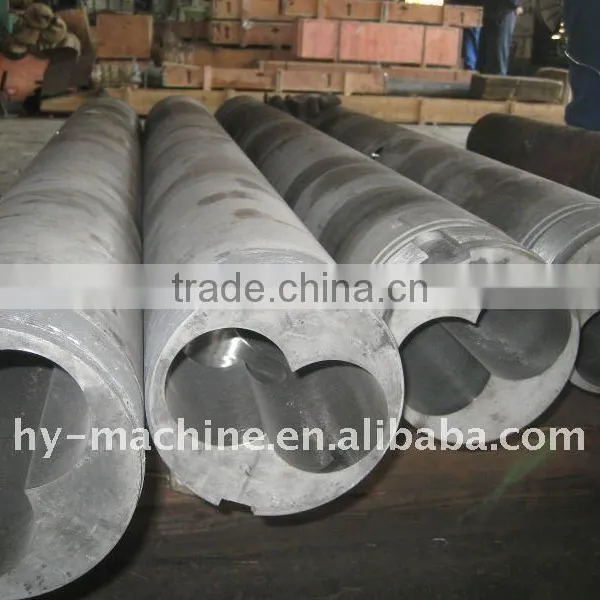

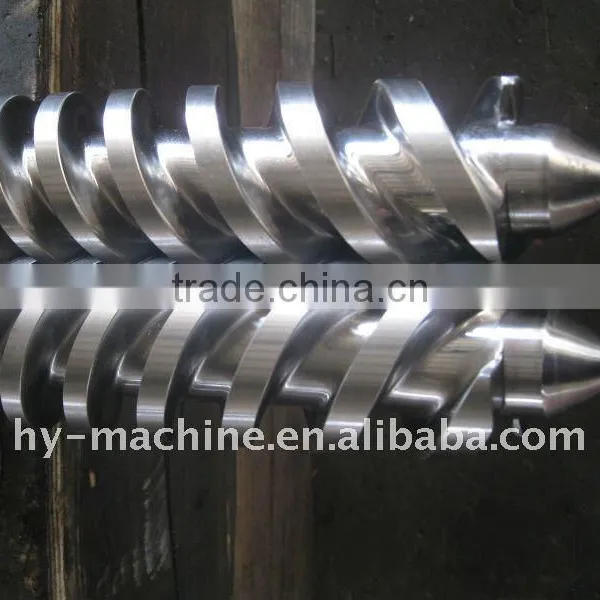

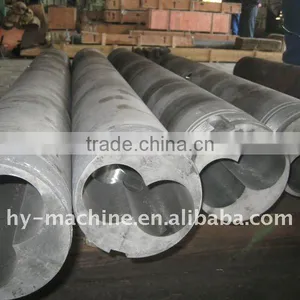

Conical Twin Screw and barrel



Size:



Φ 35/75, Φ 45/90, Φ 45/100, Φ 50/105, Φ 51/105, Φ 53/107, Φ 55/110, Φ 60/125,  Φ 65/120, Φ 65/132, Φ 70/140, Φ 75/150,  Φ 80/143, Φ 80/156, Φ 92/188, Φ 95/191, Φ 105/191, Φ 100/200



TECHNICAL DATA
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material: Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made from imported anti-wear alloy can be improvde abrasion performance.



Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares









Conical screw and barrel

1:High quality alloy steel 38CrMoAlA
2:Factory cost price
3:Best service
4:ISO9001:2008 ,SGS, BV





What is screw and barrel processing production?

Our Screw and Barrel processing production:

CustomerOrder--ProductDesign(CustomerDrawing)—ProductionFlowArrangement—Material Procurement—Hardening&Tempering—Drilling—RoughTurning—RoughThread Rolling(AlloySprayWelding)—Alignment—FineThreadRolling—Mixing—Alignment—HighFrequencyTreatment—Alignment—Polishing—Grinding—7 daysNitridingTreatment—Acid Piclking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping!
