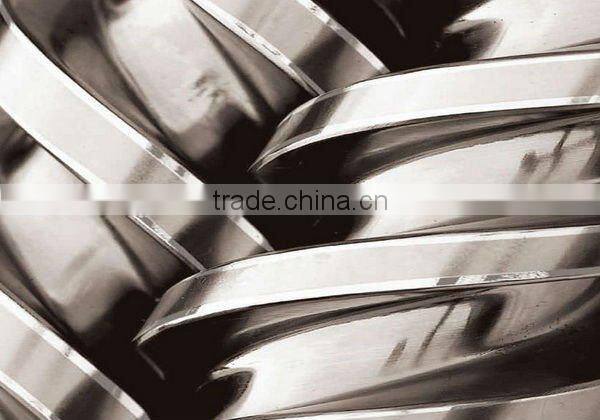

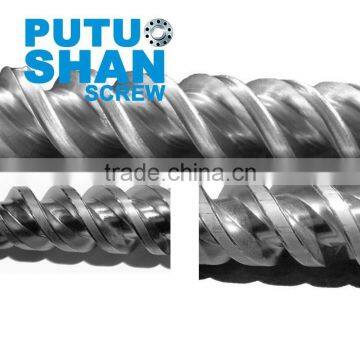

The bimetallic screw for extruder
The bimetallic Abraasion resistant and corrosion resistant
Material:High quality alloy steel:38CrMoAlA
Screws bimetallic mateial satellit 12
Bimetallic Parrelle Twin Screws
The bimetallic Abraasion resistant and corrosion resistant
Material:High quality alloy steel:38CrMoAlA
Screws bimetallic mateial satellit 12
Size
Ratio of length to diameter: L/D=16 ~ 35
TECHNICAL DATA
1)Heat-treatment
2)Nitriding treatment
3)Bimetallic-alloy coating spraying
4)Hard-chrom plating
Depth of nitration case:0.4-0.7mm
Hardness of nitration:HV900-1060 (HRc56°-65°)
Roughness of the surface:Ra 0.4μm
Screw straightness: 0.015mm/m
Chrome plating thickness: 0.01-0.1mm
Bimetal coating thickness 1.5-2.0mm
Material:
Base material 38CrMoAlA, Welded inlay on the flight, prolong life of screw. Easy wearing parts of barrel feed inlet made from imported anti-wear alloy can be improvde abrasion performance.
Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO and AMUT model spares

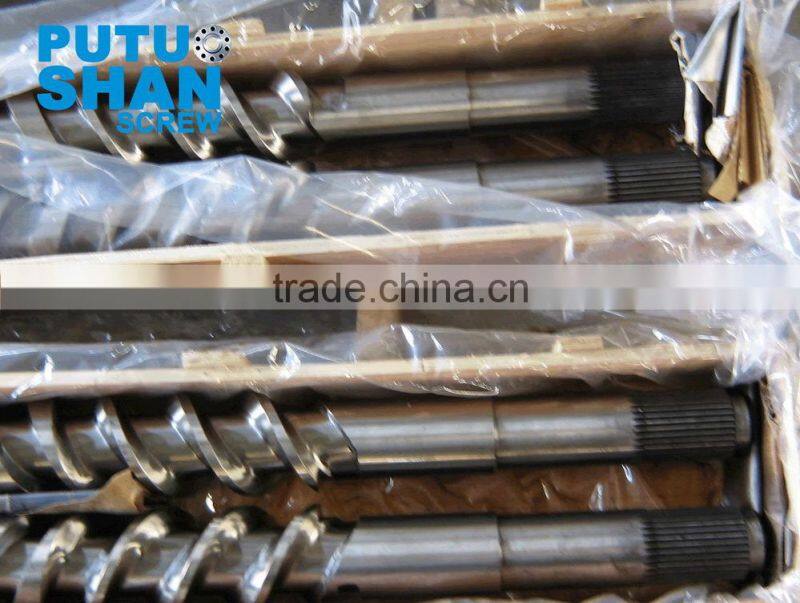

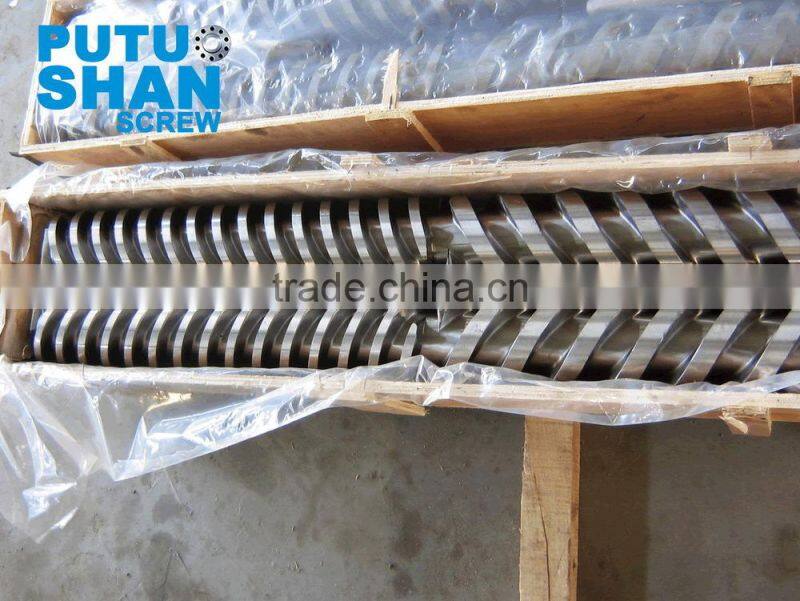

Bimetallic Parallel twin screws
1)High quality steel 38CrMoALA
2)Factory cost price
3)ISO9001:2008, SGS
4)Fast delivery best service
| Our Forwarder | According to customers demands to choose the forwarder |
| Transport | By Sea; By Air(the cost will get agreement with customers) |
| Seaport | Ningbo or Shanghai |
Woodencases with our company marks
| Design Service | Screw and barrel Design According with Capacity and Raw Material |
| After Service | 24 Hours After-sales |
Zhoushan Huayu Machinery Manufacturing Plant
Add: No.69 Haifu Outer Pond, Yancang Street, Dinghai, Zhoushan,Zhejiang, China 316000
Tel: +86 (580) 8803-886 +86 (580) 8805-118 Fax: +86 (580) 8803-885
Mobile phone: +86 135 7563 8315
ZHOUSHAN HUAYU MACHINERY MANUFACTURING PLANT is one of the largest domestic manufacturing enterprise that specializes in researching, designing and manufacturing high precise bimetallic and nitrided screws and barrels, as well as screw assembly parts, barrel assembly parts, various oil cylinders and air cylinders. We provide products for manufacturers of plastic injection, extrusion, chemical fiber, cables and so on.
After more than twenty years of constant pioneering efforts, we have enlarged our production scale yearly. We possess high technology advanced processing equipment from Germany. Furthermore, we have improved our production ability of 600 sets of twin-screws and barrels for conical and parallel, and 8,000 sets of single-screws and barrels. We have passed the ISO 9001:2000 International Quality System Identification. Therefore, all our products are guaranteed to be of perfect quality. Checkingthe quality is the most important stage in our production processing, before the goods are delivered to our customers. In order to carry out our target of achieving zero defects and 100% quality, strict quality checks are conducted at every stage of production,from the designing, manufacturing and up to the final stage of packaging, we ensure that only goods of high quality are delivered to our customers. As far as the quality of our products and services are concerned, our company won the approval of our customers and established a great reputation for our quality products.
What is screw and barrel processing production?
Our Screw and Barrel processing production:
CustomerOrder--ProductDesign(CustomerDrawing)—ProductionFlowArrangement—Material Procurement—Hardening&Tempering—Drilling—RoughTurning—RoughThread Rolling(AlloySprayWelding)—Alignment—FineThreadRolling—Mixing—Alignment—HighFrequencyTreatment—Alignment—Polishing—Grinding—7 daysNitridingTreatment—Acid Piclking—Polishing—Chrome Plating—O.D.Grinding—Packaging&Shipping!

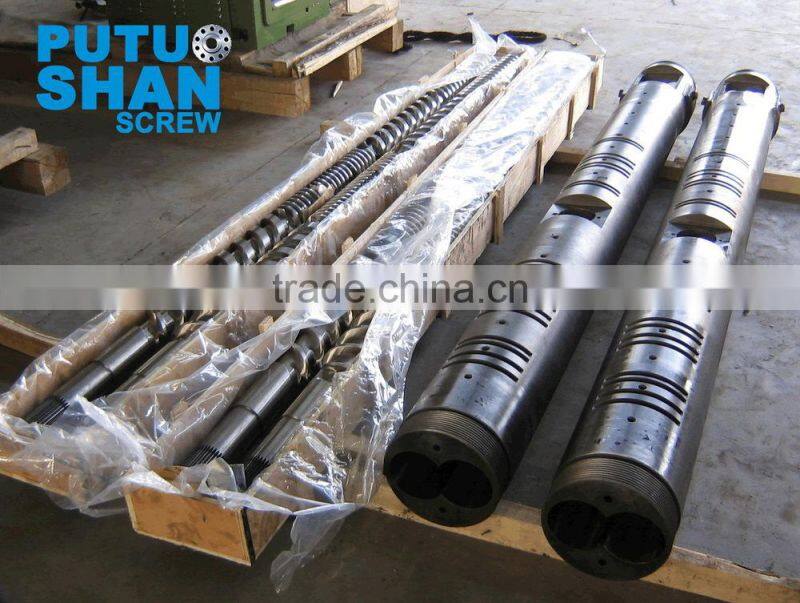

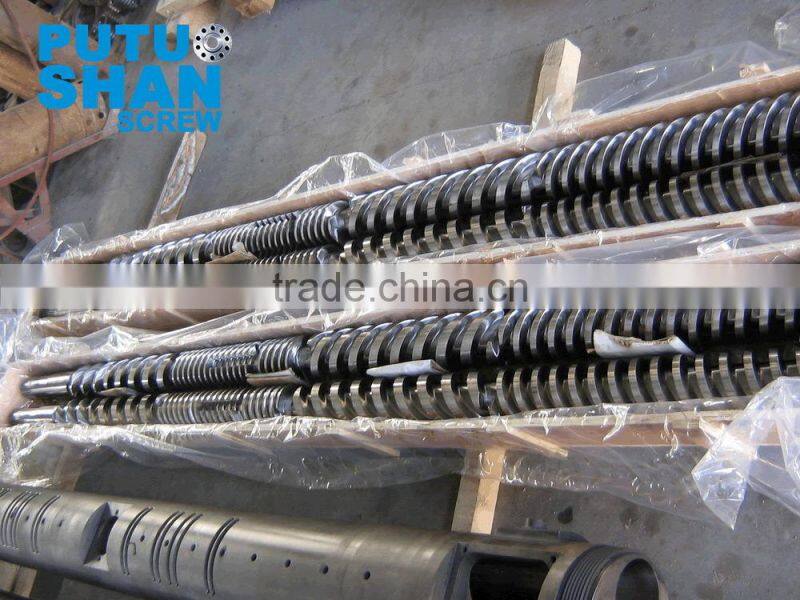

Bimetallic screw and barrel
For its excellent anti-erosion and anti-abrasion characters,the bimetallic screw
and barrels are widely used in the extrusion lines.With HVOF high speed spraying
equipment,spray a layer of metal which melt on the screw surface;a melt-cast
method is adopted to get bimetallic barrel,which could conform its precise formation.
